Industrial Crushing Machinery

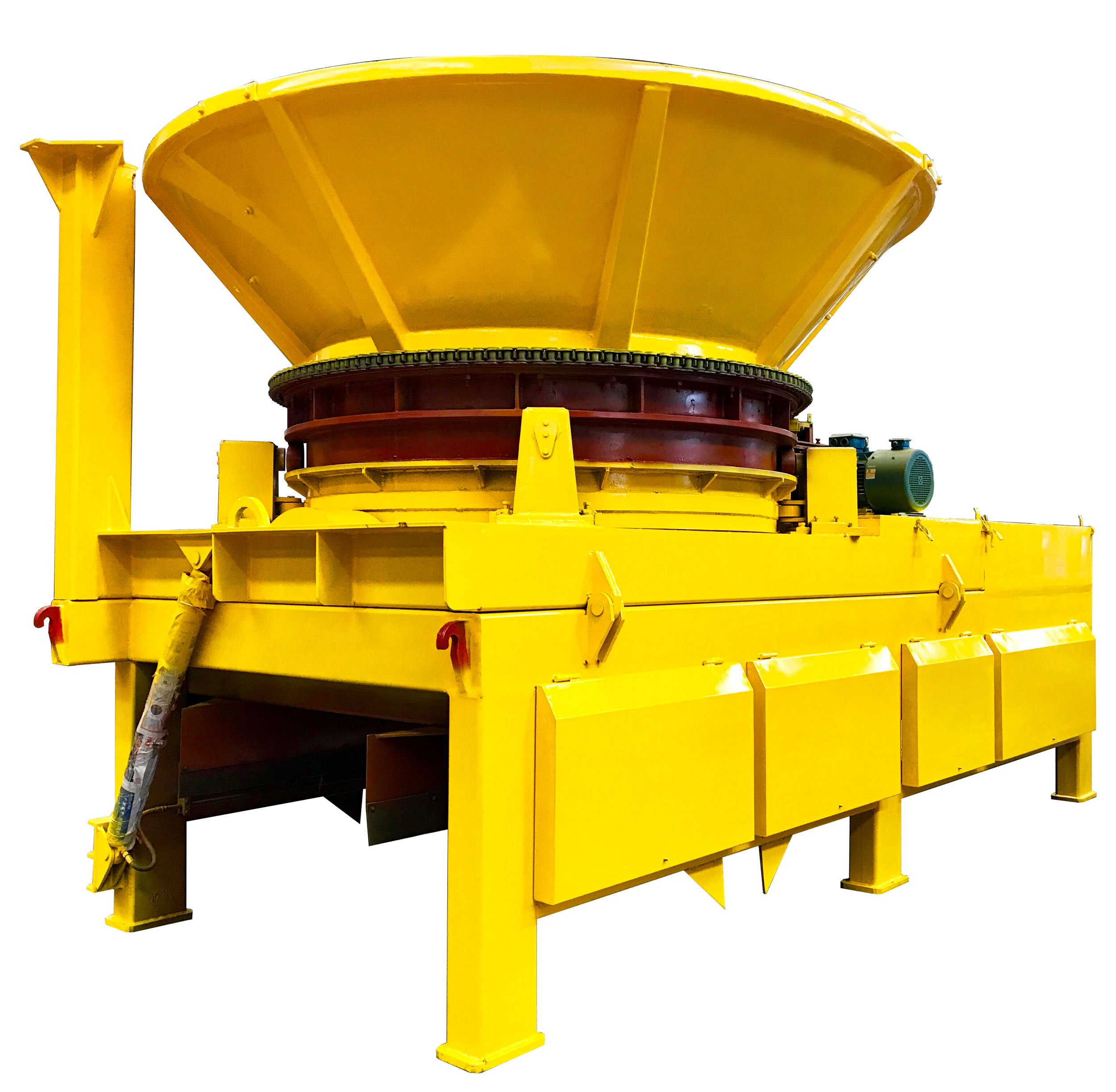

This industrial machinery is designed for crushing various materials. It features a large hopper for material input, a heavy-duty crushing mechanism, and a sturdy frame for stability.
Technical Specifications
Product Overview
Industrial Crushing Machinery
This industrial crushing machinery is engineered for stability, durability, and high-efficiency performance. Featuring a hydraulic turnover system for the work bin, it is specifically designed for biomass factories to process raw materials like plancon and packed straw. Its robust structure ensures reliable operation and straightforward maintenance in demanding industrial environments.
Performance Metrics
Capacity
10 t/h
Average Capacity
9 t
Total Weight
Technical Specifications
- Blade Diameter
- 650 mm
- Speed
- 960 r/m
- Blade Number
- 6
- Max Material Diameter
- 1400 mm
Power Configuration
Power Requirements
| Component | Power (kW) |
|---|---|
| Main Motor | 132 |
| Oil System | 3 |
| Exit System | 5.5 |
| Workbin | 7.5 |
Dimensions and Logistics
- Machine Dimensions
- 4650 x 2900 x 3500 mm
- Conveyor Belt Length
- 10 m
