Industrial Cooling Machine

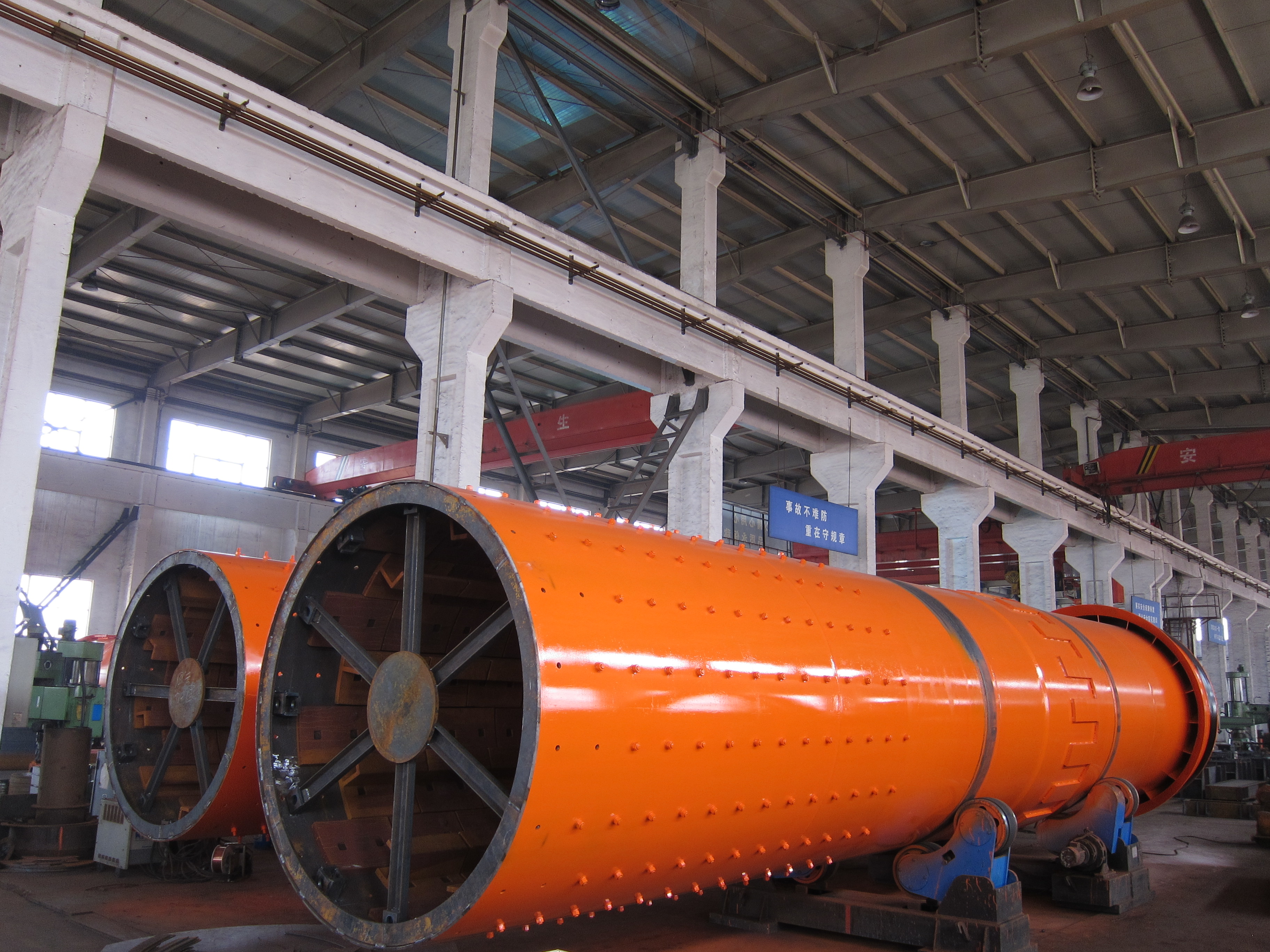

This industrial cooling machine is designed for heavy-duty cooling applications. It features a cylindrical body with bolted construction and support structures for mobility.
Technical Specifications
Product Overview
High-Efficiency Industrial Rotary Cooler
This industrial cooling machine is a critical component in rotary kiln systems, designed to efficiently lower clinker temperatures from 1000-1300°C down to below 200°C. Utilizing a rotary cylinder design with specialized winnowing boards, it ensures optimal heat exchange and improved material grinding properties. It is highly versatile, serving diverse industries including cement, silicate products, and refractory materials.
Technical Specifications
Cylinder Dimensions
1.5 m
Diameter
12 m
Length
5 %
Slope
Performance Metrics
| Metric | Range |
|---|---|
| Production Capacity | 2-75 t/h |
| Main Motor Power | 15-315 kw |
| Total Weight | 28-576 t |
Applications
- Suitable Industries
- CementSilicate ProductsNew Building MaterialsRefractory MaterialsGlass Ceramics
Design & Construction
Key Mechanical Features
- Rotary cylinder with winnowing board system
- Retaining wheel device for axial sliding prevention
- Transmission system via large ring of teeth
- Adjustable inclination and rotating speed
- Optimized hoisting plate arrangement for heat exchange
