Industrial Coil Nailer
This industrial coil nailer is designed for high-volume fastening applications. It is compatible with 15-degree wire collated coil nails and features an adjustable depth drive for precise nail placement.
Technical Specifications
Product Overview
Industrial-Grade Pneumatic Coil Nailer

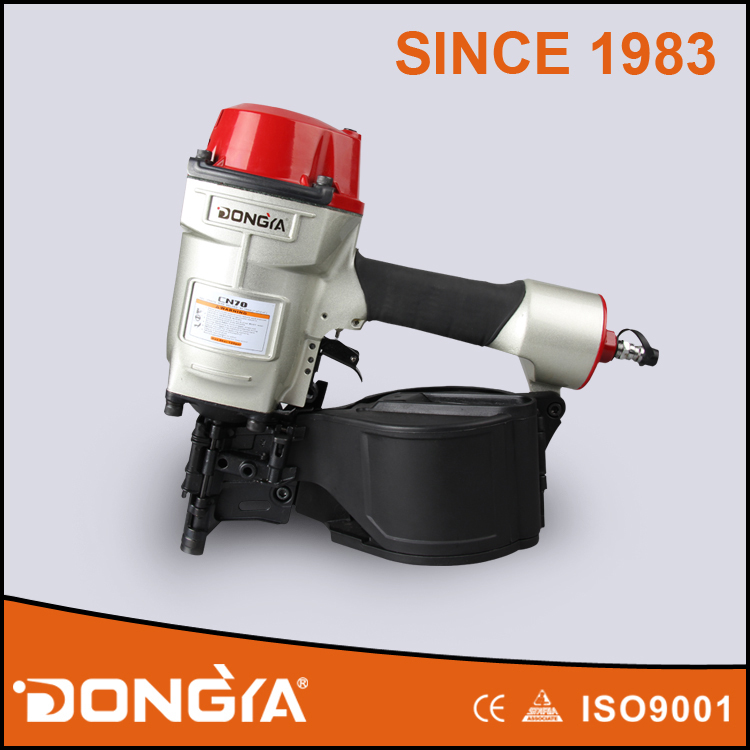

The CN70 is a high-performance industrial coil nailer engineered for demanding applications like pallet manufacturing, crating, and heavy-duty construction. Featuring a durable aluminum alloy die-cast body and a high-capacity PC magazine, it is designed for longevity with a tested lifespan of 500,000 working cycles. This versatile tool supports both contact and sequential firing modes, making it an ideal choice for professional buyers seeking power and reliability in hardwood fastening.
Performance Metrics
Performance Highlights
500,000 times
Working Cycles
15 °
Collation Angle
360 °
Exhaust Direction
Fastener Specifications
Compatible Nails
| Attribute | Metric Range | Imperial Range |
|---|---|---|
| Nail Length | 45mm - 70mm | 1-3/4" - 2-3/4" |
| Nail Diameter | 2.3mm - 2.9mm | 0.092" - 0.113" |
| Nail Spacing | 7.8mm - 8.0mm | 0.307" - 0.315" |
Technical Parameters
- Dimensions
- 306 x 128 x 315 mm
- Net Weight
- 3.5 kg
- Operating Pressure
- 5-8.3 bar (70-120 psi)

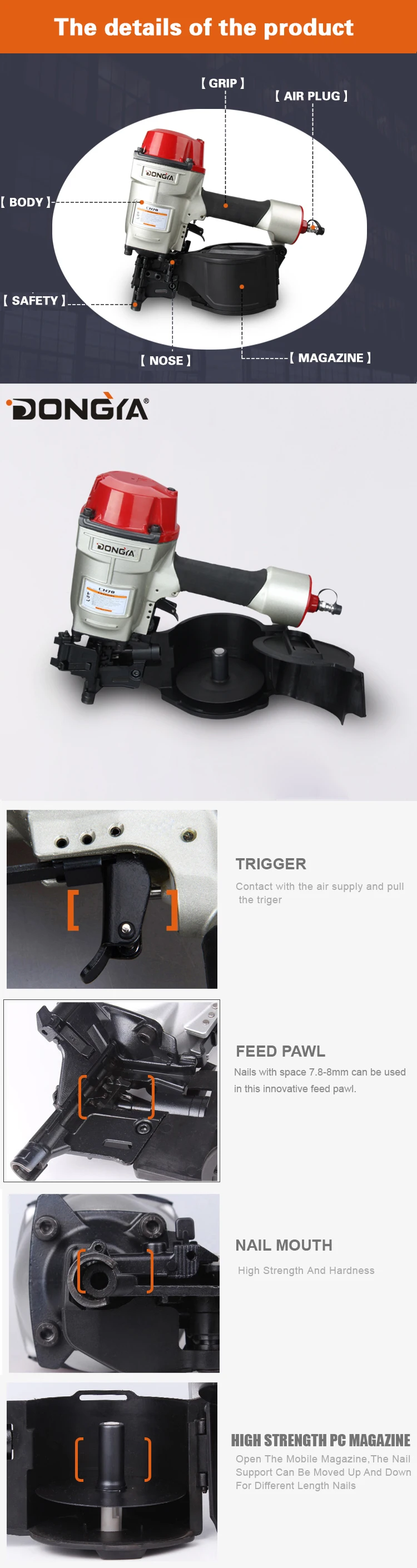

Key Features
Core Features
- 360° adjustable exhaust direction
- Contact mode safety system
- Sequential mode available via trigger change
- Lightweight die-cast aluminum alloy body
- Side loading system for quick refills
- Easy length adjustment design
- High-strength PC magazine with mobile support
- Hardened high-strength nail mouth
Build Quality
- Durability & Standards
- Industrial GradeHardwood CapableISO 9001Taiwan-Engineered PartsHigh-Strength PC Magazine
Maintenance
- Serviceability
- Yes
