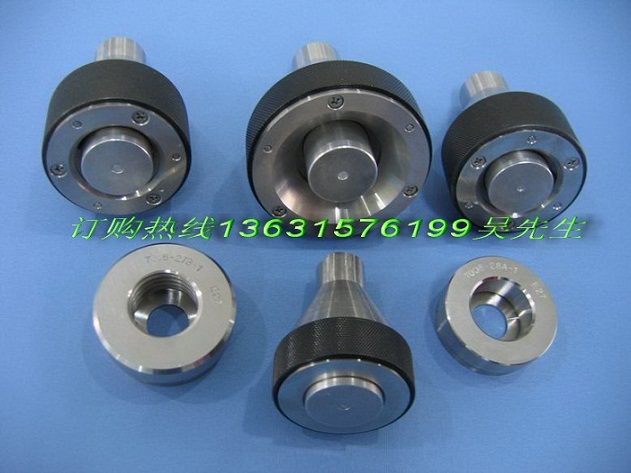

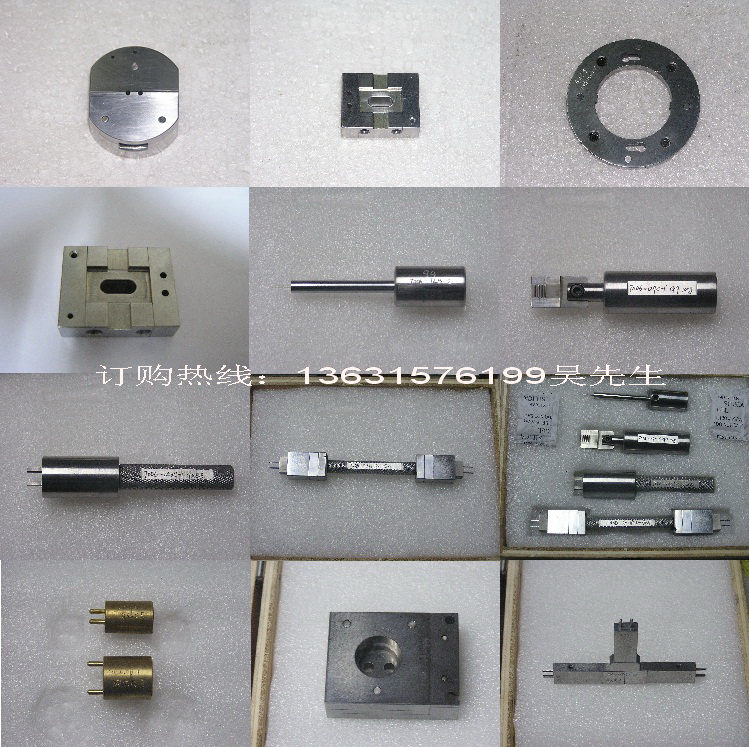

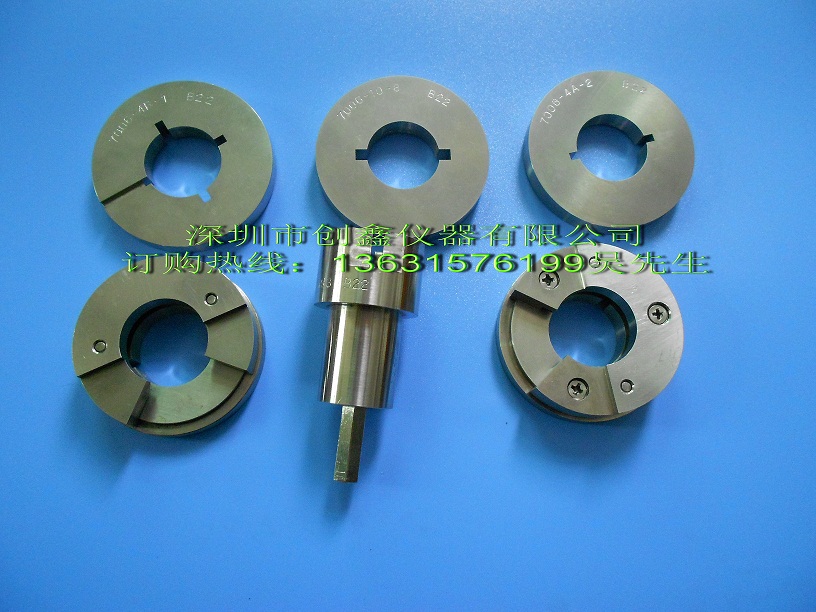

IEC60061 Standard Lamps and Lanterns Gauge Set
This gauge series is designed to meet IEC60061 standards for lamps and lanterns. It ensures accurate measurement and compatibility in lamp and lantern manufacturing.
Technical Specifications
Product Overview
Precision Gauge Series for Lighting Standards
This comprehensive set of lamps and lanterns gauges is engineered to meet rigorous international and national standards, including IEC60061-1, IEC60061-2, IEC60061-3, and related GB standards. Designed for high-precision quality control and compliance testing, these tools are crafted from die steel to ensure durability and measurement accuracy. This series is essential for manufacturers, testing laboratories, and quality control departments needing to verify lamp cap dimensions, tolerances, and functional parameters.
Standards Compliance
- Applicable Standards
- IEC60061-1IEC60061-2IEC60061-3GB17935GB17936IEC61184GB1312
Technical Specifications
Included Gauge Functionality
- Go Gauges
- Not-Go Gauges
- Contact-Making Gauges
- Against Accidental Contact Gauges
- Construction Material
- High-precision die steel
Detailed Gauge List
Gauge Inventory Table
| Cap Type | Standard Reference |
|---|---|
| E5 | 7006-25F-1 / 25D-1 / 25G-1 |
| E7 | 7006-25-7 |
| E10/E11/12 | 7006-25-7 / 6A-1 / 26-4 |
| E14 | 7006-25-7 / 30-2 / 26-4 / 30A-1 / 31-4 |
| E17 | 7006-25H-1 / 26E-1 |
| E27 | 7006-27C-1 |
