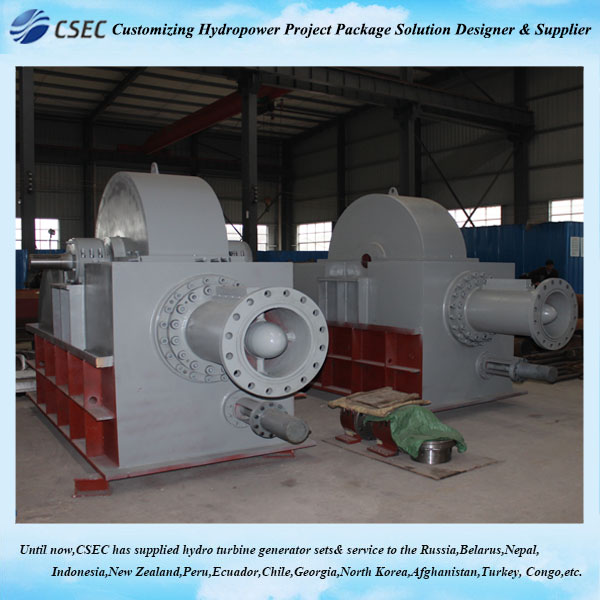

Hydroelectric Pelton Turbine Generator
This hydroelectric Pelton turbine generator converts water power into electricity. It is suitable for power engineering projects requiring efficient and reliable energy conversion.
Technical Specifications
Product Overview
High-Efficiency Hydroelectric Solutions
This hydroelectric turbine generator is engineered for reliable energy conversion in micro to medium-scale hydropower plants. Designed for durability and performance, these units offer a long operational lifespan and are suitable for a wide range of water head conditions. The system supports comprehensive turnkey solutions, ensuring seamless integration from water intake to power transmission.
Technical Specifications
Output Voltage Options
- 400V
- 3.3kV
- 6.3kV
- 10.5kV
- 13.8kV
- Power Output Range
- 50 kW - 200 MW
- Frequency
- 50Hz60Hz
- Output Type
- AC Three Phase
Performance Data
Working Water Head by Turbine Type
| Turbine Type | Water Head Range |
|---|---|
| Francis | 20 - 500 m |
| Pelton | 40 - 1700 m |
| Kaplan | 2 - 70 m |
| Tubular | 1 - 40 m |
| Turgo | 40 - 250 m |
Reliability & Warranty
Expected Lifespan
30 years
Min Lifespan
50 years
Max Lifespan
- Warranty Period
- 1 year (or more)
