Technical Specifications
Overview
High-Efficiency Hydro Francis Turbine Solutions

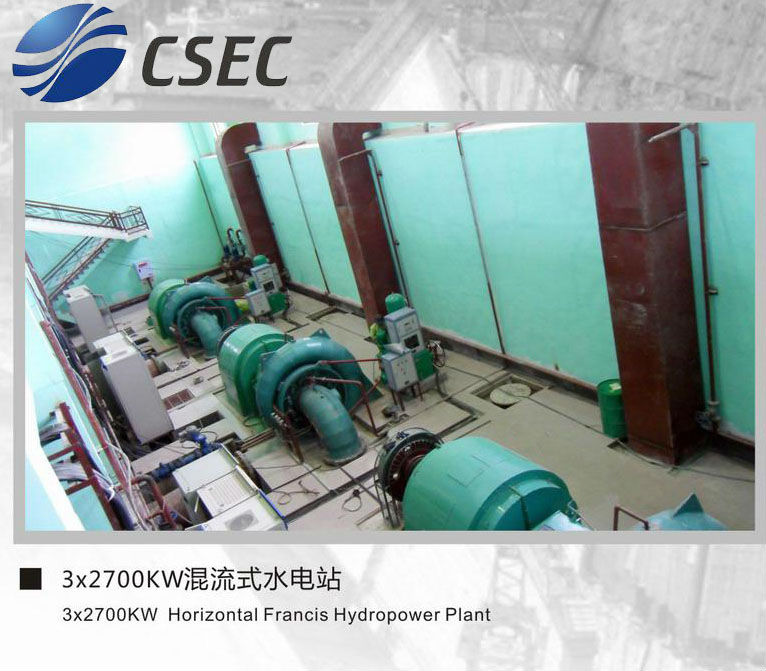

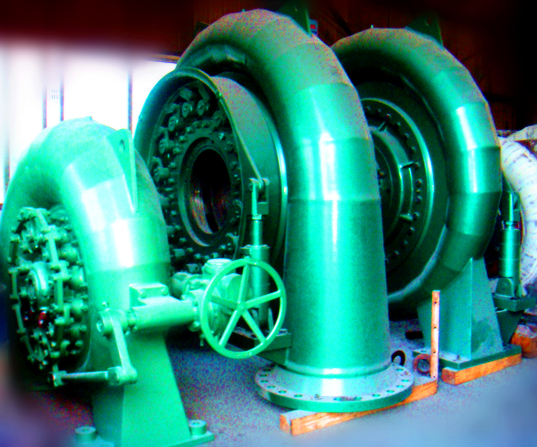

This Francis turbine generator system is a versatile solution for medium-head hydroelectric power plants, offering a broad power range from 50kW up to 200MW. Designed for both new installations and facility upgrades, these units feature a robust horizontal or vertical shaft configuration to maximize energy conversion efficiency. We provide comprehensive package solutions encompassing site investigation, feasibility studies, and full engineering designs for turnkey E&M equipment delivery.
Performance Metrics
Power Output Range
50 kW
Minimum Power
200 MW
Maximum Power
Technical Specifications
Electrical Parameters
| Parameter | Specification |
|---|---|
| Frequency | 50Hz / 60Hz |
| Output Type | AC Three Phase |
| Shaft Orientation | Horizontal or Vertical |
- Available Output Voltages
- 400V3.3KV6.3KV10.5KV13.8KV
Operational Requirements

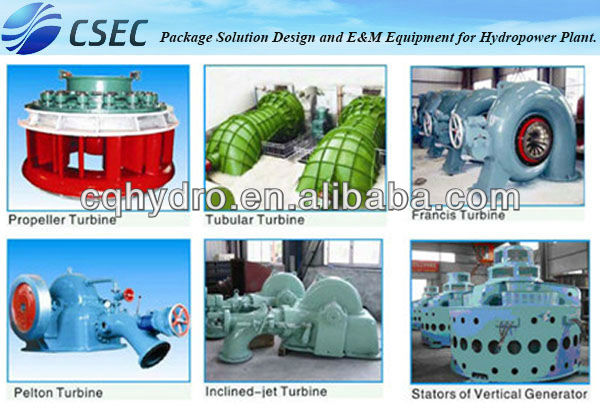

Working Water Head by Turbine Type
| Turbine Type | Water Head Range (m) |
|---|---|
| Francis Turbine | 20m - 500m |
| Pelton Turbine | 40m - 1700m |
| Kaplan Turbine | 2m - 70m |
| Tubular Turbine | 1m - 40m |
| Turgo Turbine | 40m - 250m |
System Components
Main Equipment & Auxiliaries

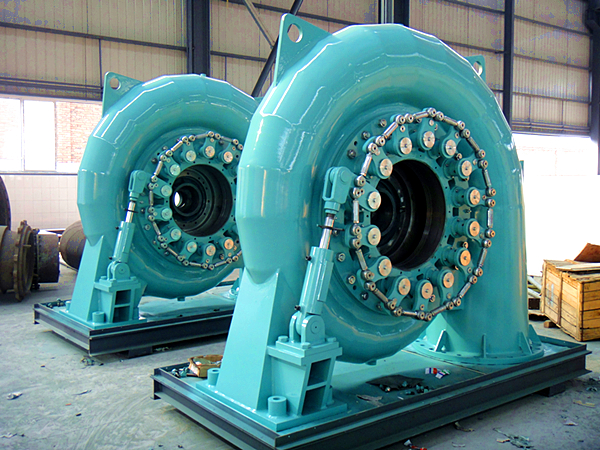

- Spiral Casing
- Runner and Guide Vanes
- Wicket Gate System
- Draft Tube
- Main Powerhouse Auxiliaries
- Primary and Secondary Electrical Equipment
- Trash Defender and Intake Gates
- Penstock and Hoists
Service & Reliability
Service Life & Warranty
30 Years
Min Lifespan
50 Years
Max Lifespan
1 Year
Standard Warranty
- Turnkey Service Scope
- Site InvestigationFeasibility StudyEngineering DesignE&M Equipment SupplyPackage Solution Design
