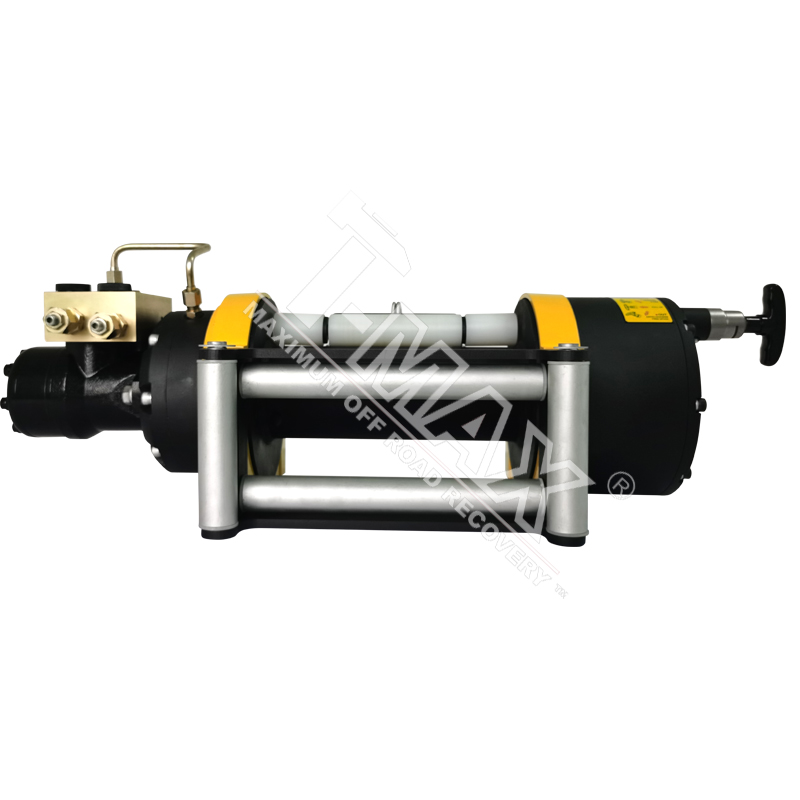

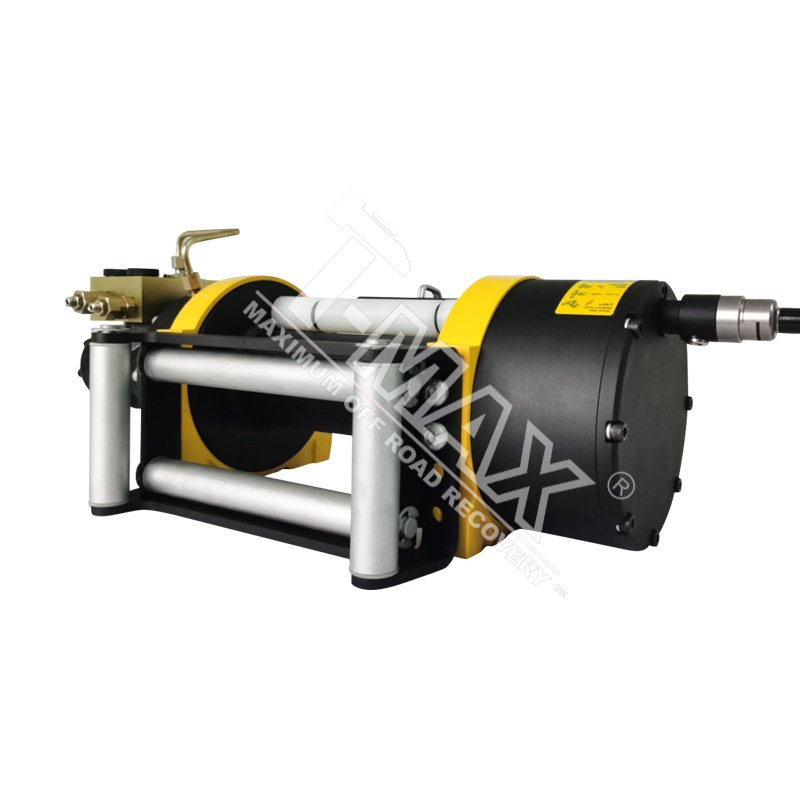

Hydraulic Winch with Planetary Gear and Hydraulic Brake
This hydraulic winch features a planetary gear system and hydraulic brake. It is suitable for heavy-duty off-road recovery and industrial applications.
Technical Specifications
Product Overview
Heavy-Duty Hydraulic Winch Series
This series of high-performance hydraulic winches is engineered for demanding industrial and recovery applications. Featuring a robust planetary gear system and integrated hydraulic braking, these units provide consistent power and safety under load. Available in 9000 lbs and 12000 lbs capacities, they are designed to withstand harsh environments while delivering precise control for off-road recovery and vehicle-mounted operations.
Performance Metrics
Rated Line Pull
9,000 lbs
Model 9000
12,000 lbs
Model 12000
Line Pull by Layer
| Layer | 9000 lbs Model (lbs) | 12000 lbs Model (lbs) |
|---|---|---|
| 1st | 9,000 | 12,000 |
| 2nd | 7,800 | 10,200 |
| 3rd | 6,800 | 8,900 |
| 4th | 6,100 | 7,800 |
Technical Specifications
Hydraulic System
- Rated Pressure: 14 MPa
- Rated Input Flow: 60 L/min
- Motor Displacement: 80 ml/r (9000 model) / 100 ml/r (12000 model)
Mechanical Details
- Gear Ratio: 20.56:1
- Drum Size: φ92 x 218 mm
- Wire Rope Direction: Cable release downwards
- Weight: ≤60 kg
Wire Rope
| Spec | 9000 lbs Model | 12000 lbs Model |
|---|---|---|
| Diameter | φ9.2 mm | φ10.5 mm |
| Length | 30 m | 30 m |
| Breaking Limit | 19000 lbs | 25000 lbs |
Installation
- Mounting & Dimensions
- Bolt Pattern: 254x114.3 mmBolt Pattern: 254x165.1 mm8-M12 Bolts
