Hydraulic Tube Bender
The hydraulic tube bender provides easy operation for bending tubes. Different size dies can be supplied to accommodate various bending angles.
Technical Specifications
Overview

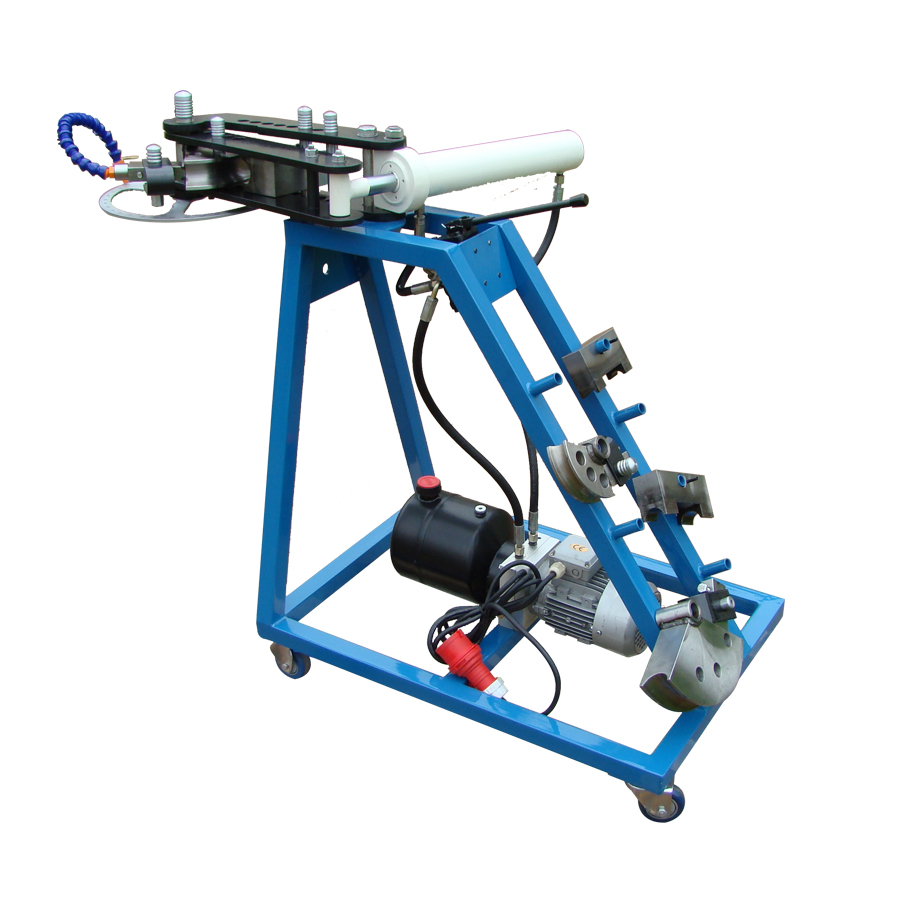

Professional Hydraulic Tube Bender
The HTB-1000 is a robust, portable hydraulic pipe bender designed for efficient metal fabrication. Featuring a user-friendly handle for precise cylinder travel control, this unit operates significantly faster than standard air/hydraulic alternatives. Built with aluminum bronze bushings at pivot points, it offers durability and consistency for demanding construction, automotive, and plumbing applications.
Technical Specifications
- Model
- HTB-1000
- Bending Capacity
- 3/4" - 2"
- Available Angles
- 120°240°
- Net Weight
- 102 kg
- Gross Weight
- 154 kg
- Packing Dimensions
- 140 x 70 x 116 cm
Accessories
Included Dies
- 1" x 3" (120°)
- 1-1/2" x 5" (120°)
- 1-3/4" x 6" (120°)
Optional Round Dies
- 3/4"x3"
- 7/8"x3"
- 1"x3"
- 1-1/8"x3"
- 1-1/4"x4"
- 1-1/2"x4"
- 1-1/2"x5"
- 1-5/8"x5"
- 1-3/4"x6"
- 2"x6"
Optional Square Dies
- 3/4"x3"
- 1"x4"
- 1-1/4"x5"
- 1-1/2"x6"
Performance Features
Key Performance Metrics
3 x faster
Speed Multiplier
Construction Features
PortableAluminum Bronze BushingsHydraulic Cylinder ControlWheeled Frame
