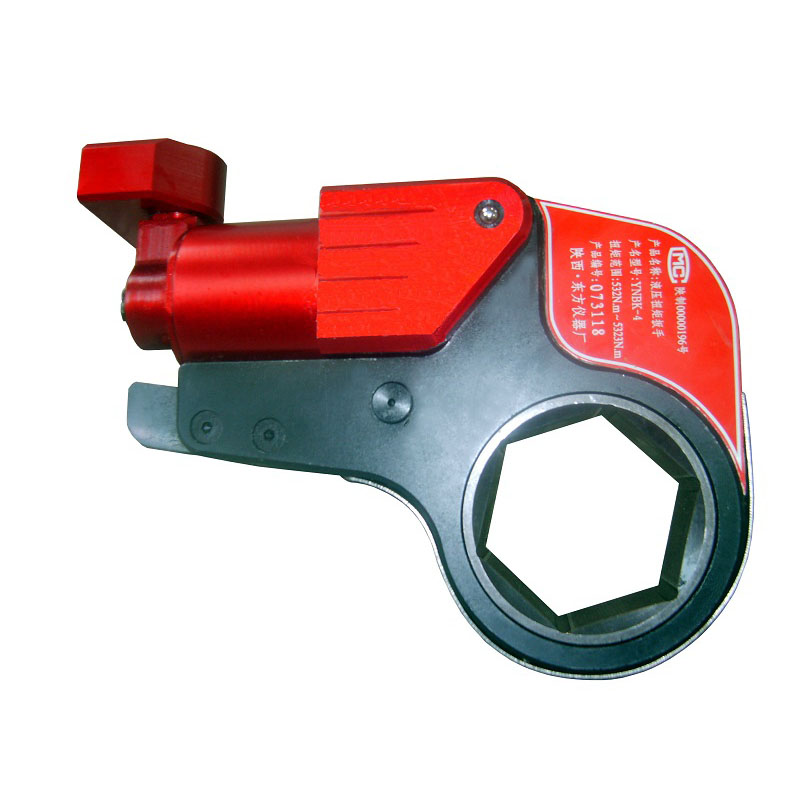

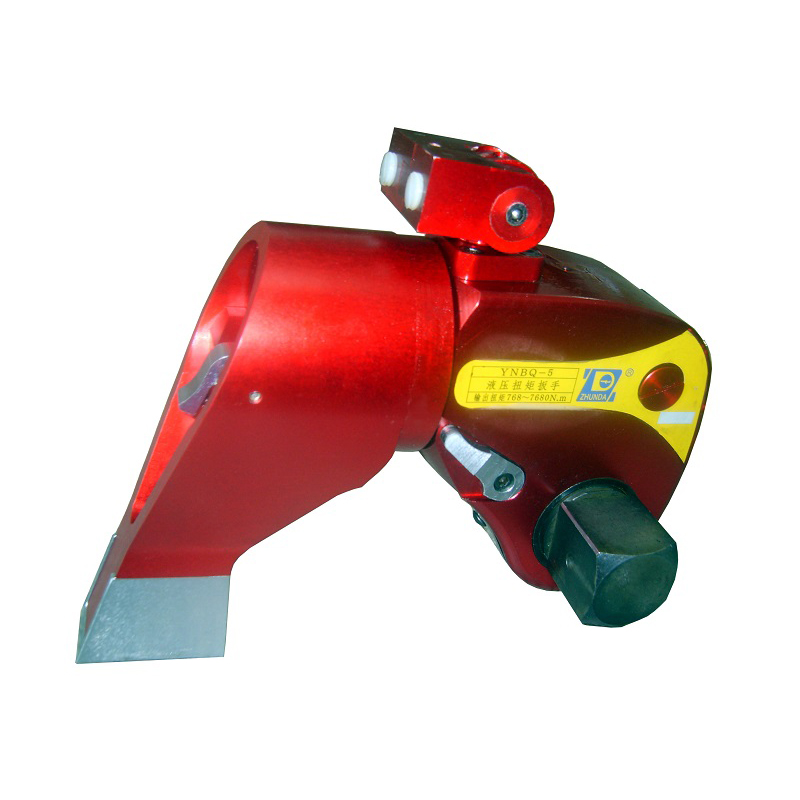

Hydraulic Torque Wrench for Bolting
This hydraulic torque wrench is designed for controlled bolting applications. It delivers precise torque for tightening and loosening nuts and bolts, ensuring secure and reliable connections.
Technical Specifications
Product Overview
High-Performance Hydraulic Torque Wrench
This hydraulic torque wrench is engineered for demanding bolting applications, constructed from high-tech aerospace titanium alloy and high-strength materials. Featuring a 360°×360° revolving oil tube adapter, it offers superior maneuverability and ease of operation. The design includes a separated driving head and operating head, allowing for versatile configuration to meet various bolt specifications while maintaining a lightweight and compact profile suitable for narrow spaces.
Technical Specifications
Performance Metrics
180 N.m
Min Torque (YNBK-2)
10,168 N.m
Max Torque (YNBK-8)
Model Comparison
| Model | Torque Range (N.m) | Nut Range (mm) | Weight (kg) |
|---|---|---|---|
| YNBK-2 | 180-1868 | 27-50 | 1.5 |
| YNBK-4 | 532-5323 | 27-65 | 3.4 |
| YNBK-8 | 1016-10168 | 50-90 | 6.3 |
Design Features
Key Features
- Aerospace-grade titanium alloy construction
- 360°×360° revolving oil tube adapter
- Separated driving and operating head design
- Compact, lightweight form factor for narrow spaces
