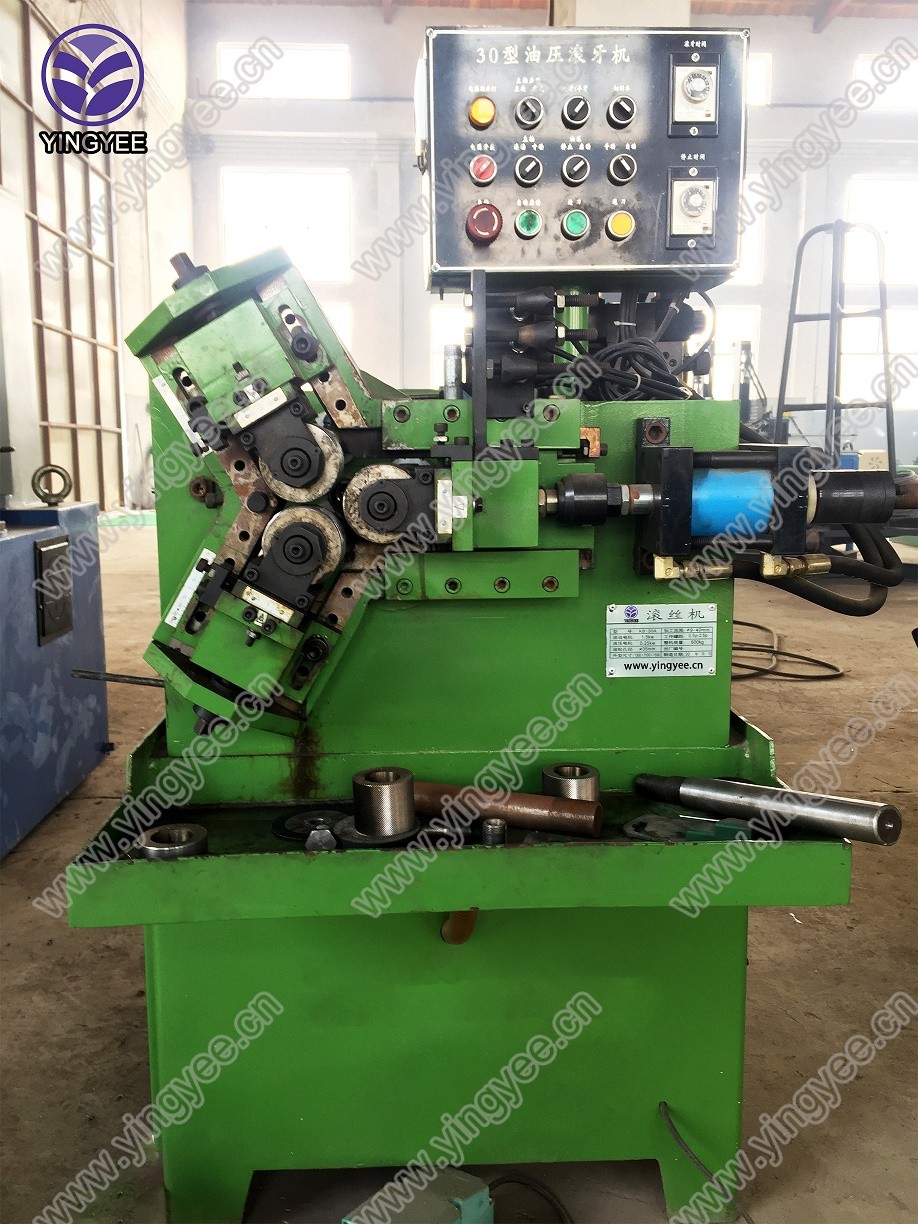

Hydraulic Thread Rolling Machine KB-30A
This hydraulic thread rolling machine is designed for creating threads on screws and similar fasteners. It utilizes a hydraulic system to apply pressure and roll threads onto the workpiece.
Technical Specifications
Overview
Precision Hydraulic Thread Rolling

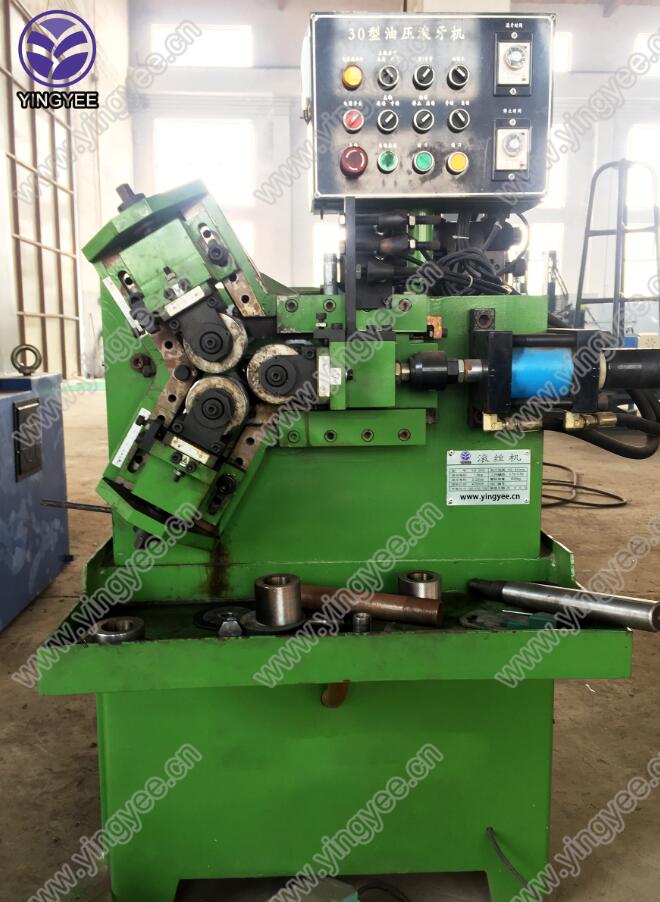

The KB-30A is a robust hydraulic thread rolling machine engineered for high-precision manufacturing of threaded components. Designed specifically for tube parts, it utilizes an equal triangular support system to ensure superior roundness, concentricity, and verticality. With inverter-controlled feed and heat-treated transmission gears, this machine offers stable operation, low noise, and high durability for demanding industrial environments.
Key Features
- Suitable Industries
- ConnectorsBicyclesAuto PartsOil Pipe Fittings
Technical Specifications
Roller Specifications
| Parameter | Value |
|---|---|
| Roller Diameter | 78mm - 90mm |
| Roller Aperture | 35mm |
| Thickness of Roller | 20mm, 40mm |
- Outer Diameter Range
- 40 mm
- Pitch Range
- 0.5P - 2.5P
- Wheel Revolutions
- 350-600 rpm
- Roller Shaft Angle
- ±3°
Power and Dimensions
Power Ratings
1.5 KW
Roller Shaft Power
1.5 KW
Hydraulic Power
Physical Dimensions
- Weight: 600 KGS
- Dimensions: 1300 x 1100 x 1500 mm
