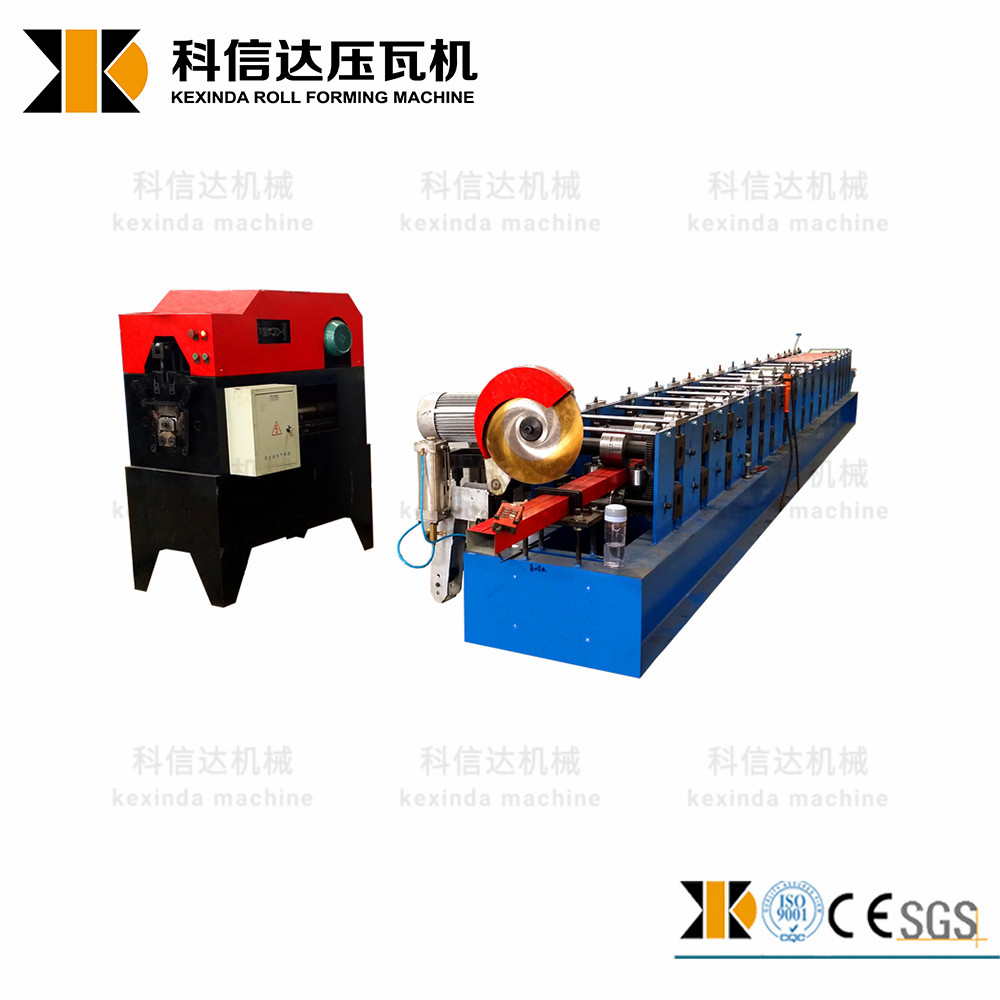

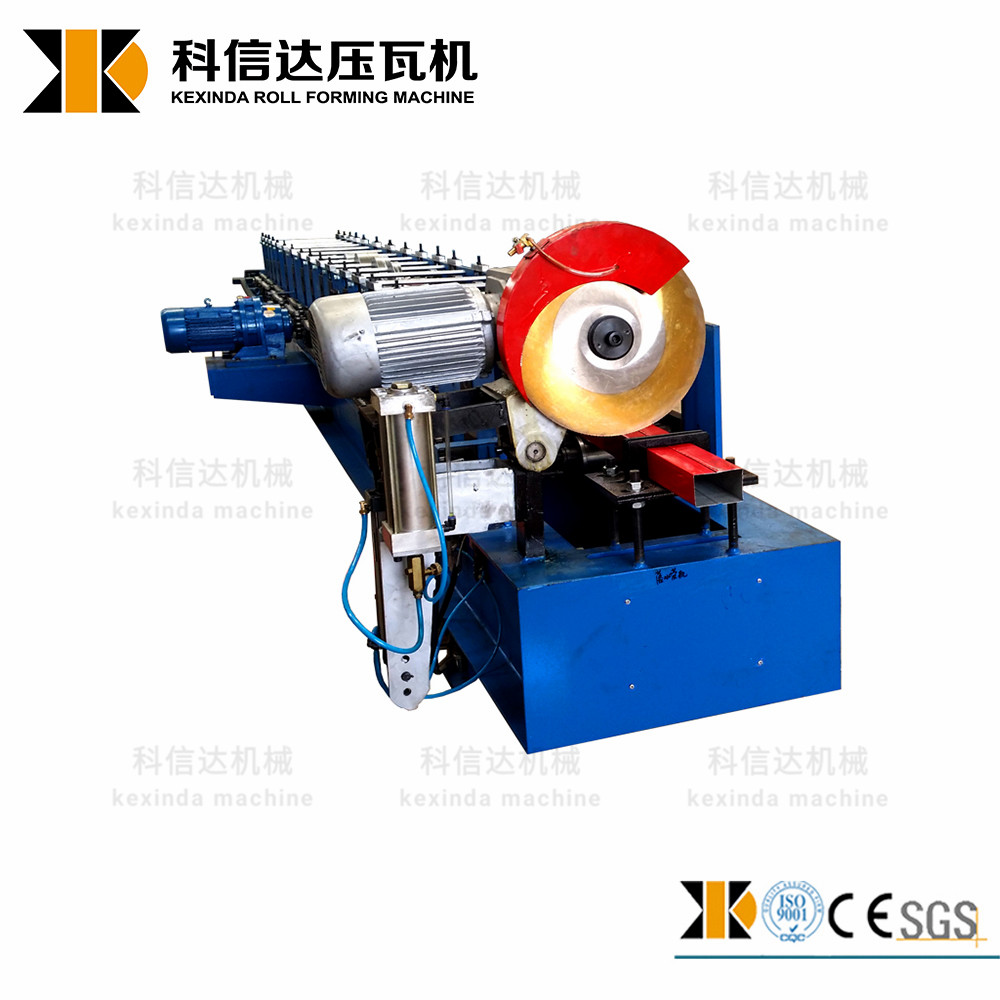

Hydraulic Roll Forming Machine for Metal Sheets
This machine is controlled by a gear wheel oil pump for hydraulic operation. It includes a hydraulic tank, oil pump, hydraulic pipes, and electromagnetism valves to drive the cutter for precise metal forming.
Technical Specifications
Product Overview
High-Efficiency Hydraulic Roll Forming System
This hydraulic roll forming machine is engineered for the precise shaping of metal sheets, including GI and PPGI materials. Utilizing a robust gear-driven oil pump system and advanced PLC controls, it ensures consistent and accurate profile creation for roofing and structural applications. The complete system includes an uncoiler, roll forming unit, hydraulic cutting mechanism, and receiving table, providing a comprehensive solution for industrial metal processing requirements.
Technical Specifications
Productivity
15 m/min
Max Speed
8 m/min
Min Speed
Roller Configuration
- 23 rows of rollers
- Roller diameter: 56mm
- Dimensions
- 10m x 1.2m x 1m
Material Capabilities
- Suitable Materials
- GIPPGI
- Plate Thickness
- 0.8 mm
System Components

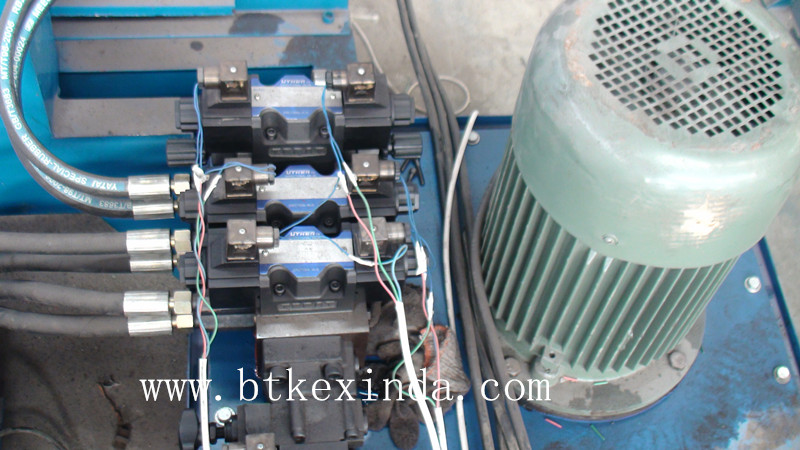

Hydraulic System Components
- Gear wheel oil pump
- Hydraulic oil tank
- 2x Hydraulic pipes
- 2x Electromagnetism valves

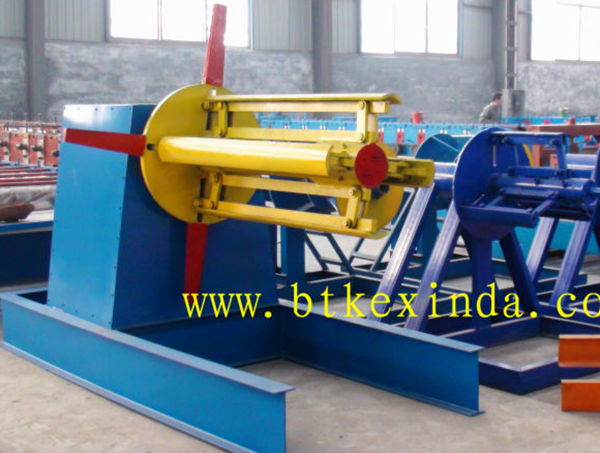

Uncoiler Specifications
| Feature | Specification |
|---|---|
| Load Capacity | 3 tons |
| Inner Diameter | 508mm |
| Operation | Manual |
Operational Information

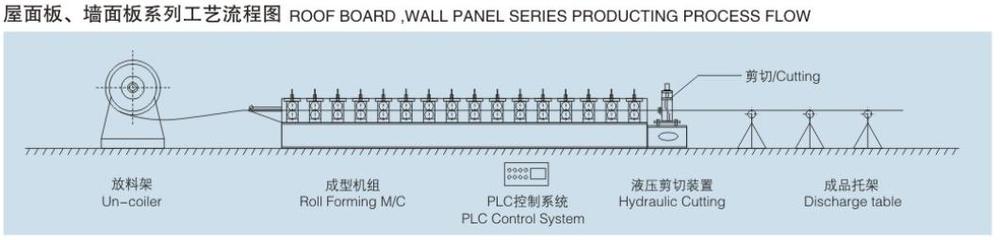

Production Process
- Manual Uncoiling
- Roll Forming

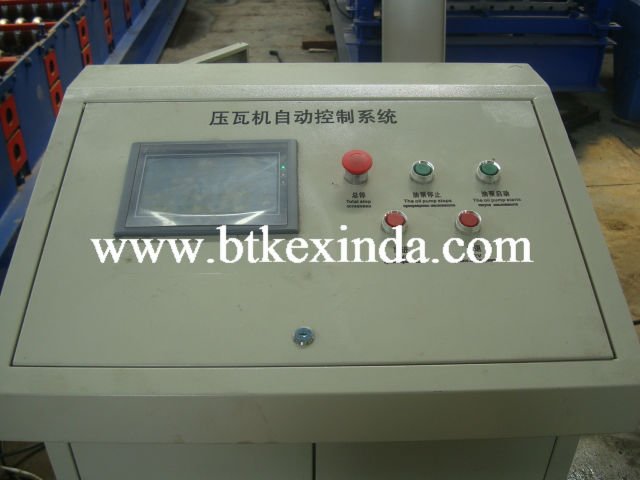

- PLC Control
- Hydraulic Cutting
- Discharge/Receiving
- Warranty
- 1 Year
