Hydraulic Quick Disconnect Coupling ISO 7241-1 Series B
This hydraulic quick disconnect coupling conforms to the ISO7241-1B standard. It is compatible with PARKER 60 Series, FASTER HNV Series, AEROQUIP FD45 Series and HANSEN HK Series.
Technical Specifications
Product Overview

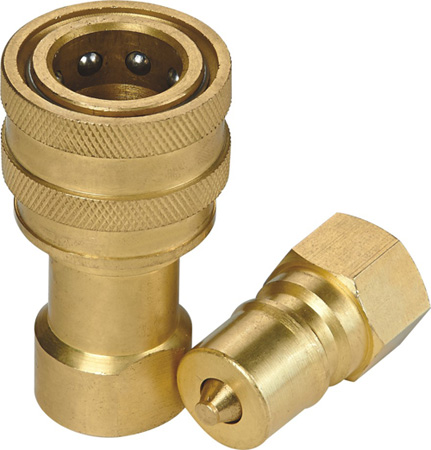

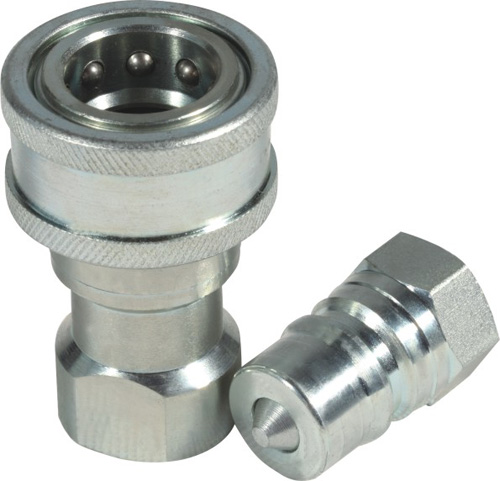

ISO 7241-1 Series B Hydraulic Coupling
This hydraulic quick disconnect coupling is precision-engineered to conform to the ISO 7241-1 Series B standard, ensuring reliable interchangeability. Designed for efficiency, it features an automatic poppet valve system that prevents leakage when uncoupled and ensures smooth fluid flow during operation. Built from robust materials with a secure ball-locking mechanism, this coupling provides a durable, leak-free solution for demanding hydraulic, chemical, water, steam, and gas transfer lines.
Technical Standards
- Standard Compliance
- ISO 7241-1 Series B
- Interchangeable Series
- 60 SeriesHNV SeriesFD45 SeriesHK Series
Design & Construction
Key Features
- Poppet valves prevent uncoupled leakage
- Automatic valve opening under rated pressure
- Hardened critical parts for enhanced durability
- Ball-locking mechanism for secure connection
- Precision machined from solid bar stock
Applications
Suitable Applications
Hydraulic fluid linesChemical transferWater linesSteam transferGas transfer lines
