High-Pressure Hydraulic Hose for Fluid Transfer
This high-pressure hydraulic hose is designed for flexible fluid transfer in demanding hydraulic systems. It features a multi-layered construction with steel wire braid reinforcement for exceptional strength and durability.
Technical Specifications
Overview
High-Pressure Fluid Transfer Solution

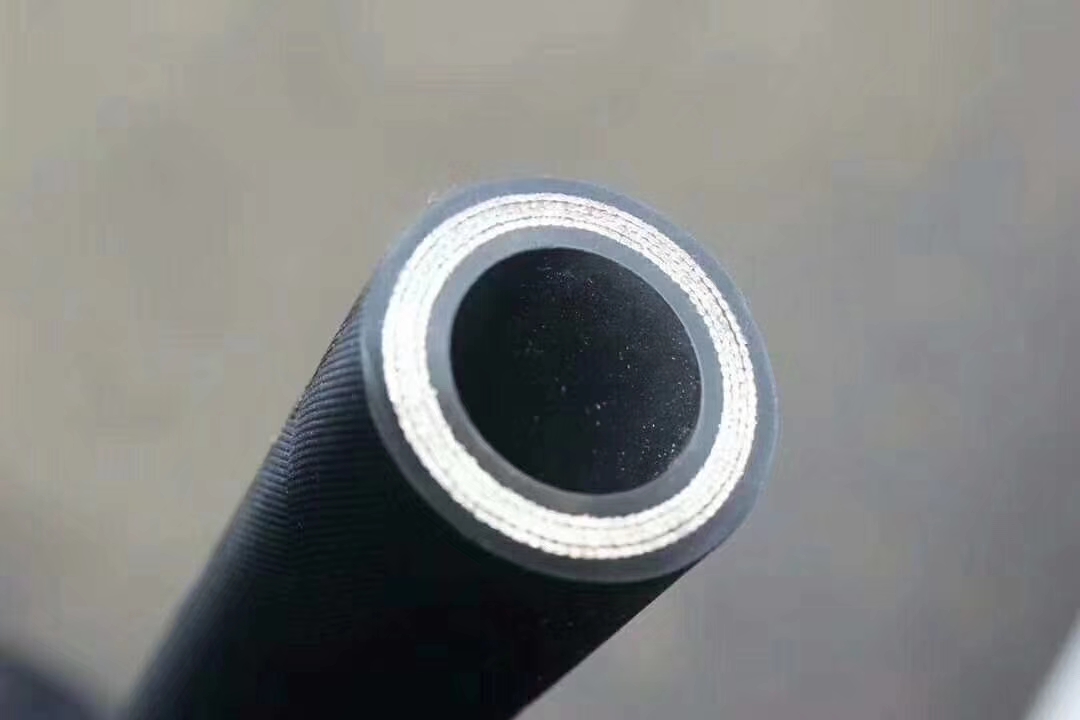

This high-pressure hydraulic hose is engineered for demanding applications, including agricultural machinery and heavy-duty hydraulic systems. It features a robust multi-layered construction with a synthetic rubber inner tube and high-tensile steel wire braid reinforcement for exceptional durability. Designed to handle a wide range of fluids, it ensures reliable performance in both high-pressure and high-temperature environments.
Technical Specifications
Available Series
R1R21SN2SN4SP4SHR9R10R12R13R15
- Compatible Fluids
- Hydraulic OilFuel OilLubricantsEmulsionGlycolWater
- Operating Temperature
- -40°C to +120°C (Cold resistant option available: -55°C)
Featured Performance
Key Performance Indicators

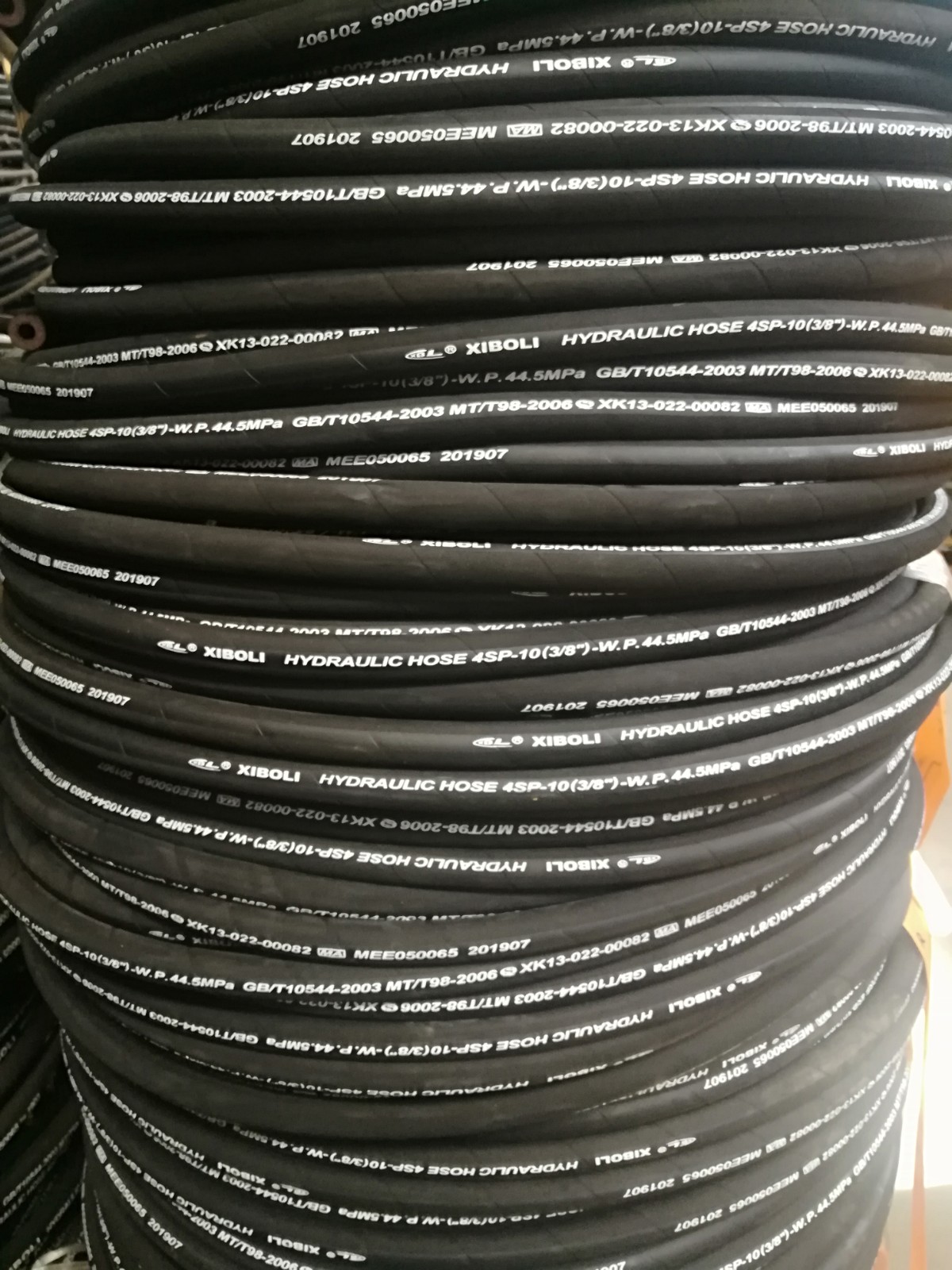

44.5 MPa
Working Pressure (4SP-10 Model)
Compliance & Standards
Regulatory Standards
- GB/T10544-2003
- MT/T98-2006
