Hydraulic Pilot Control Valve with Integrated Logic
This hydraulic pilot control valve features a compact structure and integrated auxiliary logic valve. It offers stable proportional control and reliable electromagnetic positioning.
Technical Specifications
Overview
High-Performance Hydraulic Control
This hydraulic pilot control valve features a compact, ergonomic design with an integrated auxiliary logic valve for precise machine operation. Engineered for demanding environments, it offers stable proportional control and reliable electromagnetic positioning. The unit supports customization of pressure characteristic curves to match specific multi-way valve requirements, ensuring optimal performance across various heavy-duty machinery applications.
Technical Specifications
- Maximum Inlet Pressure
- 5 MPa
- Maximum Control Flow
- 16 L/min
- Maximum Return Pressure
- 0.3 MPa
- Control Pressure Range
- 0.4～1.9 MPa
Electrical Data
- Operating Voltage
- 24 V
- Operating Current
- 200～230 mA
- Rated Suction
- 230 N
Environmental & Fluid
- Operating Temperature
- -40～121 ℃
- Oil Temperature Range
- -20～80 ℃
- Viscosity Range
- 10～380 mm²/s
- Hydraulic Fluid Standard
- Mineral oil (HL, HLP) per DIN 51 524
- Required Oil Cleanliness
- NAS 1638 level 9
Applications
- Primary Applications
- LoaderBulldozerHoisting MachineryAgricultural MachineryMaterial HandlingGarbage CompactorForestry MachineryContainer CraneDrilling Rig

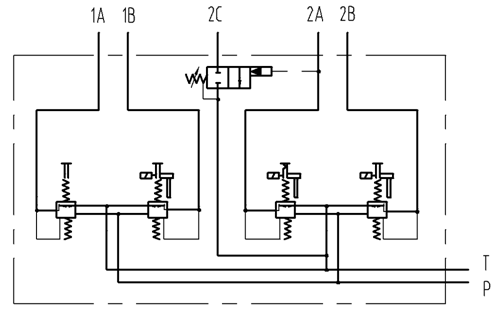

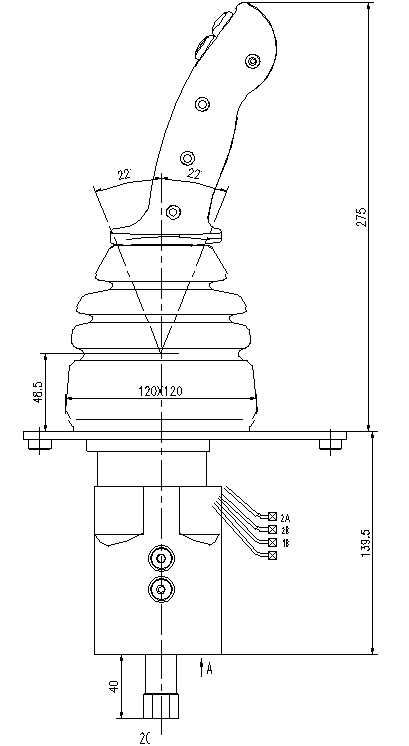

Dimensions
Physical Dimensions
| Parameter | Value |
|---|---|
| Overall Height | 275 mm |
| Base Dimensions | 120 x 120 mm |
| Valve Body Height | 139.5 mm |
| Mounting Plate Height | 48.5 mm |
| Control Shaft Diameter | 20 mm |
| Handle Inclination | 22 degrees |
