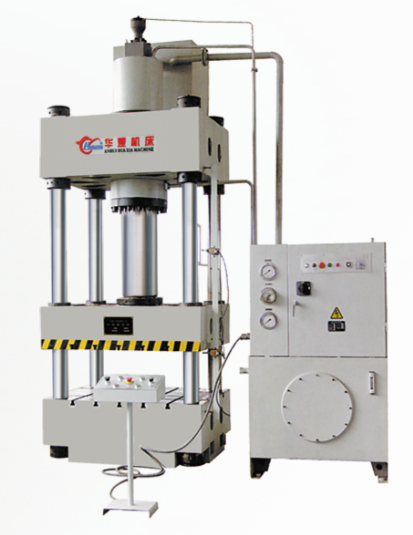

Hydraulic Metal Forming Press
This hydraulic press is designed for metal forming and industrial applications. It delivers substantial force for shaping and molding metal workpieces with precision.
Technical Specifications
Overview
High-Performance Hydraulic Forming Solutions
This Y32 series hydraulic press is engineered for precision metal forming, including stretching, punching, and bending operations. Designed for high rigidity and minimal deformation, the machine features a wide-body frame that effectively eliminates vibration to extend tool life. With its fully enclosed drive system and advanced, oil-bathed gear support, it offers a reliable, low-noise operation suitable for large-scale industrial manufacturing.
Technical Specifications
Rated Force
100 T
Deep Drawing Capacity
- Series
- Y32
- Primary Operations
- Metal StretchingPunchingBendingDeep DrawingForging
Design & Construction
Design Highlights
- High-rigidity wide body frame
- Vibration reduction technology
- Fully enclosed drive system
- Slide and bolster tables with T-slots
- Rigidly supported gears
Operational Safety
Easy Maintenance AccessLow Noise OperationShaft Deflection Reduction
