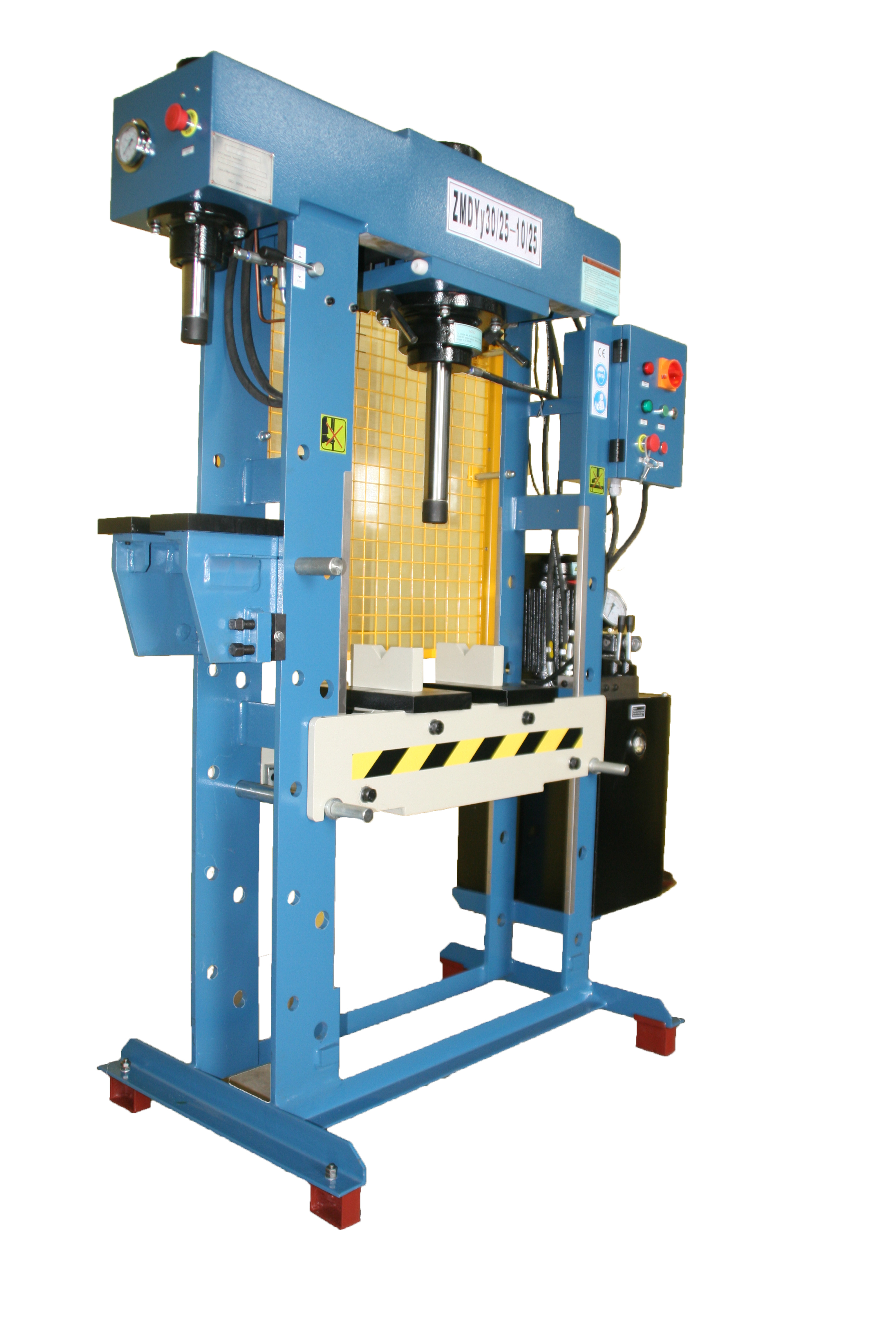

Hydraulic Metal Forming Press
This heavy-duty hydraulic press is designed for metal forming applications. It features a robust frame, a powerful hydraulic cylinder, and an adjustable work table for precision and versatility.
Technical Specifications
Overview
Heavy-Duty Hydraulic Metal Forming Press
This industrial-grade oil hydraulic press is engineered for precision and reliability in demanding metal forming environments. Featuring a robust frame construction and a powerful hydraulic cylinder, it delivers consistent force for a wide range of tasks including pressing, bending, straightening, and assembly. With an adjustable work table and an integrated safety cage, this unit combines operational versatility with essential operator protection for manufacturing and fabrication facilities.
Technical Specifications
Key Features
- Robust heavy-duty frame
- High-performance hydraulic cylinder
- Adjustable work table
- Integrated safety cage
- Dedicated hydraulic power unit
- Model Identifier
- ZMDY30/25-10/25
- Application Suitability
- Metal FormingPressingBendingStraighteningAssembly
Dimensional Data
Dimensional Overview
| Dimension Reference | Description |
|---|---|
| A | Base Width |
| B | Side Width |
| C | Overall Height |
| D | Functional Depth |
| E / E1 | Effective Height |
| I1 | Internal Clearance Reference |
