Technical Specifications
Overview

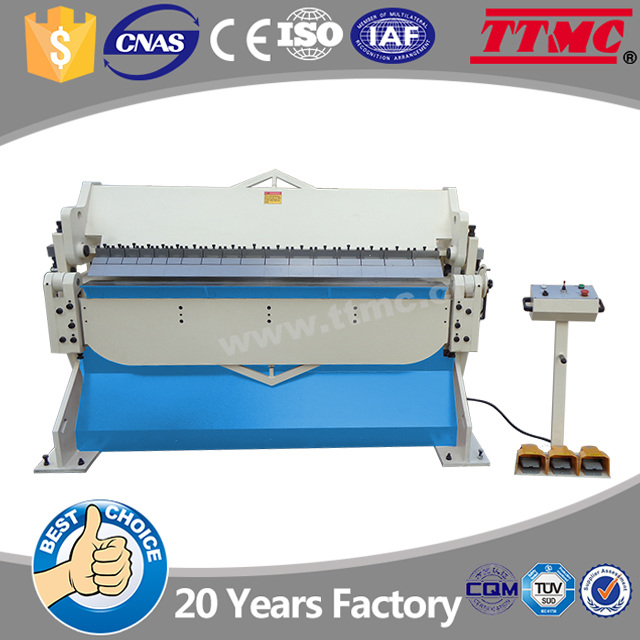

Precision Hydraulic Metal Bending
This hydraulic metal bending machine is engineered for high-performance metal forming, featuring a rigid steel welding structure capable of handling material thicknesses up to 3.5mm. Designed for versatility and ease of use, it includes a segmented bending blade for box creation and a precise angle setting device ranging from 0 to 135 degrees. With operator-focused features like a foot pedal switch and adjustable tool positioning, this machine offers a reliable solution for efficient, repeatable metal fabrication tasks.
Technical Specifications
Bending Capacity
1,830 mm
Max Width
3.5 mm
Max Steel Thickness
2.5 mm
Max Stainless Thickness
Performance Metrics
| Parameter | Value |
|---|---|
| Bending Angle | 0-135° |
| Max Box Depth | 150 mm |
| Large Beam Opening | 75 mm |
| Manual Back Gauge | 660 mm |
| Hydraulic Cylinder Speed | 50-85 mm/s |
Power and Pressure
- Motor Power: 3.7 kW
- Hydraulic Cylinder Pressure: Max 15 Mp
- Motor Working Pressure: 12 Mp
Operation and Features
Control Panel Options
Type A: Movable Control PanelType B: Fixed Control Panel
- Key Features
- Rigid Steel StructureFoot Pedal ControlSegmented BendingAdjustable BeamProtective Cover
Physical Dimensions
Dimensions and Weight
| Metric | Value |
|---|---|
| Packing Size | 260 x 102 x 170 cm |
| Net Weight | 2170 kg |
| Gross Weight | 2300 kg |
