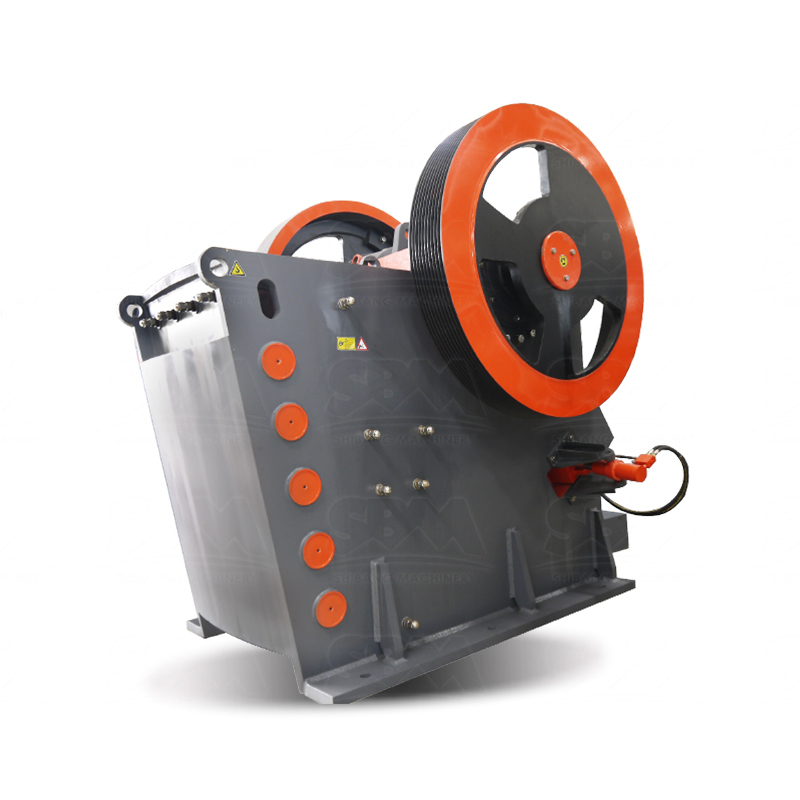

Hydraulic Jaw Crusher for Stone, Rock, and Ore
This jaw crusher is designed for primary crushing of materials such as stone, rock, and ore. Its automatic hydraulic design facilitates easier adjustments and operations.
Technical Specifications
Overview
High-Efficiency Hydraulic Jaw Crusher
This hydraulic jaw crusher is engineered to combine modern science with practical production demands, offering an automatic hydraulic design for easier adjustments and operation. It is specifically designed for primary and secondary crushing of hard materials like granite, basalt, and iron ore. Built for mass production, the system utilizes a continuous motor-driven eccentric shaft mechanism to ensure consistent material discharge and high throughput.
Key Features
Suitable Materials
GraniteMarbleBasaltLimestoneQuartzPebbleCopper OreIron Ore
- Certifications
- ISO 9001CE
Performance Metrics
Energy Efficiency
20 %
Min Energy Savings
35 %
Max Energy Savings
Technical Specifications
Model Comparison Table
| Model | Feed Opening (mm) | Max Feeding (mm) | Discharge Range (mm) | Capacity (t/h) | Power (kW) |
|---|---|---|---|---|---|
| PEW250×1000 | 250×1000 | 220 | 20-40 | 15-50 | 30 |
| PEW250×1200 | 250×1200 | 220 | 20-40 | 20-50 | 37 |
| PEW400×600 | 400×600 | 350 | 35-85 | 15-70 | 37 |
| PEW760 | 760×1100 | 640 | 75-200 | 150-350 | 110 |
| PEW860 | 860×1100 | 720 | 100-225 | 200-500 | 132 |
| PEW1100 | 1100×1200 | 930 | 150-275 | 300-650 | 185 |
