Hydraulic Grapple Saw Attachment for Cranes

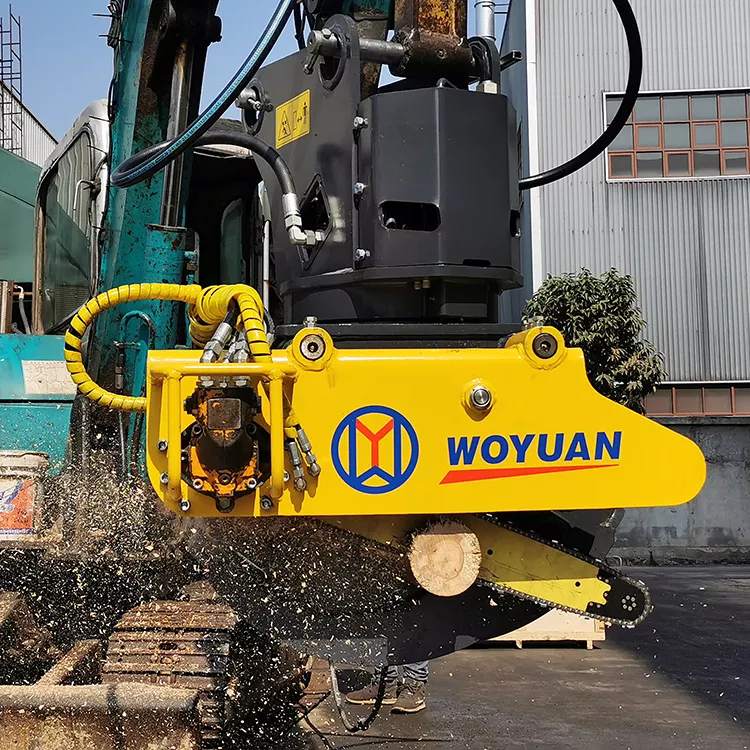

This grapple saw combines a grapple and saw for efficient tree management. It can fell, shorten, chip, and transport trees when mounted on a crane.
Technical Specifications
Overview
High-Performance Hydraulic Grapple Saw
This hydraulic grapple saw attachment is a versatile tool designed for efficient forestry, land clearing, and tree care operations. It combines the functionality of a secure grapple with a high-speed chainsaw, allowing operators to fell, shorten, chip, and transport trees seamlessly. Engineered with high-strength steel and advanced hydraulic controls, it offers reliable performance and smooth operation for demanding heavy-duty applications.

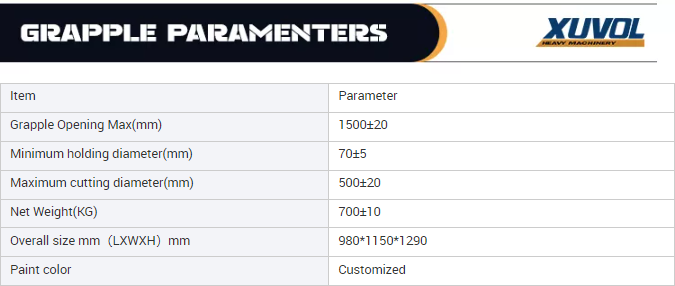

Technical Specifications
- Maximum Grapple Opening
- 1500 mm
- Minimum Holding Diameter
- 70 mm
- Maximum Cutting Diameter
- 500 mm
- Net Weight
- 700 kg
- Overall Dimensions (L x W x H)
- 980 x 1150 x 1290 mm
Features & Construction

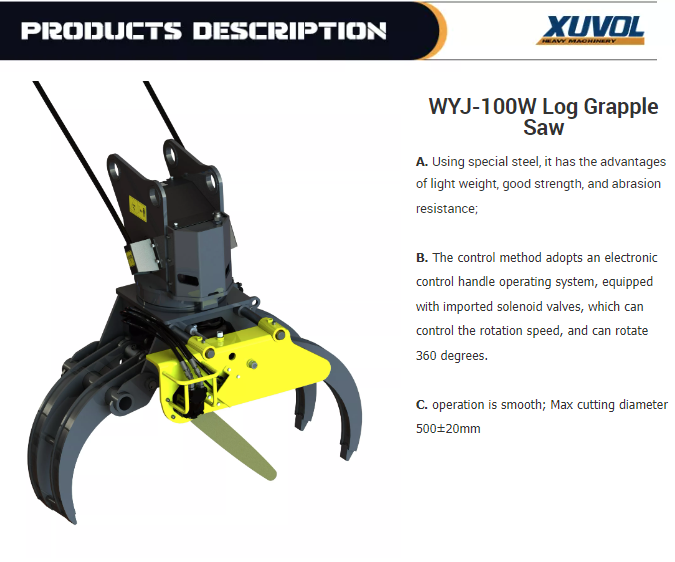

Control System
- Electronic control handle operating system

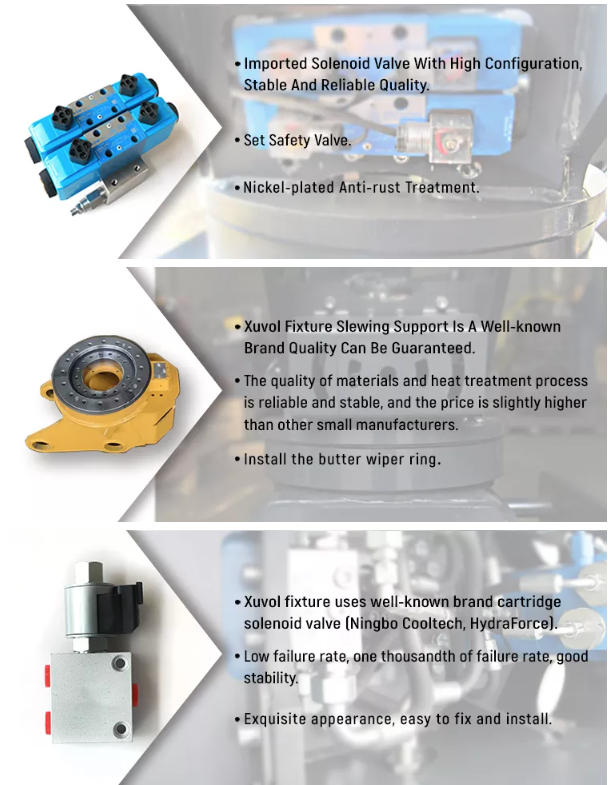

- Imported solenoid valves
- 360-degree rotation capability
- Integrated safety valve
Durability & Maintenance
Nickel-plated anti-rust treatmentButter wiper ringLow failure rateWear-resistant design
- Construction Material
- High-strength Q355B special steel14mm clamping plate thicknessAbrasion resistant
Performance Comparison
Structural Material Comparison
| Feature | This Product | Standard Alternative |
|---|---|---|
| Clamping Plate Thickness | 14mm | 12mm |
| Material Type | Special Steel (Q355B) | Ordinary Steel |
| Performance | High strength & wear resistance | Prone to loosening/leaks |
