Hydraulic Flange Spreader
Hydraulic wedge spreaders are designed for separating flanges in industrial settings. The tool uses a hydraulic cylinder to drive a wedge-shaped spreader for controlled separation of objects.
Technical Specifications
Product Overview

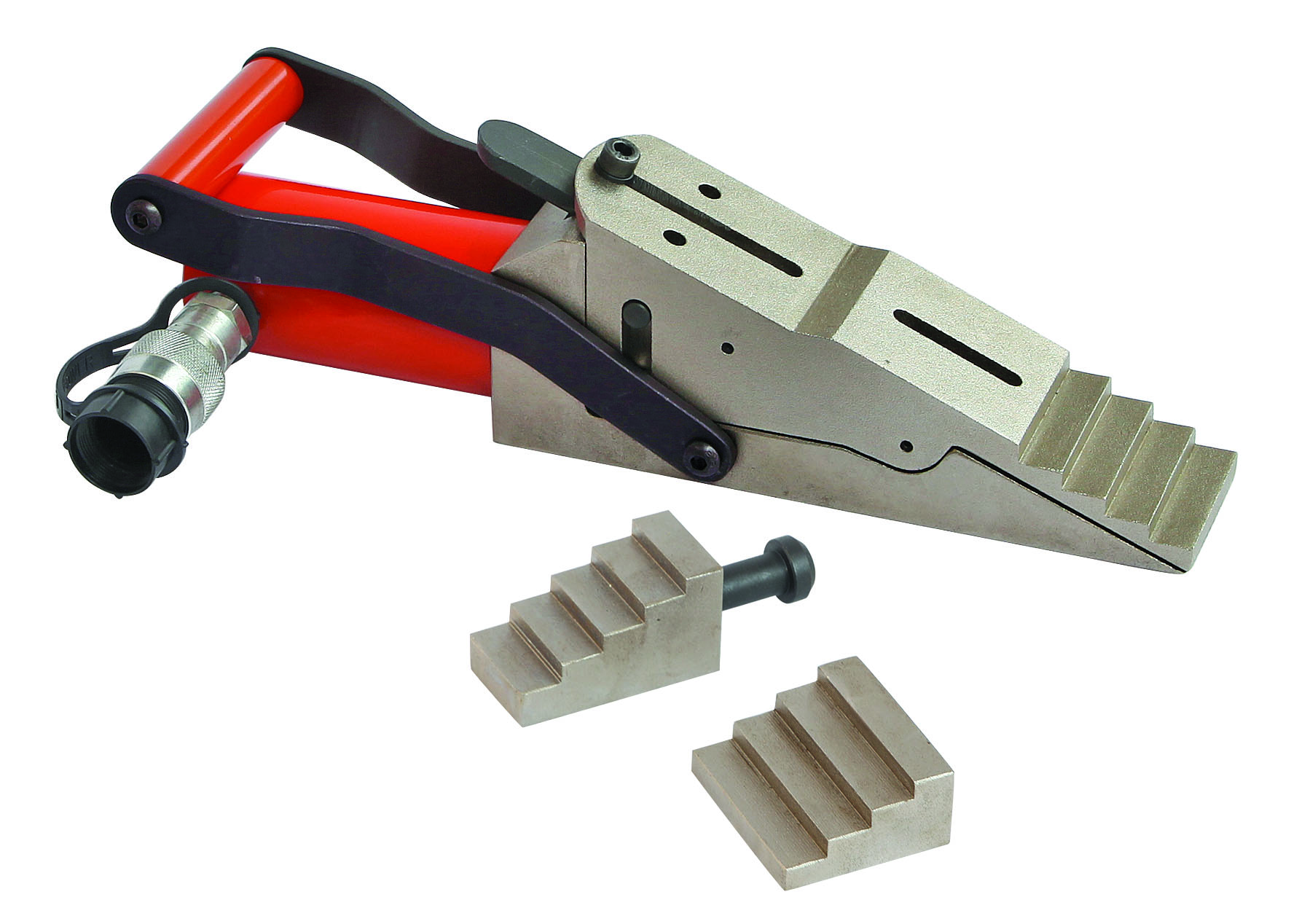

Precision Hydraulic Flange Spreader
This hydraulic wedge spreader is engineered for demanding industrial separation and flange spreading tasks where precision and power are critical. Featuring a unique interlocking wedge design, it is capable of operating in extremely confined spaces with an access gap as small as 10mm. The tool supports full-load spreading at every step and includes a safety block for secure operation, making it an essential asset for maintenance, repair, and assembly environments.
Key Performance Metrics
Performance Specifications
16 Ton
Max Lifting Capacity
10 mm
Min Access Gap
81 mm
Max Spread
9 kg
Weight
Technical Details
Technical Specifications
| Feature | Value |
|---|---|
| Model Number | LW-16 |
| Stroke | 21 mm |
| Operation Type | Single-acting |
| Retraction | Spring |
Features & Benefits
Core Features
- Requires only 10mm minimum access gap
- Full-load spreading capability at every step
- Includes integrated safety block
- Unique interlocking wedge design
- Compact construction for confined spaces
- Ergonomic handle for comfortable operation
- Application Areas
- MaintenanceRepairAssemblyFlange Spreading
