Hydraulic Distributor Remote Control Joystick
This hydraulic joystick offers precise control and quick response for hydraulic systems. Its ergonomic handle is designed for comfortable operation and minimal effort, with ports arranged for easy installation.
Technical Specifications
Product Overview
Hydraulic Distributor Remote Control Joystick
This compact hydraulic remote control joystick is engineered for precision and rapid response in demanding industrial environments. Featuring an ergonomic handle with customizable switch configurations, it ensures operator comfort and minimal fatigue during extended use. The system supports direct solenoid valve connection for reliable positioning, automated resetting, and superior control over hydraulic cylinder speeds.

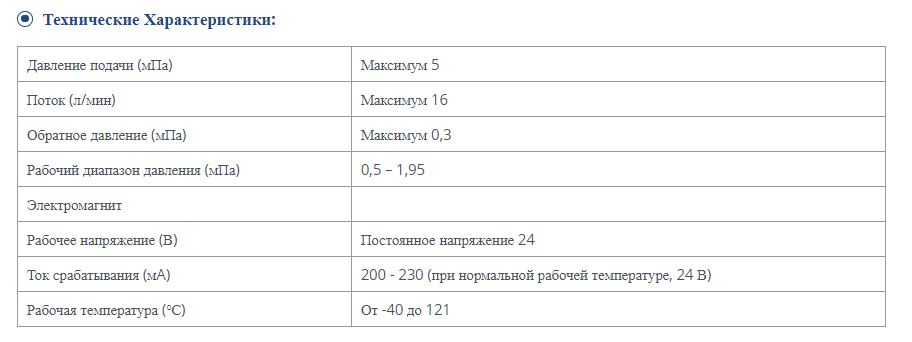

Technical Specifications
Performance Metrics
5 mPa
Max Supply Pressure
16 l/min
Max Flow Rate
0.3 mPa
Max Back Pressure
Electrical Data
| Parameter | Value |
|---|---|
| Operating Voltage | 24V DC |
| Trigger Current | 200-230 mA |
| Operating Temp | -40 to 121 °C |
Key Features
Operational Advantages
- Compact design for easy installation
- Parallel port arrangement for simplified setup
- Direct solenoid valve compatibility
- Automated reset and positioning mechanism
- Variable secondary pressure control
- Integrated lever arm protection against failures
Applications
- Compatible Equipment
- LoadersBulldozersLifting EquipmentAgricultural MachineryMaterial HandlingCompaction RollersForestry MachineryContainer CranesDrilling Rigs
