Technical Specifications
Overview
Professional Hydraulic Crimping Solution
The JM-240B hydraulic crimping tool is engineered for the efficient and secure crimping of both copper and aluminum lugs and connectors. Designed to streamline the crimping process, this tool delivers a robust 100kN of force, ensuring reliable and consistent electrical connections. It is an essential instrument for power transmission and distribution projects, offering a balance of high performance and ease of use.
Technical Specifications
Crimping Force
100 kN
Crimping Force
Physical Dimensions
- Length: 495mm
- Weight: 4.5kg
- Crimping Range
- 16mm² - 300mm²
Package Contents
- What's in the box
- JM-240B ToolDie SetManualPlastic Carry Case

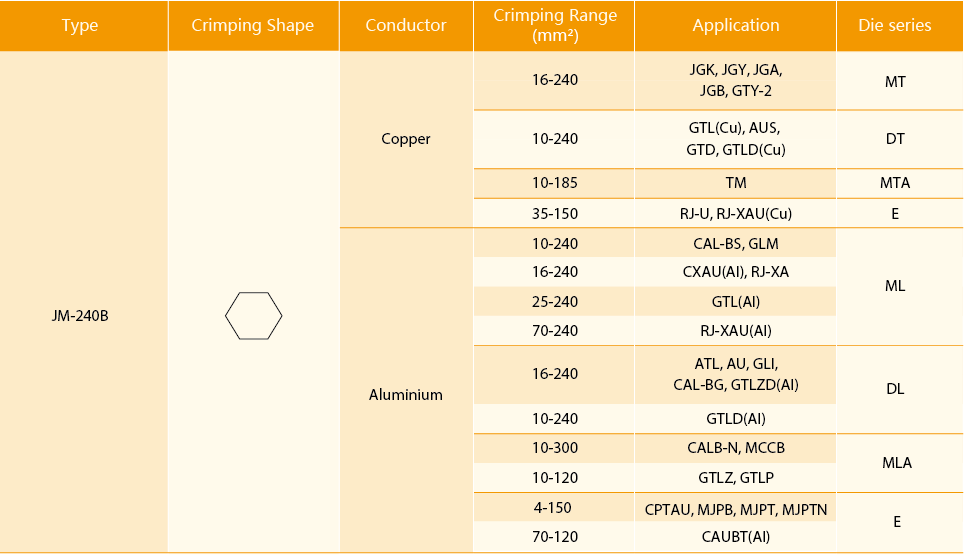

Compatibility
Supported Die Series
- MT
- DT
- MTA
- E
- ML
- DL
- MLA
Compatible Connector Types
| Category | Connector Models |
|---|---|
| Copper | JGK, JGY, JGA, JGB, GTY-2, GTL(Cu), AUS, GTD, GTLD(Cu), TM, RJ-U, RJ-XAU(Cu), CAL-BS, GLM |
| Aluminium | CXAU(AI), RJ-XA, GTL(AI), RJ-XAU(AI), ATL, AU, GLI, CAL-BG, GTLZD(AI), GTLD(AI), CALB-N, MCCB, GTLZ, GTLP, CPTAU, MJPB, MJPT, MJPTN, CAUBT(AI) |
