Technical Specifications
Product Overview
High-Performance Hydraulic Crimping
The T-630 hydraulic crimping head is a robust tool engineered for professional electrical applications, designed to work seamlessly with MELEC hydraulic pump systems. It offers a powerful 230kN crimping force, ensuring reliable and secure connections for a wide range of conductor sizes. With its durable build and versatile die compatibility, this unit provides consistent, high-quality results for demanding industrial and utility tasks.
Performance Specifications
Crimping Force
230 kN
Force
- Crimping Range
- 300mm² - 630mm²
Physical Properties
- Weight
- 4.7 kg
Package Contents
What's in the box
- T-630 Crimping Head
- Die set
- Manual
- Spare seal ring
- Plastic carry case
Technical Details

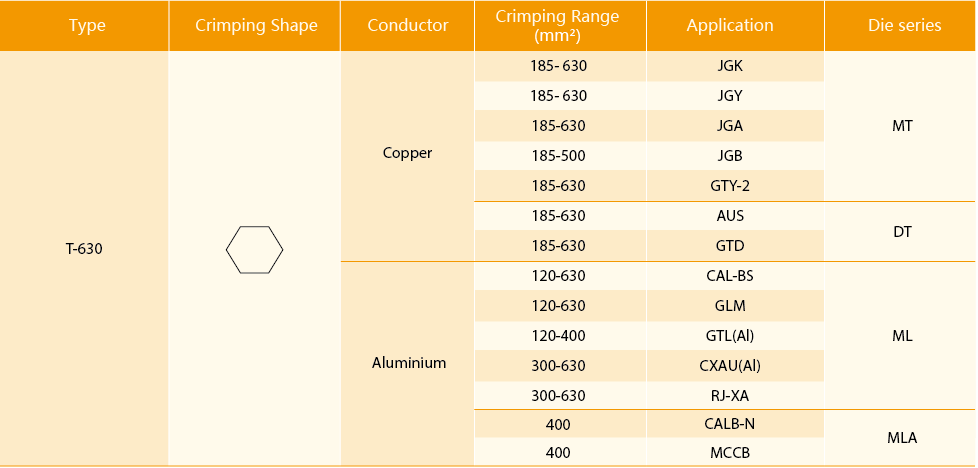

Compatible Applications and Dies
| Conductor Type | Range (mm²) | Series |
|---|---|---|
| Copper | 185-630 | MT, DT |
| Aluminium | 120-630 | ML, MLA |
