Hydraulic Crimping Head
This hydraulic crimping head ensures secure and reliable electrical connections. Its hydraulic system delivers consistent crimping force, and it is compatible with various dies for different connector sizes.
Technical Specifications
Overview
Professional Hydraulic Crimping Solution
The CH-630 is a high-performance hydraulic crimping head designed for heavy-duty electrical applications, specifically optimized for aluminum conductors. Delivering a powerful 230kN of crimping force, it ensures secure and permanent connections for large-scale power transmission and distribution projects. This versatile tool is engineered to work seamlessly with external hydraulic pumps, providing a robust solution for industrial-grade crimping requirements.
Performance Metrics
Key Performance Metrics
230 kN
Crimping Force
630 mm²
Max Capacity
7.1 kg
Head Weight
Technical Specifications
Compatible Conductor
Aluminium

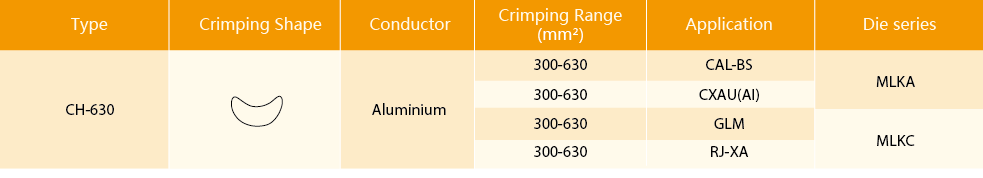

Application Compatibility
| Application Type | Die Series |
|---|---|
| CAL-BS | MLKA |
| CXAU(Al) | MLKA |
| GLM | MLKC |
| RJ-XA | MLKC |
- Crimping Range
- 300mm² - 630mm²
Operational Requirements
- Required Equipment
- Must be used together with a compatible hydraulic pump.
Package Contents
What's in the Box
- CH-630 Hydraulic Crimping Head
- Nest die
- Indentor
- Fixer
- Hammer
- Manual
- Plastic carry case
