Hydraulic Cone Crusher
This hydraulic cone crusher utilizes advanced technology for efficient material reduction. It delivers high crushing efficiency and consistent end-product shape while maintaining low operational costs.
Technical Specifications
Overview

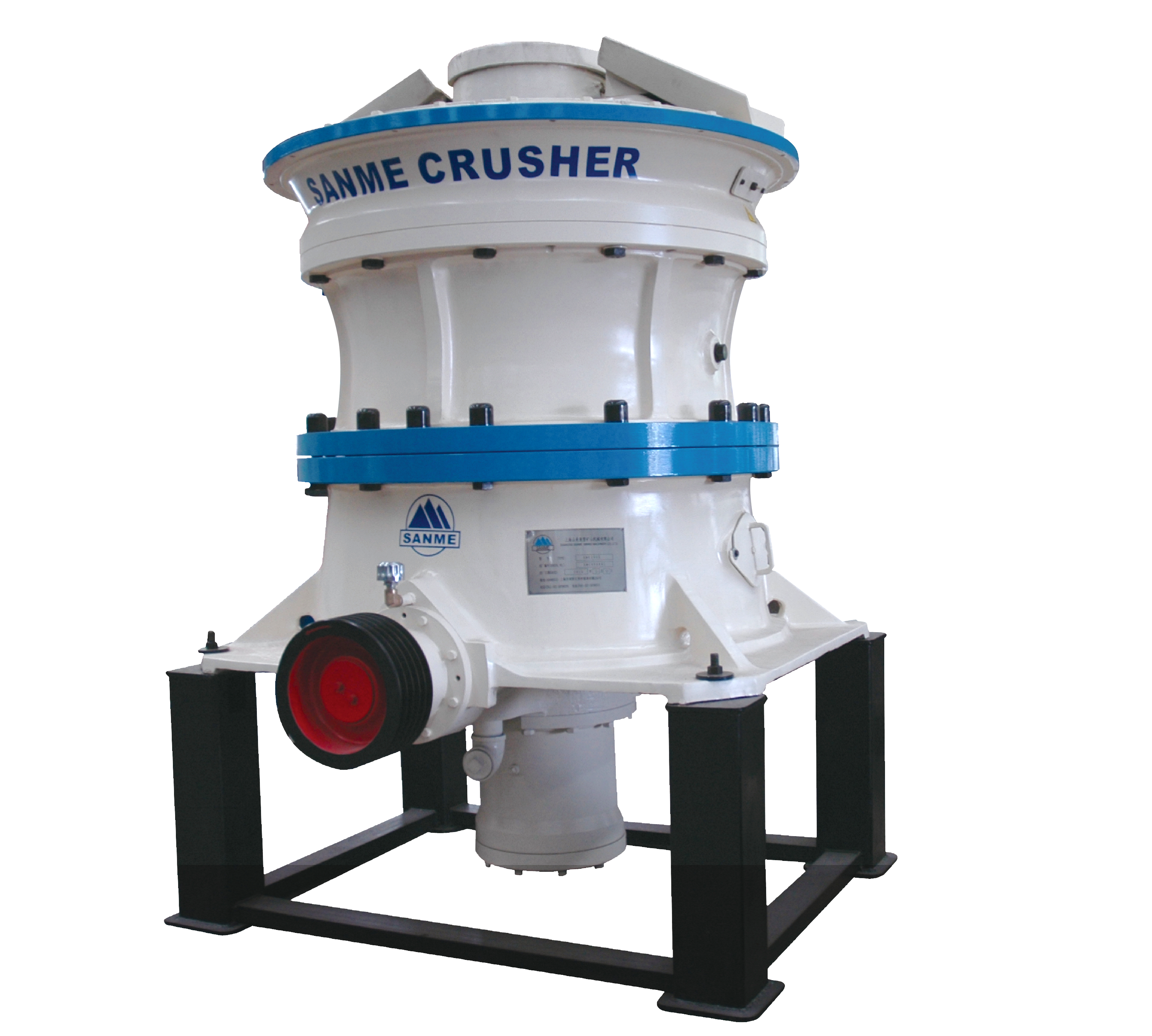

SMG Series Hydraulic Cone Crusher
The SMG series single-cylinder hydraulic cone crusher utilizes advanced international technology to deliver high crushing efficiency and reliability. Featuring an intelligent auto-control system, this equipment ensures optimal performance and simplifies discharge opening adjustments. Its compact, single-cylinder design reduces maintenance complexity, ultimately lowering operational costs while maintaining excellent end-product shape.
Technical Specifications
Model Performance Data
| Model | Max Feeding (mm) | Power (kW) | Capacity (t/h) | Weight (kg) |
|---|---|---|---|---|
| SMG100 | 150 | 90 | 25-120 | 5,700 |
| SMG200 | 200 | 160 | 63-215 | 9,500 |
| SMG300 | 215 | 250 | 95-396 | 17,500 |
| SMG500 | 275 | 315 | 175-638 | 28,000 |
| SMG700 | 300 | 520 | 350-1502 | 53,000 |
| SMG800 | 370 | 600 | 241-2185 | 75,000 |
Key Features
Operational Advantages
- Intelligent auto-control system for optimal work conditions
- Automatic compensation for wear parts
- Convenient discharge opening adjustment
- Compact single-cylinder structure
- High reliability with reduced maintenance points
