Overview

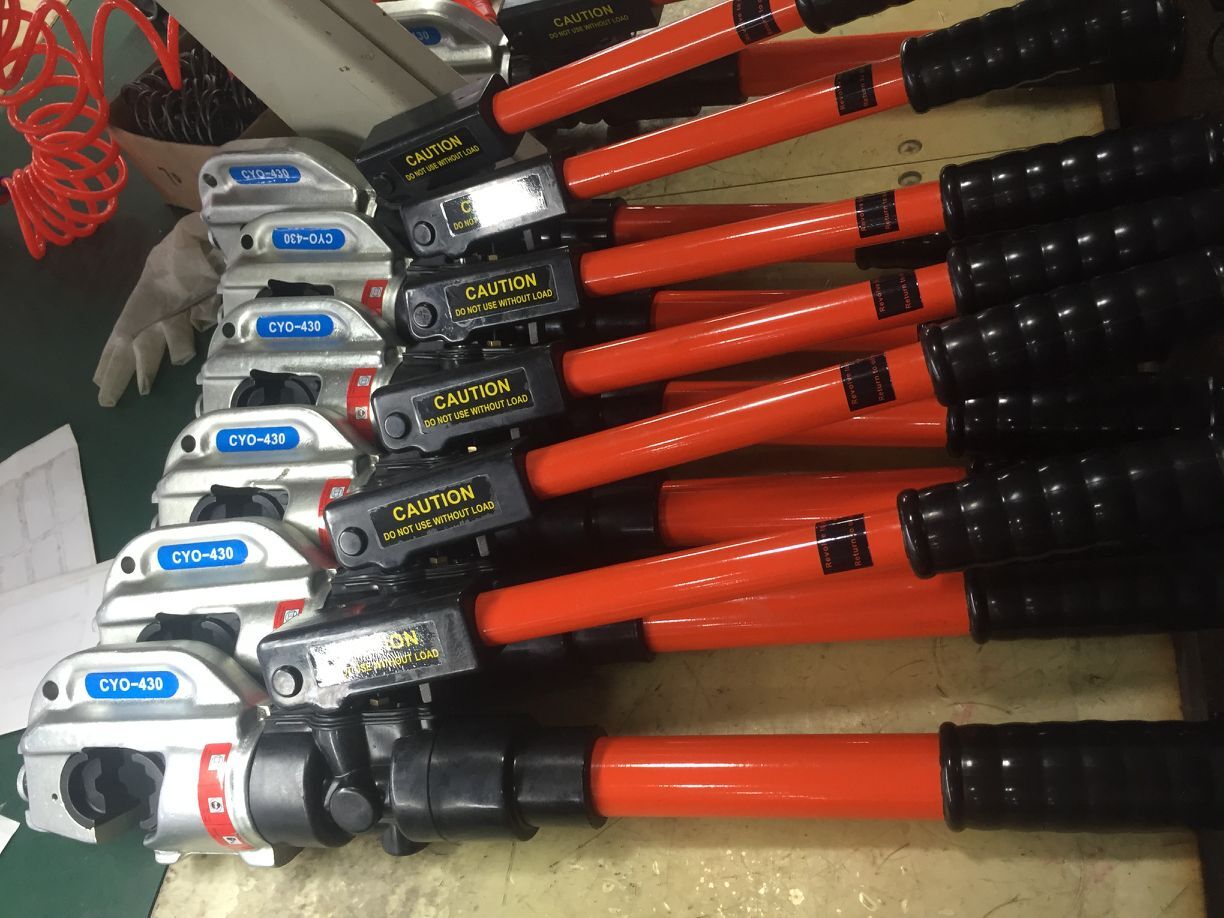

Professional Hydraulic Crimping Solution

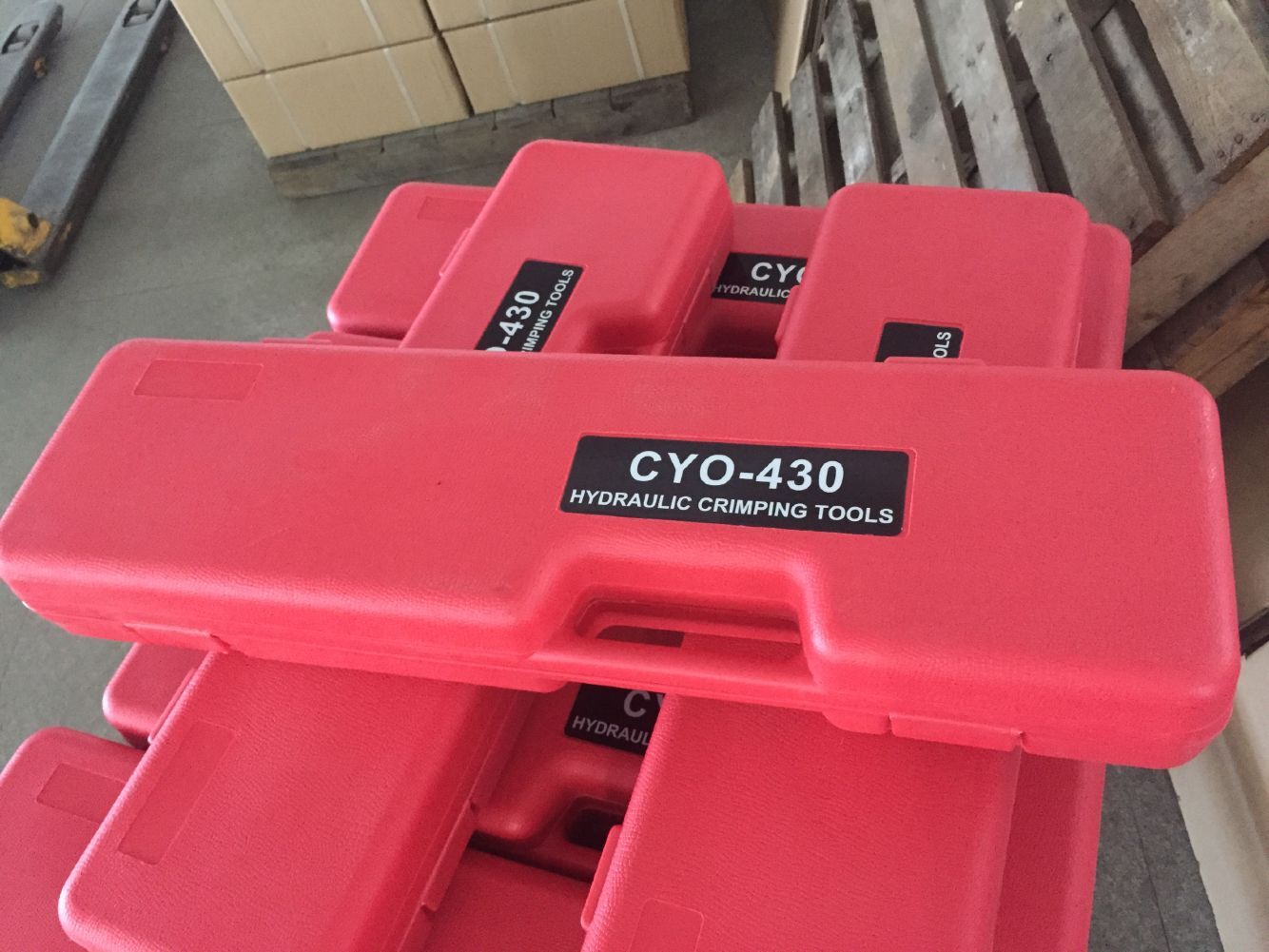

These hydraulic compression pliers are engineered for reliable crimping on power cables and wires, ensuring high conductivity and close contact to prevent overheating and disconnection. Featuring an open-cut design for convenient operation and fiberglass insulated handles for operator safety, these tools are built for demanding electrical environments. Each unit comes protected in a robust integral plastic carrying case for secure storage and transport.
Key Features
- Key Features
- Hydraulic MechanismFiberglass Insulated HandlesOpen Cut DesignHigh Conductivity Crimping
Technical Specifications
Model Comparison
| Model | Output (T) | Capacity (mm²) | Stroke (mm) | Weight (kg) |
|---|---|---|---|---|
| CYO-430 | 12 | 35-300 | 30 | 6.5 |
| CYO-510B | 13 | 50-400 | 38 | 6.2 |
Die Sets
CYO-510B Die Assembly
- 50
- 70
- 95
- 120
- 150
- 185
- 240
- 300
- 400
Safety & Packaging
Safety & Packaging
Fiberglass InsulationRobust Plastic CasePressure Relief Valve
