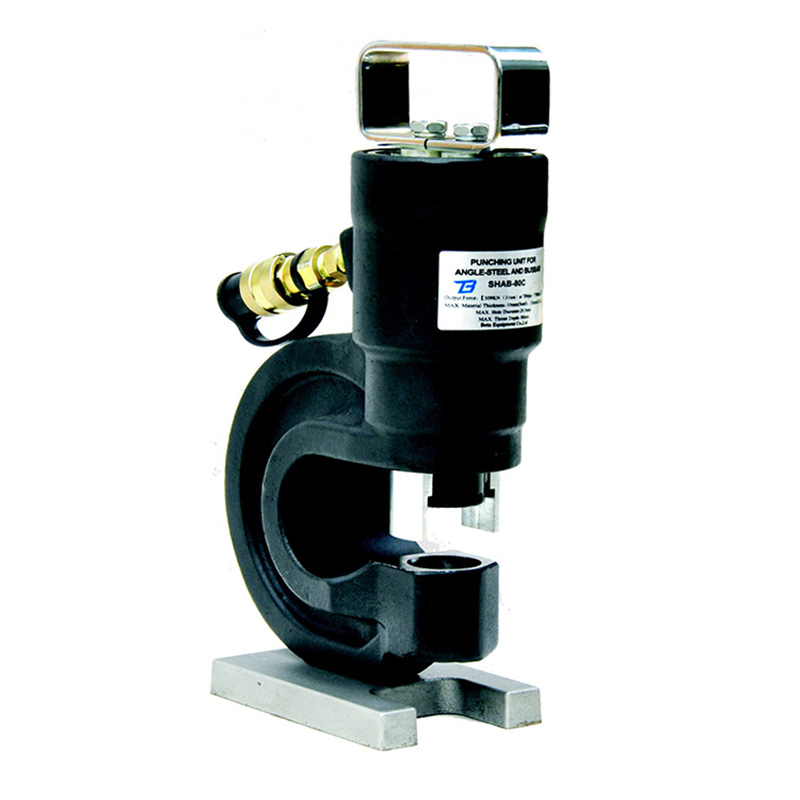

Hydraulic Busbar Punch
This hydraulic punching tool is designed for creating holes in metal busbars and angle steel. It offers a clean and efficient method for punching holes in copper and aluminum materials.
Technical Specifications
Overview
High-Performance Hydraulic Punching
This hydraulic busbar punch is a versatile tool engineered for precision metalworking in electrical panel fabrication and construction. Featuring a robust high-strength steel body, it efficiently handles angle steel, I-beams, flat steel plates, and copper or aluminum busbars. Designed for both mobile field operations and fixed workshop batch production, this unit ensures reliable, clean punching performance.
Performance Metrics
Output Force
31 T
Output Force
- Rated Pressure
- 700 bar
Technical Specifications
Max Punching Thickness
| Material Type | Max Thickness |
|---|---|
| Cu/Al | 13mm |
| Steel | 10mm |
- Model
- SHAB-80C
- Throat Depth
- 80 mm
- Weight
- 13.5 KG
Accessories & Packaging
- Standard Die Diameters
- 10.5mm13.5mm17.5mm20.5mm
- Optional Die Diameters
- 8.5mm11.5mm15.5mm18.5mm
- Packaging
- Steel Case
Features
Key Features
- High-strength steel body for durability
- 2-stage hydraulics to prevent die sticking
- Quick coupler for easy disassembly
- Compatible with double-acting hydraulic pumps
- Suitable for angle steel, I-beam, and flat plate applications
