Hydraulic Bus Bar Cutter
This hydraulic bus bar cutter is designed for cutting copper and aluminum bus bars. It features a 25-ton output force and a maximum operating pressure of 700 bar.
Technical Specifications
Product Overview
High-Performance Hydraulic Bus Bar Cutter

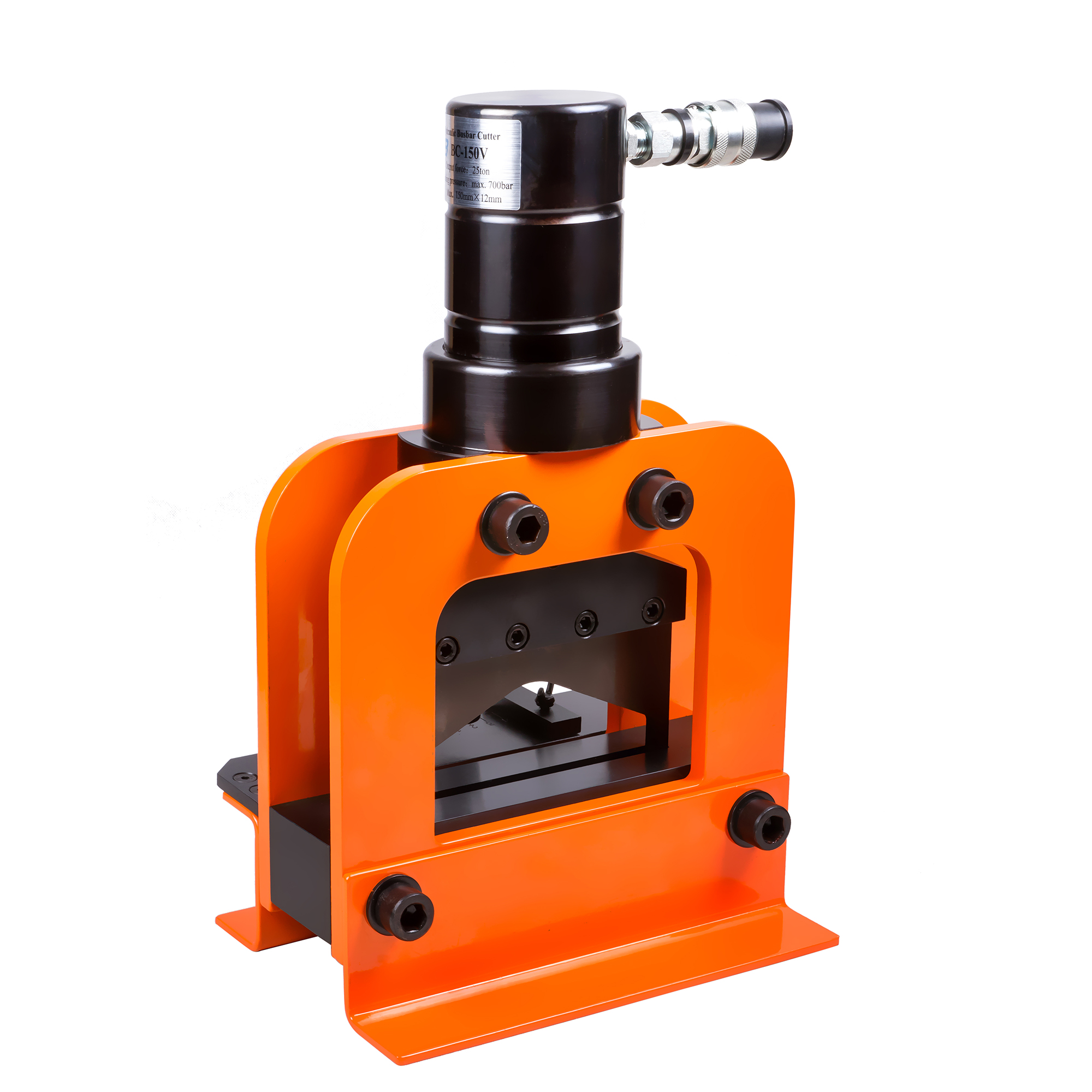

The BC-150V is a robust, portable hydraulic tool engineered for precision cutting of copper and aluminum bus bars. Designed for both mobile field operations and workshop batch processing, it features a 25-ton output force and a V-type blade that ensures clean, chip-free cuts without depressing the material. The unit includes a graduated plate for easy center adjustment and is compatible with single-acting hydraulic pumps.
Technical Specifications
- Model
- BC-150V
- Output Force
- 25 T
- Max Cutting Thickness
- 12 mm
- Max Cutting Width
- 200 mm
- Weight
- 28 kg
- Packing
- Steel case
Key Features
Operational Highlights
- V-Type blade for clean, non-depressed cuts
- Graduated plate for easy center alignment
- Quick coupler for easy disassembly
- Portable design for mobile or workshop use
- Smooth cutting surface without chipping
- Compatible Materials
- Copper BusbarAluminum Busbar
- Power Source
- Single acting hydraulic pump
