Hydraulic Bottle Jack
This hydraulic bottle jack is designed for lifting heavy loads in automotive and industrial settings. It features adjustable height and a durable construction for reliable performance.
Technical Specifications
Overview
Heavy-Duty Hydraulic Lifting Solution
This hydraulic bottle jack is engineered for reliability and strength in demanding automotive, industrial, and agricultural environments. Featuring a wide, rugged base for maximum stability and reinforced stress points for enhanced durability, it ensures safe operation under heavy loads. The inclusion of an adjustable screw saddle provides versatile lifting ranges, making it an essential tool for professional service shops and maintenance crews.
- Certifications
- GSCE
Technical Specifications
Key Performance Metrics
2 Ton
Capacity (Small Model)
4 Ton
Capacity (Large Model)
Model Specifications

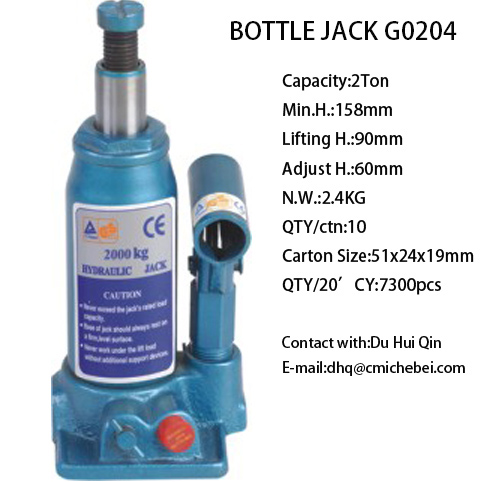

| Feature | 2-Ton (G0204) | 4-Ton (G0404) |
|---|---|---|
| Min. Height | 158 mm | 195 mm |
| Lifting Height | 90 mm | 125 mm |
| Adjustable Height | 60 mm | 60 mm |
| Net Weight | 2.4 kg | 3.5 kg |
Logistics
Shipping & Packaging
| Model | Units/Carton | Carton Dimensions | 20ft Container Qty |
|---|---|---|---|
| 2-Ton | 10 | 51x24x19 mm | 7,300 |
| 4-Ton | 8 | 47x26x23 mm | 5,032 |
Features
Design Highlights
- Adjustable screw saddle for flexible lifting ranges
- Wide, rugged base for enhanced stability
- Reinforced critical stress points for longevity
- Suitable for auto, truck, farm, and shop applications
