Hydraulic Bottle Jack
This hydraulic bottle jack is designed for lifting heavy loads. It features an adjustable height and a durable construction for reliable performance.
Technical Specifications
Overview
Heavy-Duty Hydraulic Performance
This hydraulic bottle jack is engineered for reliability and strength, making it an essential tool for auto, truck, farm, and shop maintenance. Featuring a rugged, wide base for superior stability and reinforced stress points for increased durability, it ensures safe operation under heavy loads. The inclusion of an adjustable screw saddle allows for flexible lifting ranges, providing added versatility for various service applications.
Certifications & Compliance
Certifications
GS CertifiedCE Compliant
Technical Specifications
Lifting Performance
2 Ton
Capacity (Small Model)
4 Ton
Capacity (Large Model)
Model Dimensions

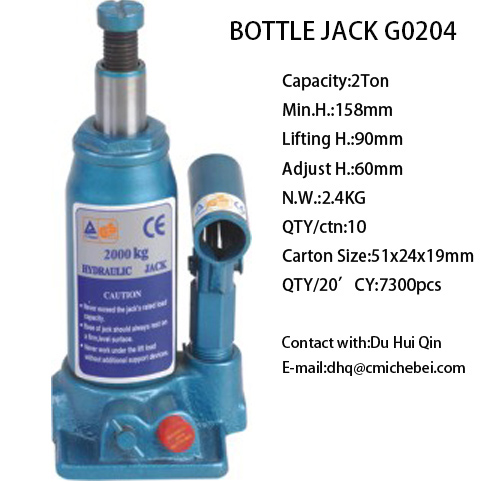

| Model | Min Height (mm) | Lifting Height (mm) | Adjustable Height (mm) | Net Weight (kg) |
|---|---|---|---|---|
| G0204 | 158 | 90 | 60 | 2.4 |
| G0404 | 195 | 125 | 60 | 3.5 |
Logistics
Packaging & Shipping
- Model G0204: 10 pieces per carton (51x24x19mm)
- Model G0404: 8 pieces per carton (47x26x23mm)
- 20' Container Capacity (G0204): 7300 pieces
- 20' Container Capacity (G0404): 5032 pieces
Features
- Key Features
- Adjustable screw saddleReinforced stress pointsWide rugged baseHigh stability
