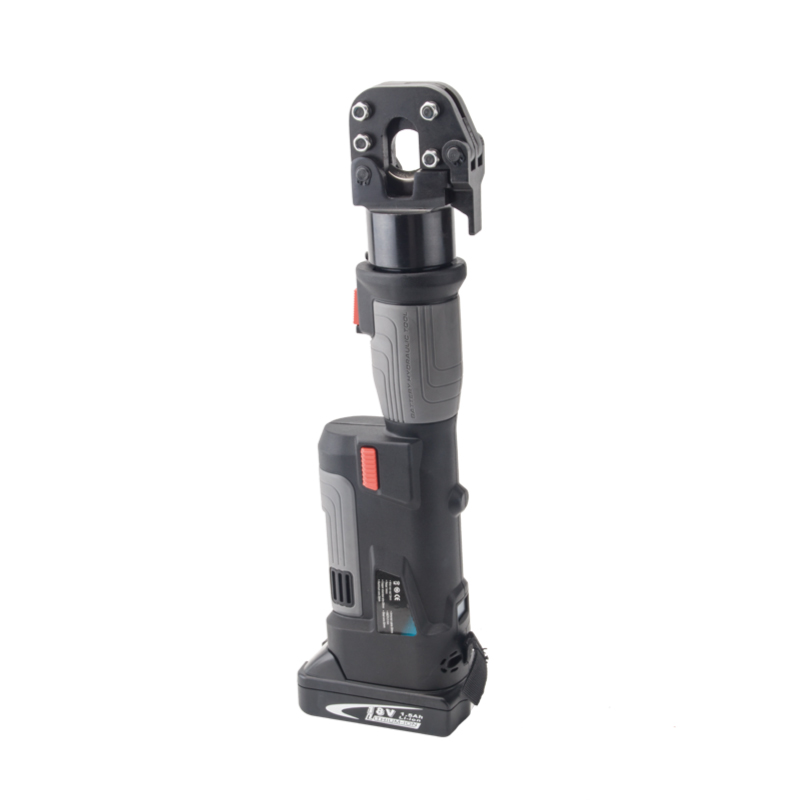

Hydraulic Battery Cable Cutter
This battery-powered hydraulic cutting tool is designed for various cutting applications. The hydraulic system ensures smooth and efficient cutting performance, suitable for cutting copper, aluminum, steel, and other materials.
Technical Specifications
Overview
Professional Hydraulic Cutting Solution
This high-performance hydraulic cable cutter is engineered for precision and efficiency in demanding electrical and construction environments. Featuring a microcomputer-controlled system and a double-piston pump, it offers rapid blade approach and controlled cutting motion for optimal results. The tool is designed with user safety and ergonomics in mind, including an OLED display for real-time monitoring, auto-reset functionality, and a temperature-sensitive automatic shut-off to prevent overheating.
Cutting Performance
Rated Pressure
50 KN
Rated Pressure
Cutting Capacities
| Material | Max Diameter |
|---|---|
| Steel rope | 20mm |
| Mild iron rod | 13mm |
| Rebar | 14mm |
| Cu/Al cable | 20mm |
| Armored cable | 20mm |
| ACSR | 21mm |
| Steel wire | 20mm |
Technical Specifications
- Stroke Length
- 26 mm
- Hydraulic Oil
- Shell Tellus T15# S2V HV15 (approx. 60ml)
- Ambient Temperature
- -10 to 40°C
Power & Battery
- Battery Specifications
- DC 18V, 1.5Ah
- Charging Time
- 30 mins
Physical Properties
- Weight (with battery)
- 3.1 kg
- Dimensions
- 119 x 408 x 75 mm
Features
Key Features
- Microcomputer control system with double safety protection
- OLED dot matrix display for monitoring
- Auto-reset and manual pressure release
- 180° rotatable cutting head
- Acoustic warning for low battery or pressure deviation
- Thermal protection (auto-stop at >60°C)
- Ergonomic non-slip rubber grip
Accessories
- Included Accessories
- 2x Battery1x ChargerCylinder Sealing Ring SetSafety Valve Sealing Ring Set
