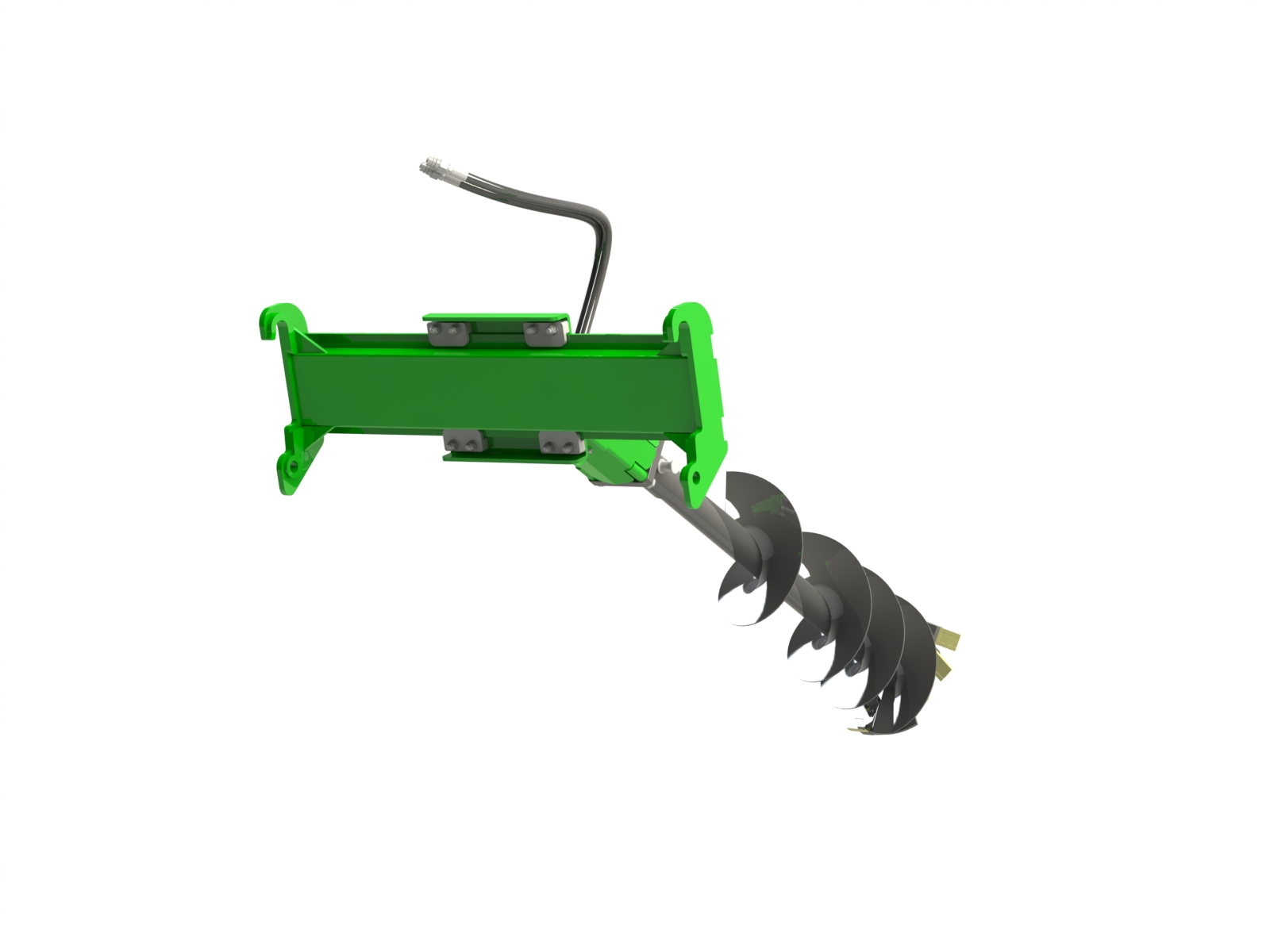

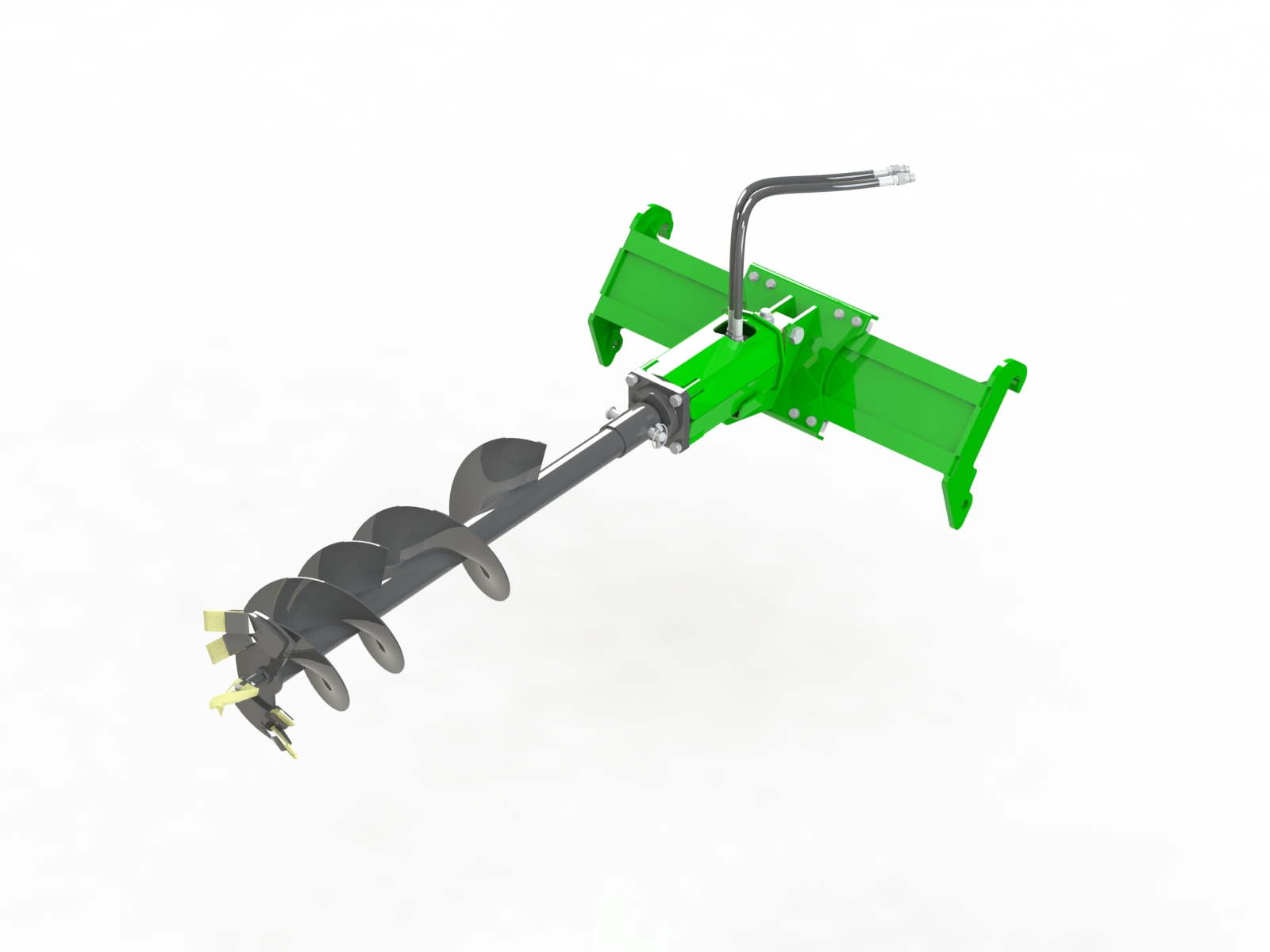

Hydraulic Auger Attachment for Excavators
This hydraulic auger attachment is designed for excavators to provide efficient drilling. It features a robust hydraulic motor and auger with hardened cutting teeth.
Technical Specifications
Overview
Versatile Hydraulic Excavator Attachments
This range of hydraulic-driven attachments is engineered for versatility and durability across agricultural, municipal, and construction applications. Designed for seamless integration with farm loaders, mini excavators, and municipal vehicles, these units feature robust hydraulic drives for consistent performance. Whether for hole digging, mulching, or vegetation maintenance, these attachments offer a durable solution for demanding professional environments.
Technical Specifications
- Weight
- 103 kg
- Dimensions (LxWxH)
- 2070 x 1060 x 440 mm
- Auger Diameter
- 300 mm
- Auger Depth
- 1300 mm
Performance Metrics
Key Performance Metrics
1,770 Nm
Max Torque
25 kW
Power Rating
19 MPa
Max Pressure
70 L/min
Max Oil Flow
- Operating RPM
- 55-65 rpm
- Motor Model
- BMSY106
Compatibility & Features
Mulching Capabilities
- Grass
- Canes
- Bushes
- Pruning up to 5 cm diameter
- Compatible Vehicles
- TractorsFarm LoadersMini ExcavatorsMunicipal Vehicles
- Mounting Type
- Euro-style mounting bracket
