Technical Specifications
Product Overview

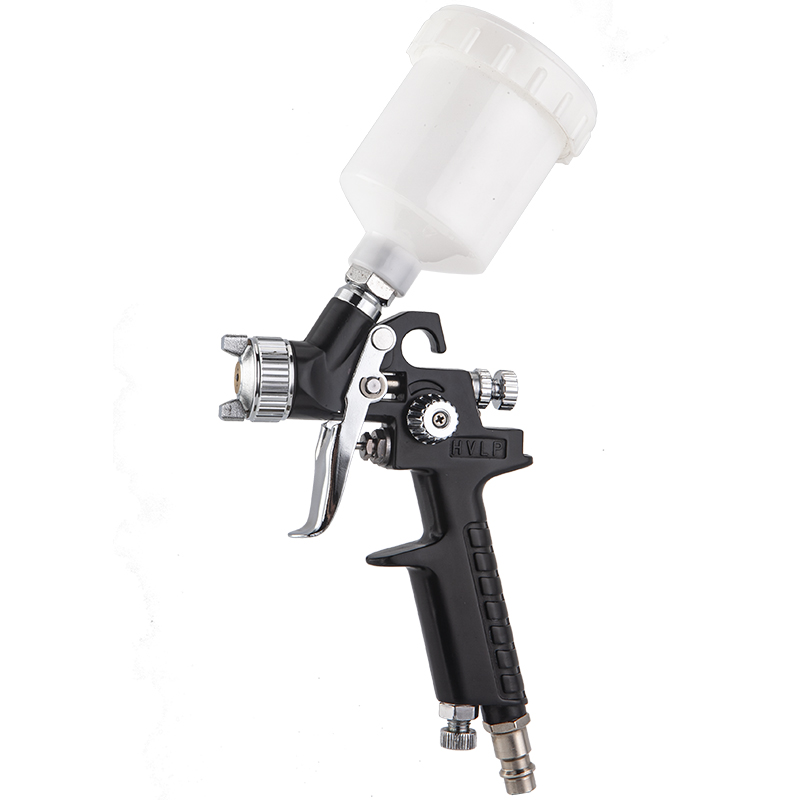

Professional HVLP Spraying Performance
This HVLP (High Volume Low Pressure) mini air spray gun features a durable die-cast aluminum body designed for ergonomic comfort and longevity. Its advanced design ensures high transfer efficiency, saving up to 25% in time and paint while significantly reducing overspray and mist. Equipped with a stainless steel nozzle and needle, it is compatible with aqueous-based paints, making it an ideal choice for high-adhesive surface finishing and coating applications.
Technical Specifications
Air Consumption
1 CFM
Min Air Consumption
4 CFM
Max Air Consumption
- Nozzle Size
- 0.8 mm
- Nozzle Range
- 0.8 - 1.0 mm
- Fluid Delivery Rate
- 70-110 ml/min
- Cup Capacity
- 100 ml
Operational Requirements
- Operating Pressure
- 30 PSI / 2.1 Kg/cm²
- Air Inlet Size
- 1/4 inch
Design & Customization
Construction Materials
- Die-cast aluminum body
- Stainless steel nozzle
- Stainless steel needle
- Available Finishes
- Polished MetalPowder CoatedChrome-platedNickel-platedAnodized
