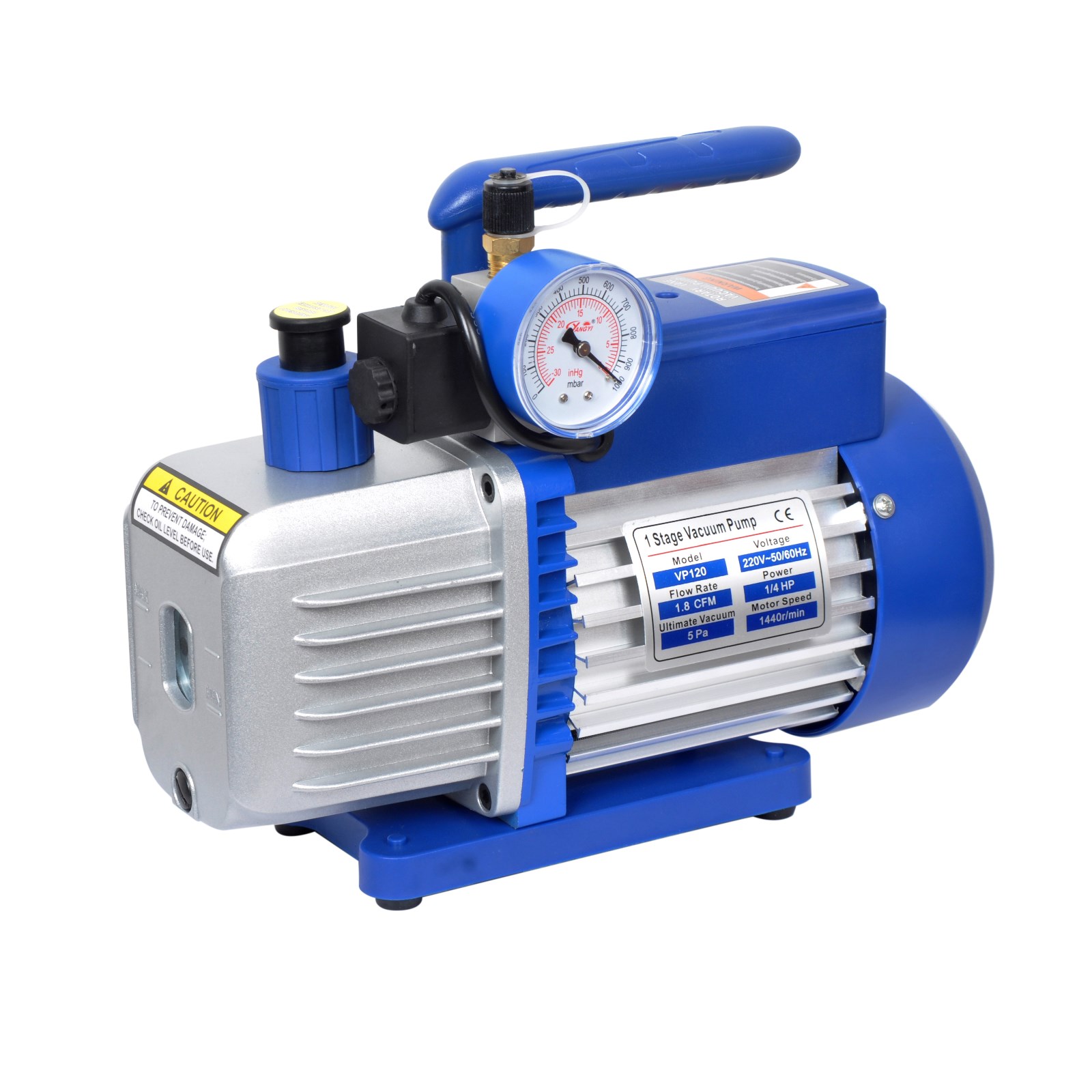

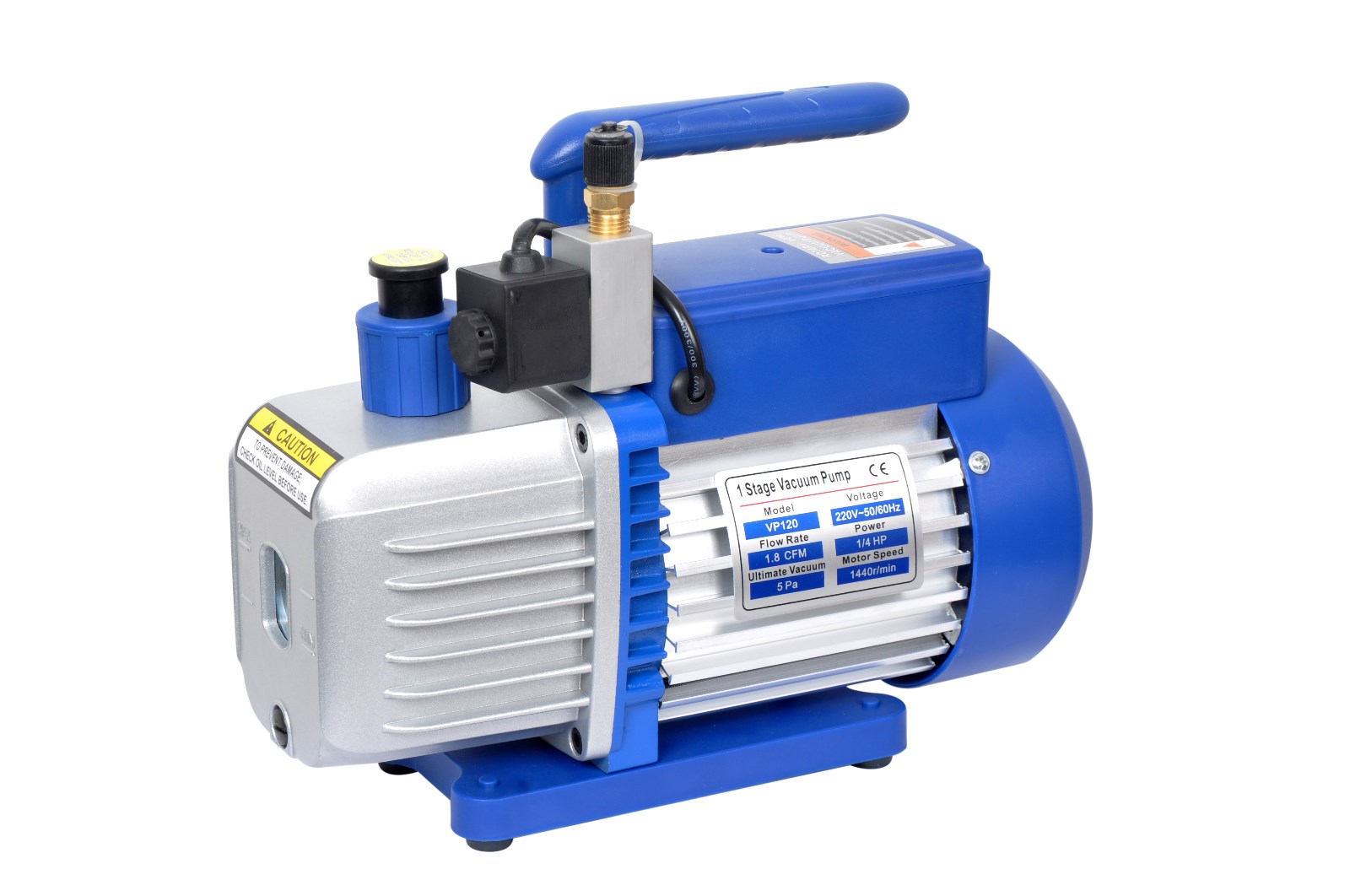

HVAC Refrigerant Vacuum Pump
This HVAC refrigerant vacuum pump is designed for air conditioning system maintenance. Its dual-stage design ensures thorough evacuation for optimal AC system performance.
Technical Specifications
Overview
Professional HVAC Vacuum Pump

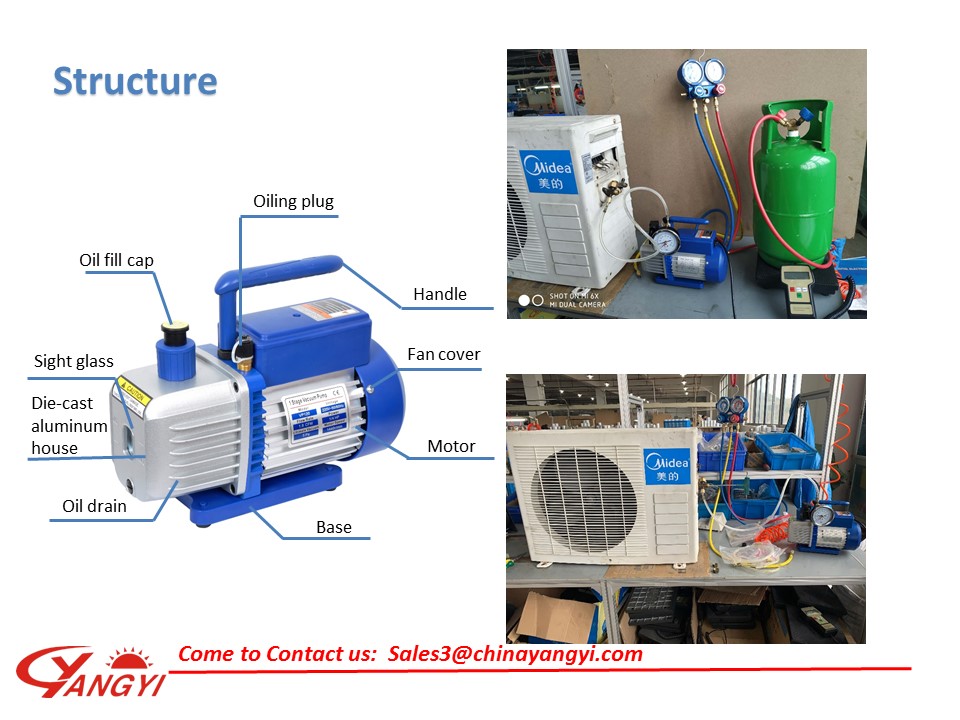

This high-performance vacuum pump is engineered for the efficient evacuation of air conditioning and refrigeration systems. Featuring a robust, integral pump body design and a low-speed motor, it delivers reliable and quiet operation with an extended service life. The unit is equipped with essential maintenance features, including an oil level indicator and heat-removal windows, ensuring safe and consistent performance for HVAC professionals.
Technical Specifications
- Flow Rate
- 1.8 CFM
- Ultimate Vacuum
- 5 Pa
- Motor Power
- 1/4 HP
- Motor Speed
- 1440 r/min
- Voltage
- 220V~50/60Hz
Features
- Design Highlights
- Integral pump bodyLow working noiseCopper wire motorShockproof base

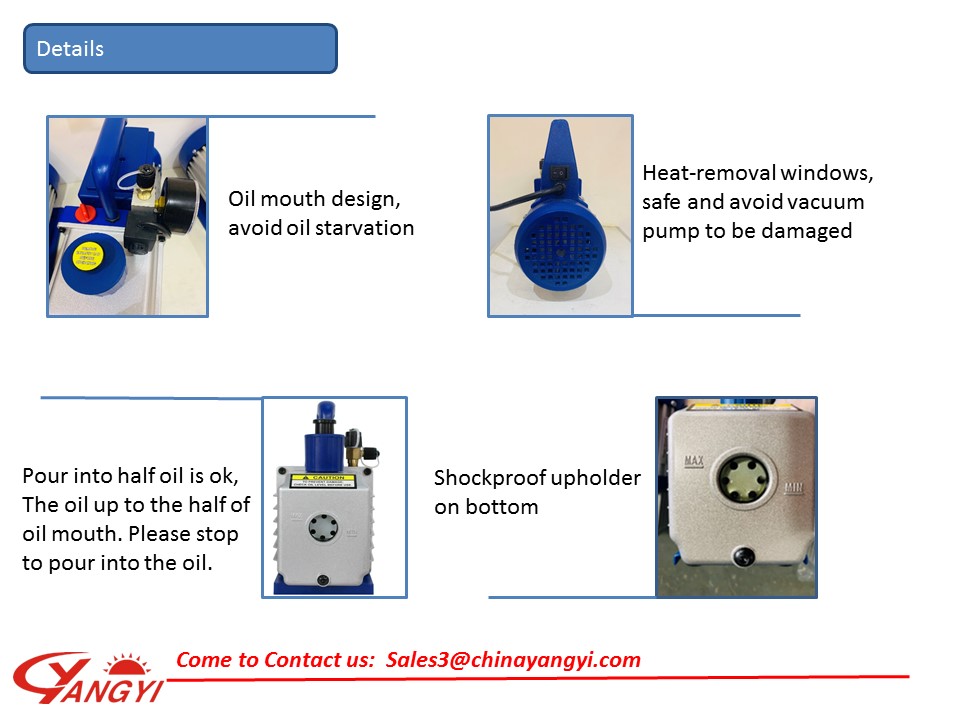

Maintenance
Maintenance Indicators
- Check oil level before use
- Maintain oil level at half of oil mouth
- Use heat-removal windows to prevent overheating
- Ensure shockproof upholder is stable
