HVAC Motor Run Capacitor
This CBB65 series capacitor is designed for HVAC and refrigeration systems. It is used for motor start and run applications and incorporates built-in protection.
Technical Specifications
Product Overview

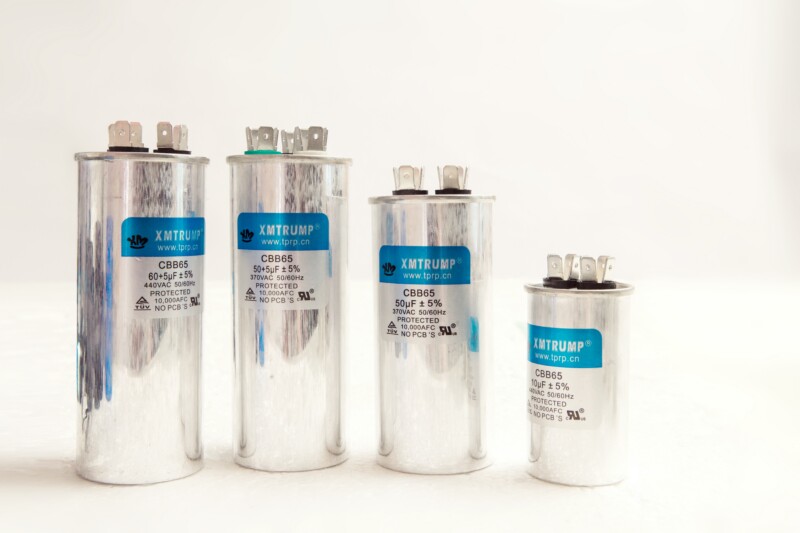

CBB65 Series HVAC Capacitor
The CBB65 series capacitor is engineered specifically for HVAC and refrigeration systems, facilitating reliable motor start and run operations. Featuring a robust round metal case and an integrated anti-explosion device, these capacitors are built for safety and durability. They offer low dissipation factors, high insulation resistance, and excellent self-healing properties to handle impact currents and overloads effectively.
Technical Specifications
- Available Capacitance
- 60+5µF50+5µF50µF10µF5µF
- Voltage Ratings
- 370VAC440VAC
- Frequency
- 50/60Hz
- Capacitance Tolerance
- ±5%
Safety & Compliance
Safety Features
Anti-explosion deviceProtectedNo PCBs
Interrupting Capacity
10,000 A
AFC Rating
Design & Construction
Construction
- Round-shape metal case
- Dual lug terminals
- Self-healing material
- Quick-connect terminals
