Hot Air Pipe Dryer
The hot air pipe dryer utilizes a heated air stream within pipes and cyclones to efficiently remove moisture from materials. It is suitable for drying powdery, flake, and heat-sensitive materials.
Technical Specifications
Overview
Hot Air Pipe Dryer

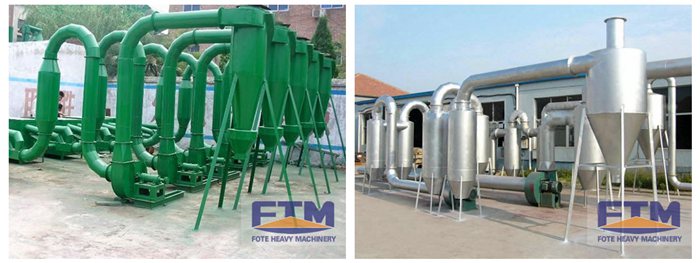

The Hot Air Pipe Dryer, also known as an airflow dryer, is an industrial solution designed for rapid, efficient moisture removal in powdery, flake, and heat-sensitive materials. Utilizing direct heating and a continuous impulse drying process, it maximizes contact between hot air and materials to ensure high-quality, consistent output. Its flexible, foldable design allows for efficient installation, making it an ideal choice for the chemical, food, medicine, and agricultural industries.
Key Features
- Key Benefits
- Direct HeatingQuick DryingFoldable DesignLow Energy ConsumptionSimple Operation
Applications
Suitable Materials
- Starch
- Rice Flour
- Food Products
- Pharmaceuticals
- Chemicals
Technical Specifications
Performance Data
| Model | Evaporative Water (kg/h) | Installed Power (KW) | Floor Space (㎡) | Height (m) |
|---|---|---|---|---|
| Q50 | 50 | 6.25(8.25) | 20 | 9 |
| QG50 | 50 | 6.25(8.25) | 20 | 9 |
| JG50 | 50 | 9.25(11.25) | 20 | 9 |
| Q100 | 100 | 8.6(11.6) | 32 | 11 |
| QG100 | 100 | 8.6(11.6) | 32 | 11 |
| JG100 | 100 | 16.1(19.1) | 32 | 11 |
| Q250 | 250 | 20(27.5) | 64 | 16 |
| QG250 | 250 | 20(27.5) | 64 | 16 |
| JG250 | 250 | 31(38.5) | 64 | 16 |
| Q500 | 500 | 33(48) | 96 | 16 |
| QG500 | 500 | 33(48) | 96 | 16 |
| JG500 | 500 | 48(58) | 96 | 16 |
| Q1000 | 1,000 | 63(78) | 120 | 16 |
| QG1000 | 1,000 | 63(78) | 120 | 16 |
| JG1000 | 1,000 | 78(98) | 120 | 16 |
