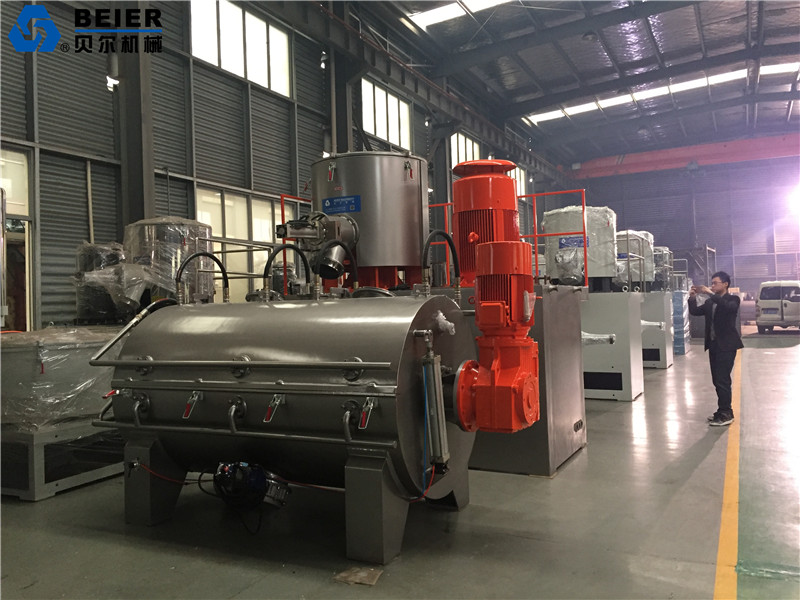

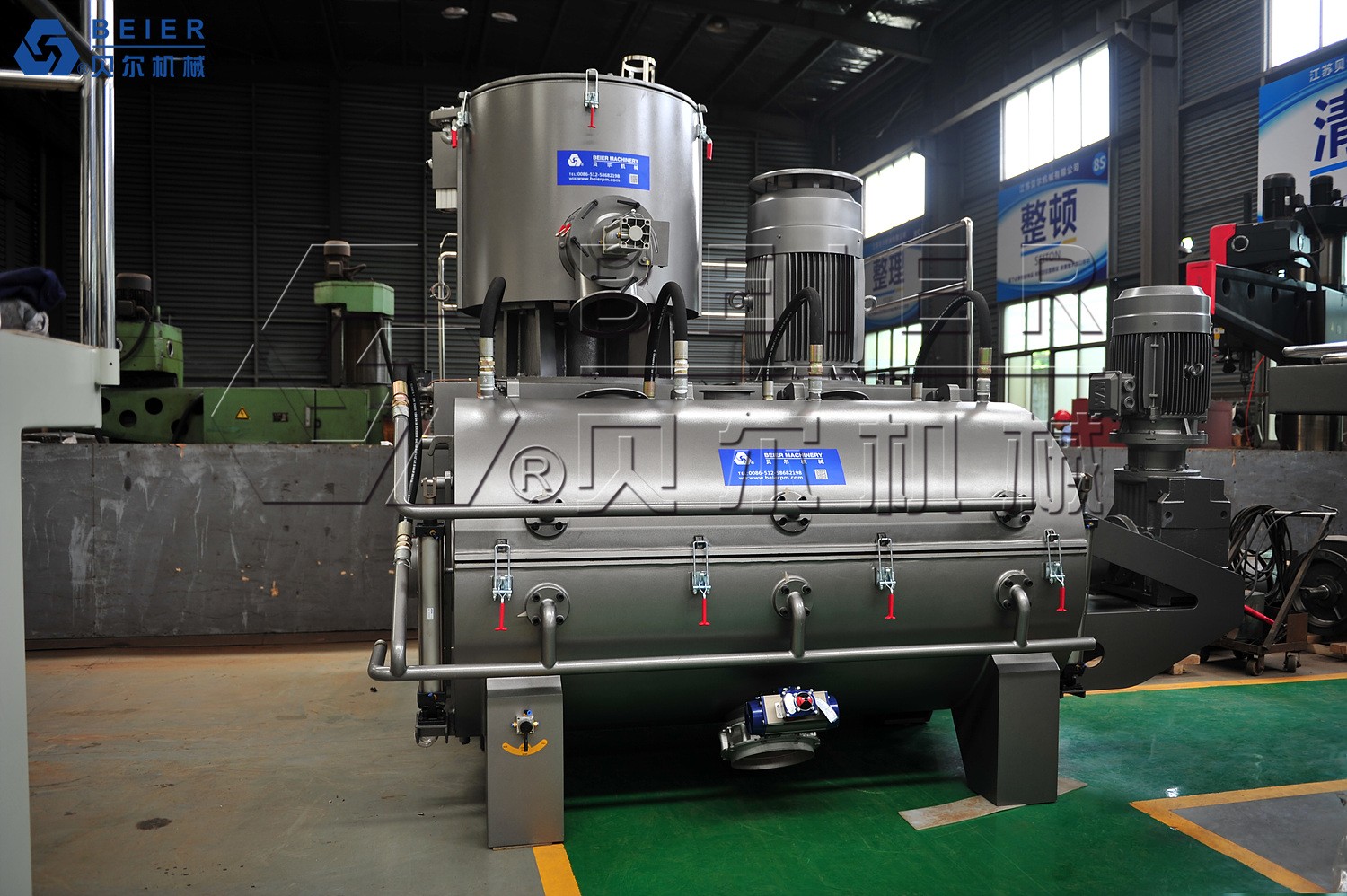

Horizontal Hot and Cooling Mixer
This horizontal mixer is used for mixing, stirring, drying, and coloring plastics, rubber, and chemicals. It is designed with a spiral stirring structure to avoid dead angles, ensure quick cooling and thorough discharging, and provide high mixing efficiency.
Technical Specifications
Product Overview
Industrial Horizontal Hot and Cooling Mixer
The SRL-W series is an advanced horizontal mixing unit designed for high-efficiency processing of plastic and rubber materials. It integrates precise heating and cooling functions to maintain optimal temperature control, ensuring uniform material distribution and consistent product quality. Engineered for durability and performance, this system is ideal for industrial extrusion and compounding applications requiring robust operation and precise mixing parameters.
Technical Parameters
Model Specifications
| Total Volume (L) | Effective Capacity (L) | Mixing Time (min) | Weight (kg) | Output (kg/h) |
|---|---|---|---|---|
| 300/1000 | 225/700 | 8-12 | 3,300 | 495 |
| 500/1500 | 330/1000 | 8-15 | 4,200 | 825 |
| 800/2000 | 600/1500 | 8-15 | 5,500 | 1,320 |
| 1000/3000 | 700/2100 | 8-15 | 6,500 | 1,650 |
| 800*2/4000 | 1200/2700 | 8-15 | 8,000 | 2,640 |
Operational Metrics
Key Performance Indicators
2,640 kg/h
Max Output Capacity
8,000 kg
Max Unit Weight
15 min
Max Mixing Time
- Suitable Industries
- Plastic ProcessingRubber CompoundingIndustrial Extrusion
