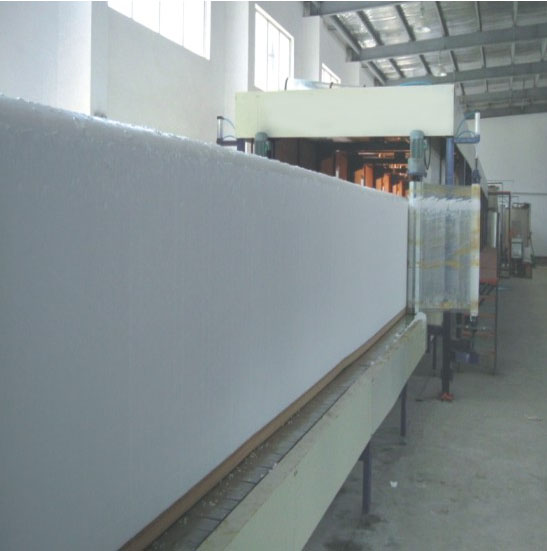

Horizontal Continuous Polyurethane Foam Machine
This machine is designed for producing soft and rigid urethane foam with densities from 10 to 70 kg/cm3. It is suitable for use in furniture, shoes, electronics, packaging, and other industries, and is available with full automatic computer control and manual control.
Technical Specifications
Product Overview
Horizontal Continuous Foaming Solution
This horizontal automatic continuous foaming machine is engineered for the high-volume production of both soft and rigid polyurethane foam. Featuring dual-mode operation with full automatic computer control and manual override, it ensures precise chemical mixing and consistent output. It is an ideal solution for diverse industries ranging from furniture and footwear to aviation and industrial insulation.
Technical Specifications
- Model
- KX-1300
- Operating Voltage
- 380V AC
- Mixing Head Power
- 30 KW
- Total Power Consumption
- 120 KW
Dimensions and Capacity
- Machine Dimensions
- 1750 x 400 x 300 cm
- Overall Length
- 16.9 M
- Conveyor Belt Length
- 50 M
Performance
Supported Foam Density
10 kg/cm3
Min Density
70 kg/cm3
Max Density
- Foam Compatibility
- Soft Urethane FoamRigid Urethane Foam
Applications
Suitable Industries
- Furniture Manufacturing
- Chest Circumference/Apparel
- Footwear
- Electronics
- Packaging
- Aviation & Spaceflight
- Conveyance
- Heat Preservation/Insulation
