Horizontal Big Span Roll Forming Machine
This horizontal type big span roll forming machine is engineered for efficient and precise metal forming. It is designed to produce large span profiles with high accuracy and consistency.
Technical Specifications
Overview
Horizontal Big Span Roll Forming Machine
This horizontal type roll forming machine is engineered for the efficient production of large-span structural metal profiles. Designed for industrial versatility, it features a robust construction capable of handling various forming tasks including straight sheet, arch sheet, and sewing operations. The system incorporates an advanced hydraulic drive and precise control mechanisms, making it an ideal solution for manufacturing high-quality, large-scale structural components.
Technical Specifications
Motor Power Configuration
5.5 kW
Forming Power
4 kW
Bending Power
4 kW
Cutting Power
3 kW
Conical Power
- Total Weight
- 13000 kg
Performance
Working Speed
| Operation Type | Speed |
|---|---|
| Straight sheet | 15 m/min |
| Arch sheet | 13 m/min |
| Sewing | 10 m/min |
Model Comparison
Available Models
| Model | Feeding Width | Effective Width | Proper Span |
|---|---|---|---|
| YY-305E | 600mm | 305mm | 4m-26m |
| YY-610E | 914mm | 610mm | 7m-38m |
| YY-680E | 1000mm | 680mm | 10m-36m |
| YY-800E | 1250mm | 800mm | 15m-42m |
Features
- Capabilities

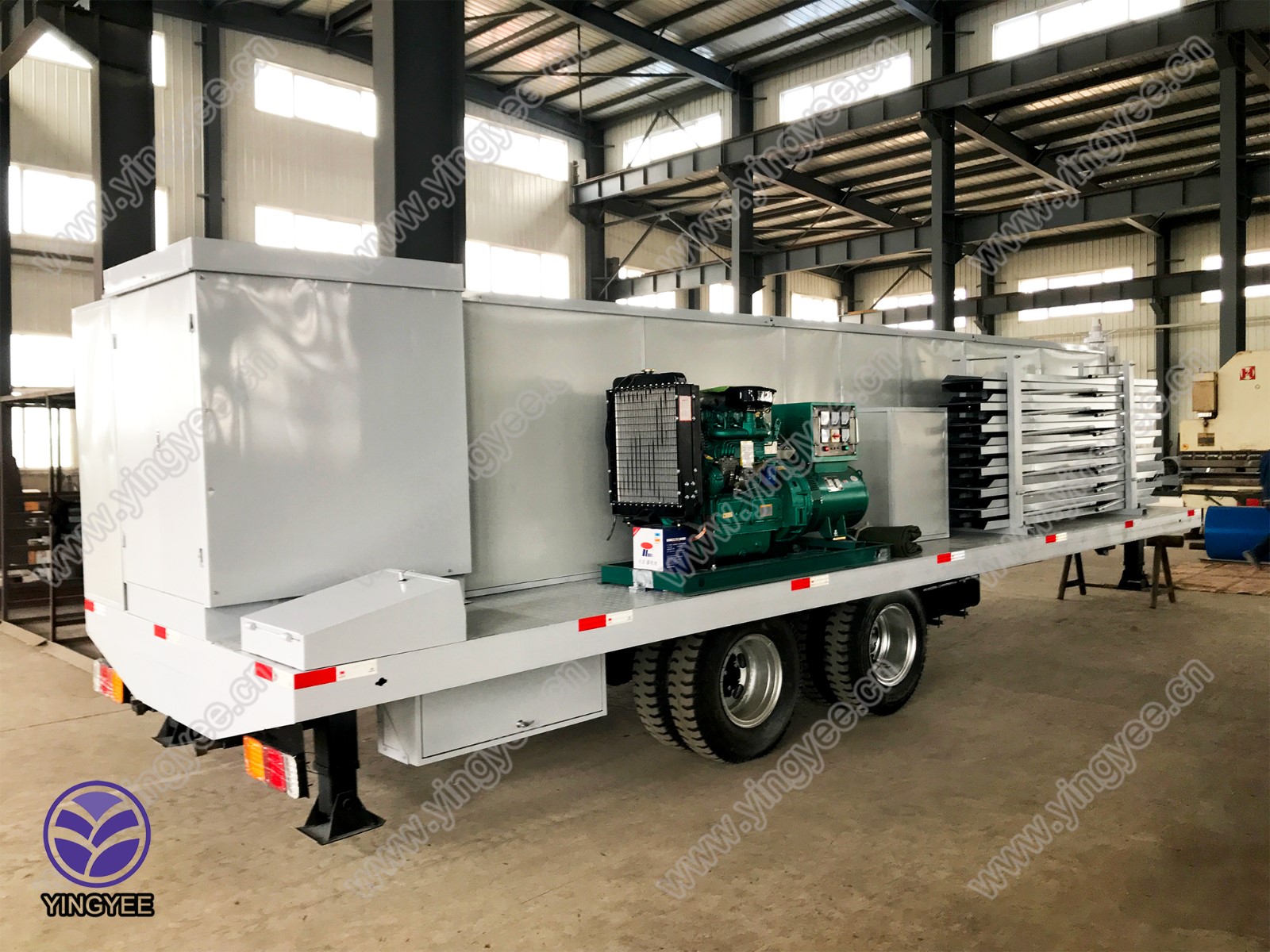

- Straight sheet formingArch sheet formingSewingPanel cut-offMobile trailer mounting
