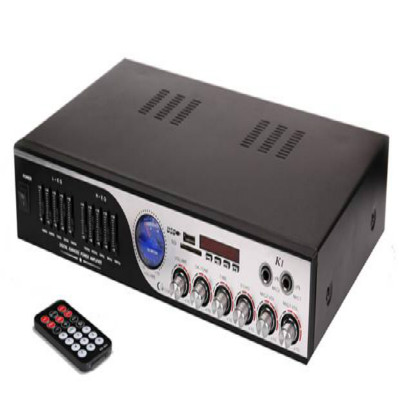

Home Theater Amplifier with USB, SD, FM, and Microphone Inputs
This home theater amplifier provides a comprehensive audio solution for home entertainment. It features USB, SD card, FM, and microphone inputs for versatile audio playback and karaoke capabilities.
Technical Specifications
Overview
High-Performance Home Theater Amplifier
This versatile home theater amplifier serves as a comprehensive audio hub for home entertainment systems. It features integrated support for digital media playback via USB and SD card slots, alongside an FM radio tuner for diverse listening options. Designed with karaoke enthusiasts in mind, the unit includes dual microphone inputs with adjustable echo and delay settings to customize your vocal performance.
Audio Performance
Output Power
25 W x 2CH
Output Power
- Frequency Range
- 20Hz - 20KHz
- Signal-to-Noise Ratio
- 80 dB
- Stereo Separation
- 30 dB
- Channel Separation
- 50 dB
Connectivity & Inputs
- Input Sources
- USBSD CardFM RadioMicrophone
- Microphone Input Impedance
- 600 ohm
- Line-in Impedance
- 10Kohm - 47 Kohm
Technical Specifications
Karaoke Control
- Delay Adjustment (non-polar)
- Time Range: 50ms-200ms
- Microphone Volume Control
- Power Supply
- DC12VAC220V
- Speaker Impedance
- 4 - 8 ohm
- FM Tuning Range
- 87.5 - 108.0 MHz
