Highway Guardrail Roll Forming Machine for Steel Profiles and Roof Sheets
This roll forming machine efficiently produces highway guardrails, steel profiles, and roof sheets. It utilizes a series of rollers to gradually shape the metal into the desired profile.
Technical Specifications
Overview
High-Efficiency Roll Forming Solution
This industrial roll forming machine is engineered for the high-volume production of highway guardrails, profile steel, and roof sheets. It utilizes a series of precision-engineered rollers to gradually shape metal into desired profiles with high consistency and dimensional accuracy. Designed for durability and minimal material waste, the system features automated feeding and cutting mechanisms to streamline manufacturing and reduce labor costs.
Technical Specifications
- Main Motor Power
- 18.5 KW
- Hydraulic Station Power
- 11 KW
- Processing Speed
- 8 m/min
- Number of Roller Stations
- 16
- Principal Axis Diameter
- 95 MM
- Yield Strength
- 32 MPa
Machine Components
- Roller Material
- 45# steel with hard chrome plating
- Hydraulic Oil Pump Model
- CB-E310
- Sprocket Specification
- P-50.8
Application & Features

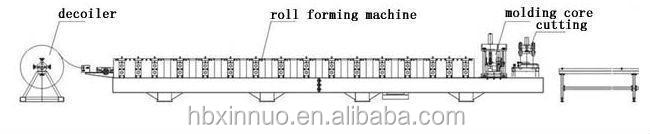

System Components
- Decoiler
- Leveling System

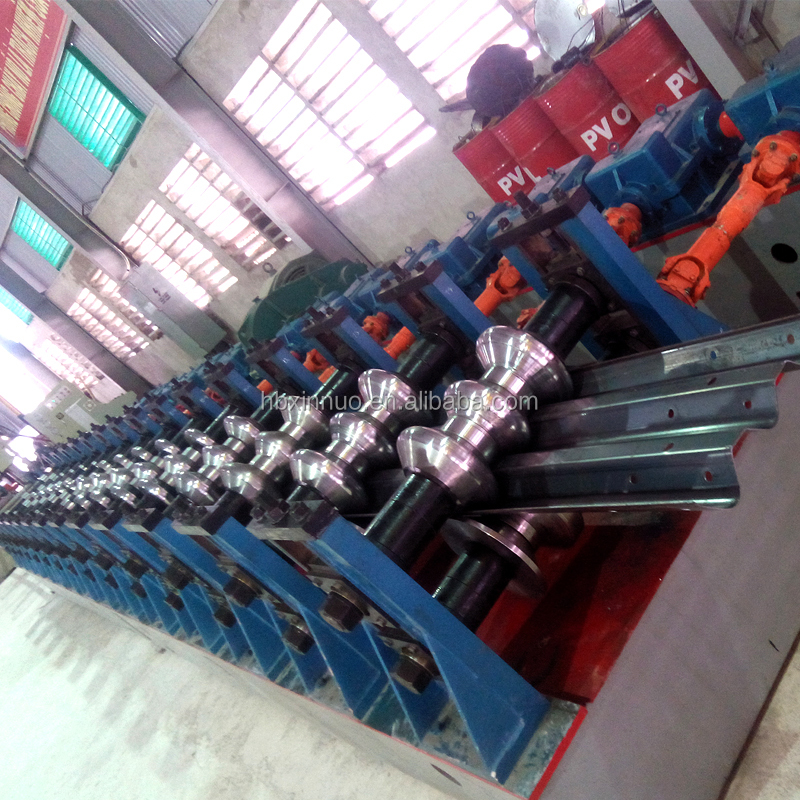

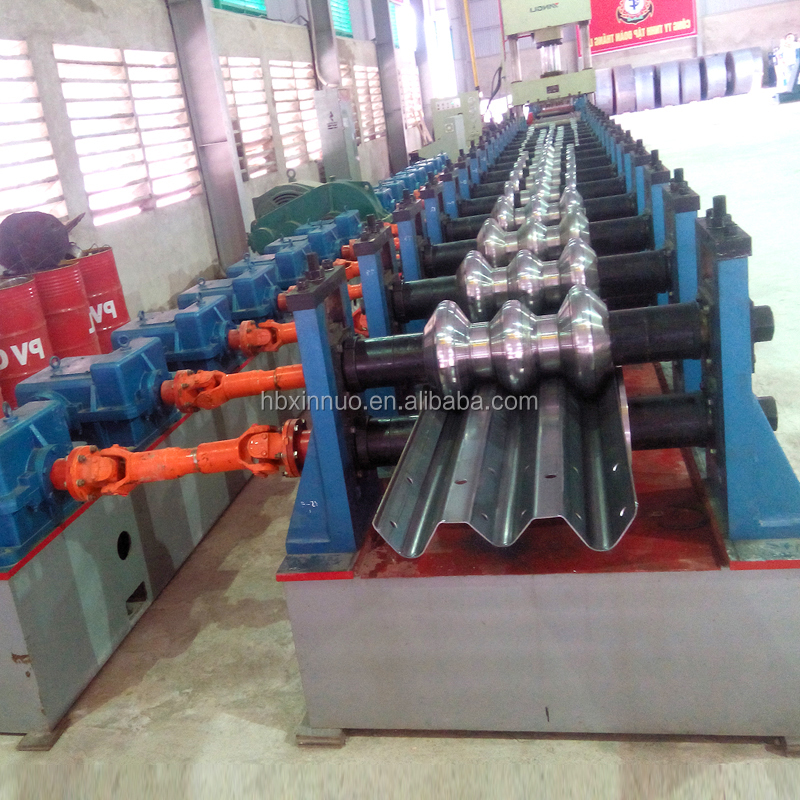

- Forming Stations
- Hydraulic Cutting System
- Run-out Table
- Control Panel
- Primary Applications

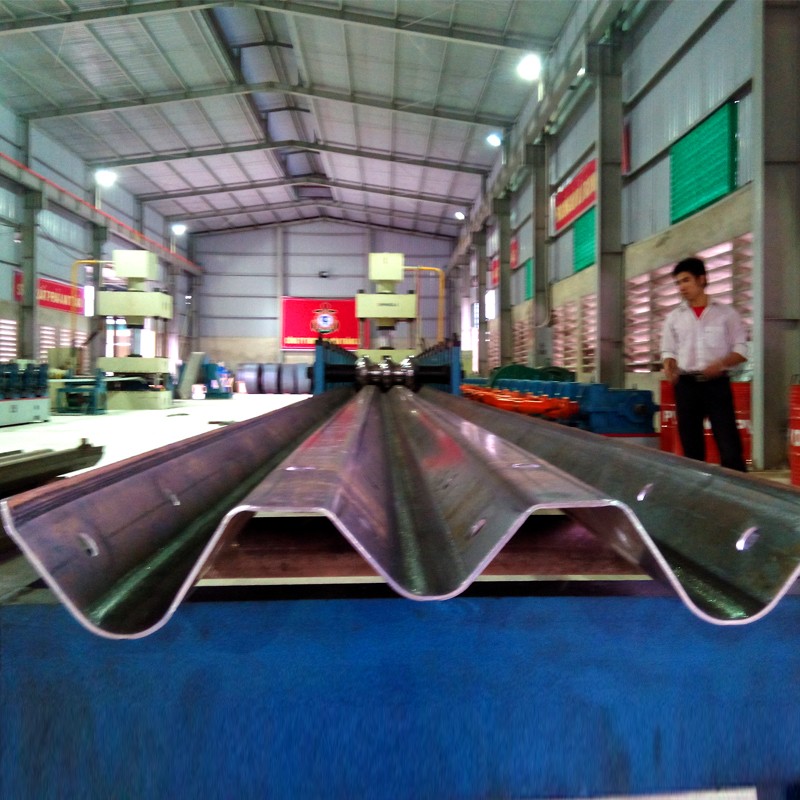

- Highway GuardrailsProfile SteelRoof Sheets
