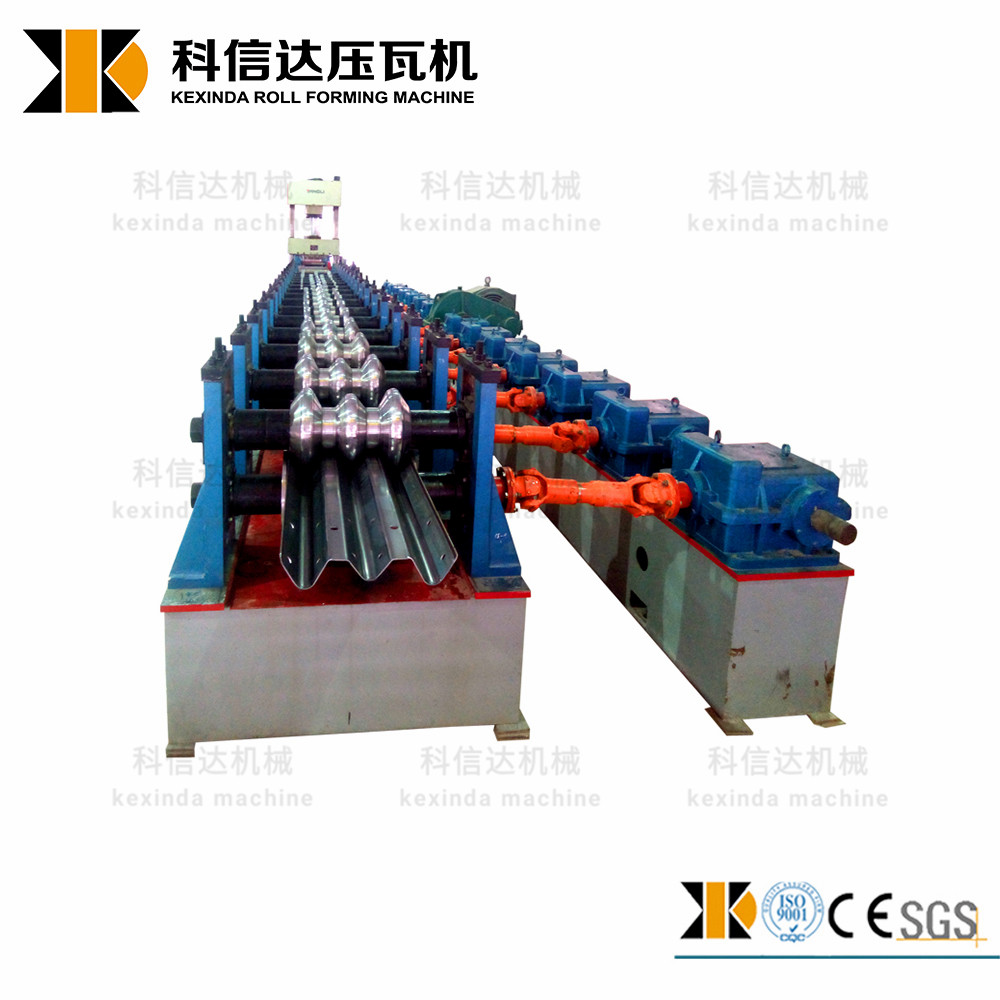

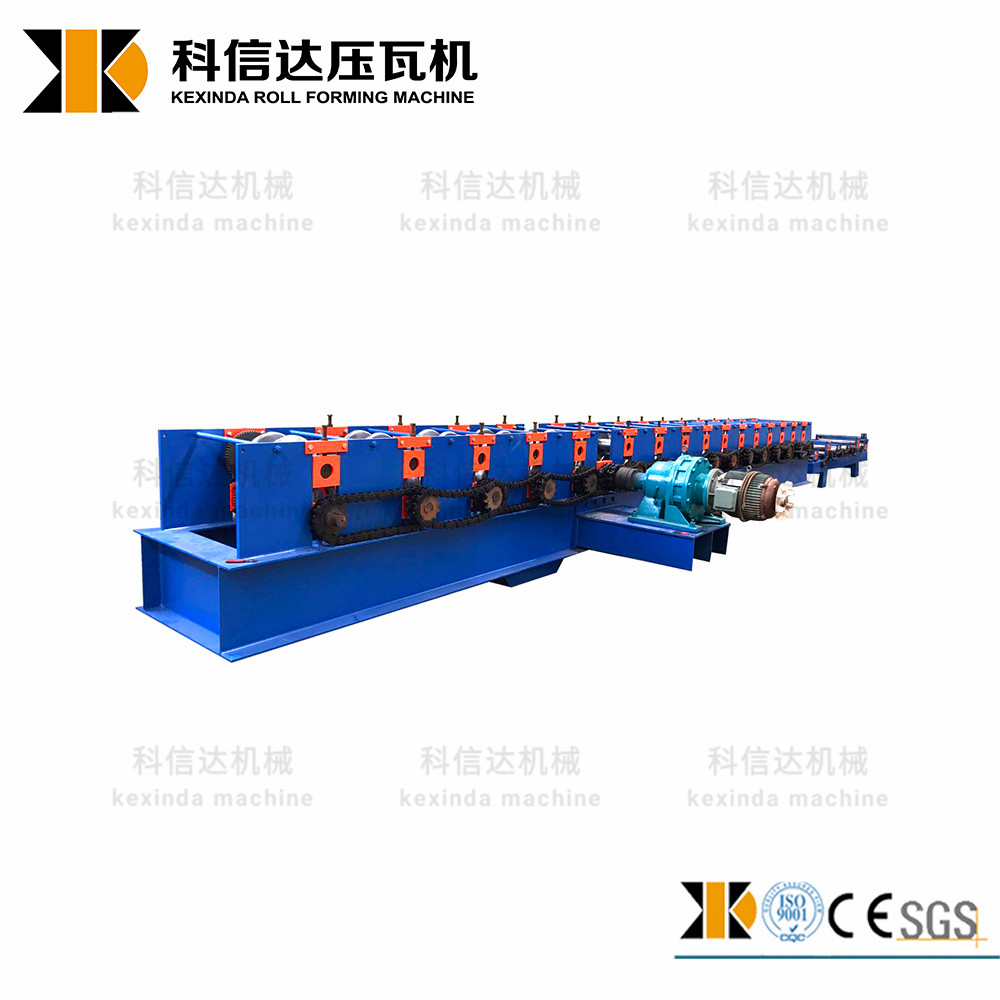

Highway Guardrail Roll Forming Machine

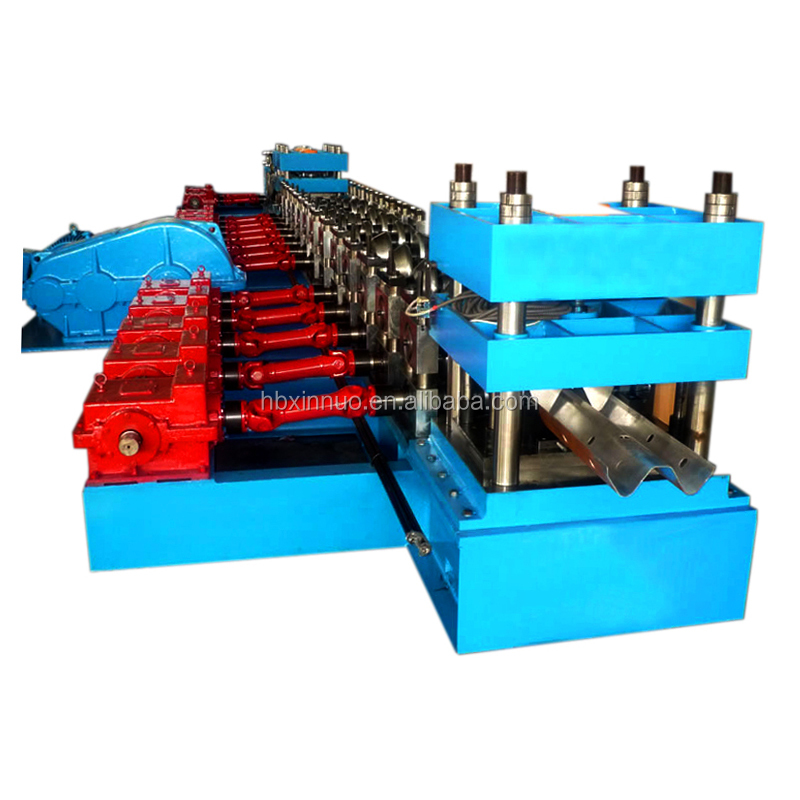

This highway guardrail roll forming machine is engineered for the efficient production of guardrails. It uses a series of rollers to gradually shape the metal into the desired profile.
Technical Specifications
Overview
High-Efficiency Guardrail Production

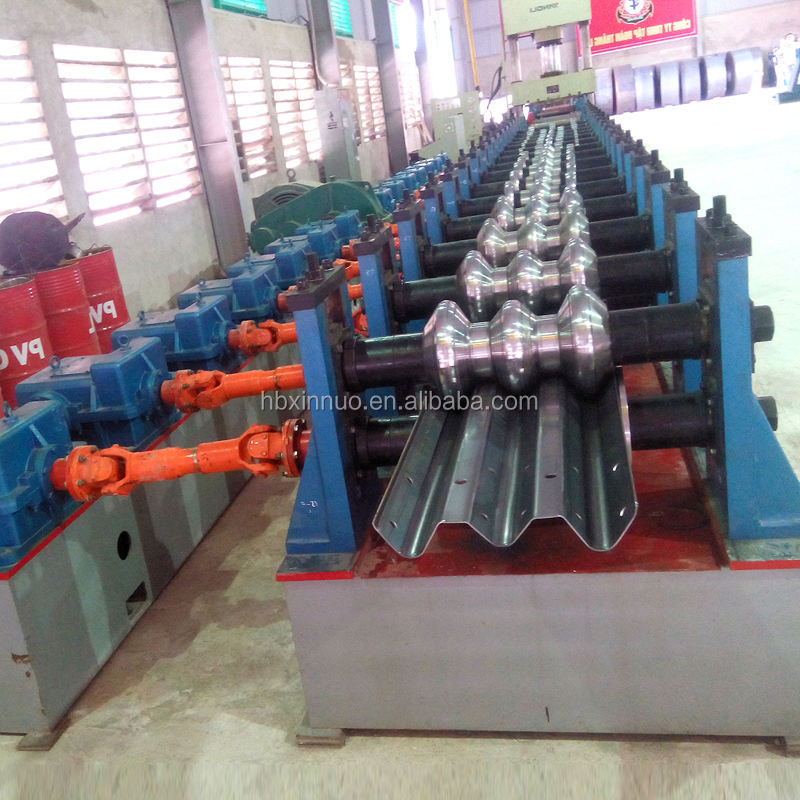

This highway guardrail roll forming machine is designed for the efficient, high-volume production of metal guardrails. It utilizes a robust, multi-station roller system to gradually shape metal strips into precise profiles with high consistency. Engineered for durability and ease of operation, it features an automated control system and heavy-duty construction suitable for demanding industrial manufacturing environments.
Technical Specifications
- Main Motor Power
- 18.5 kW
- Hydraulic Station Power
- 11 kW
- Roller Stations
- 16
- Processing Speed
- 8 m/min
- Compatible Material Thickness
- 0.3-4 mm
- Yield Strength
- 32 MPa
- Principal Axis Diameter
- 95 mm
Components & Materials
- Roller Material
- 45# steel with hard chrome plating
- Blade Material
- Cr12
- Hydraulic Oil Pump Model
- CB-E310
Dimensions & Logistics
- Installation Dimensions (L x W x H)
- 10.5 x 1.4 x 1.2 meters
- Sprocket Specification
- P-50.8
