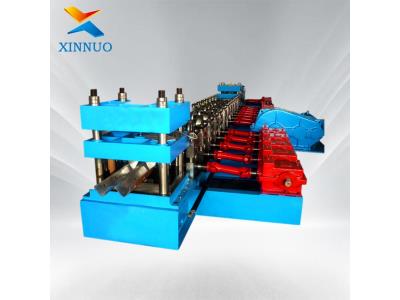

Highway Guardrail End Wing Roll Forming Machine
This cold roll forming machine manufactures end wings for highway guardrails. It uses rollers to gradually shape metal sheets into the desired profile.
Technical Specifications
Product Overview
Highway Guardrail End Wing Production

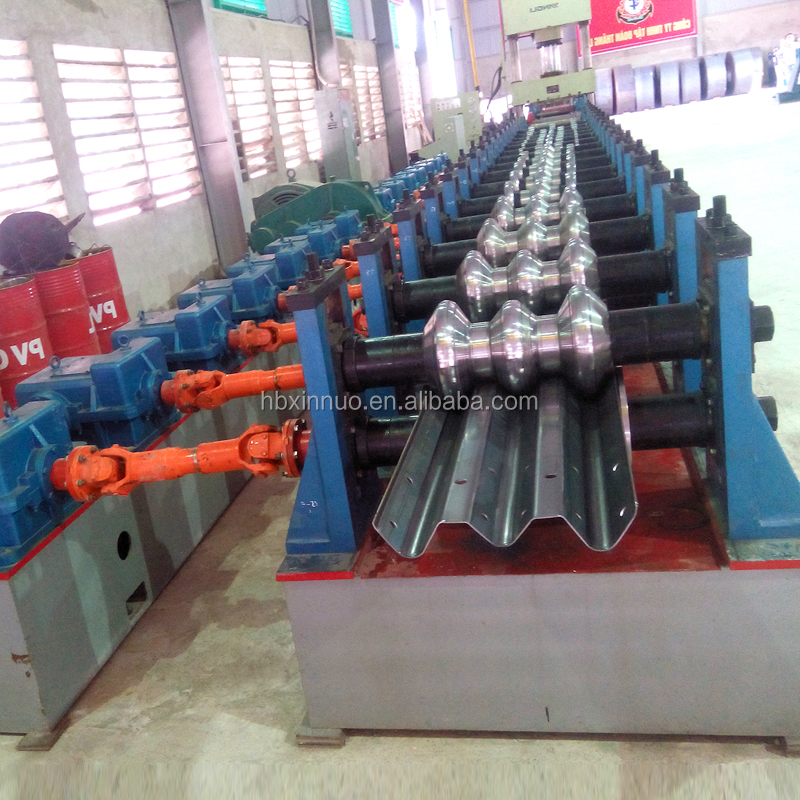

This cold roll forming machine is engineered for the high-volume, efficient manufacturing of highway guardrail end wings. It utilizes a multi-stage rolling process to gradually shape metal sheets into precise profiles, ensuring structural integrity and safety compliance. Designed for durability and consistent output, the system integrates robust drive components with advanced control systems to support demanding industrial production environments.
Technical Specifications
- Main Motor Power
- 18.5 KW
- Hydraulic Station Power
- 11 KW
- Processing Speed
- 8 m/min
- Number of Roller Stations
- 16
- Diameter of Principal Axis
- 95 mm
- Yield Strength Capacity
- 32 MPa
Machine Components
- Roller Material
- 45# steel with hard chrome plating
- Hydraulic Oil Pump Model
- CB-E310
- Sprocket Specification
- P-50.8
Compliance
- Quality Certifications
- ISO 9001:2008GB/T19001-2008
