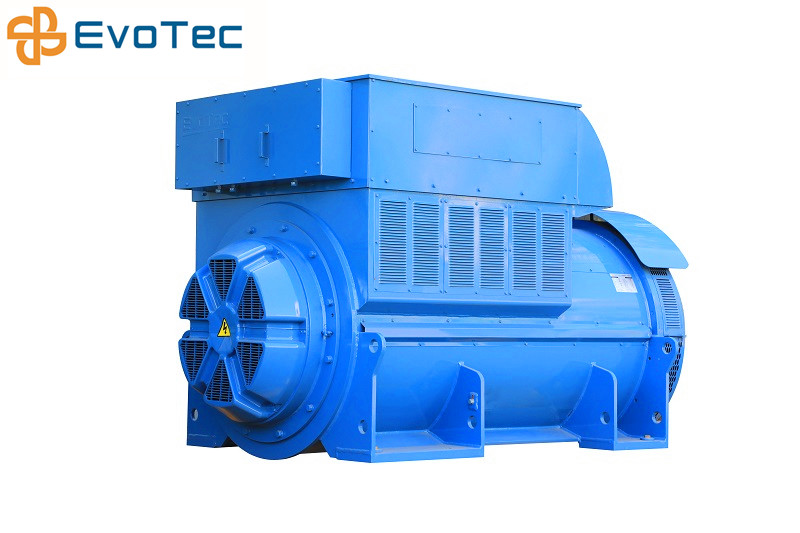

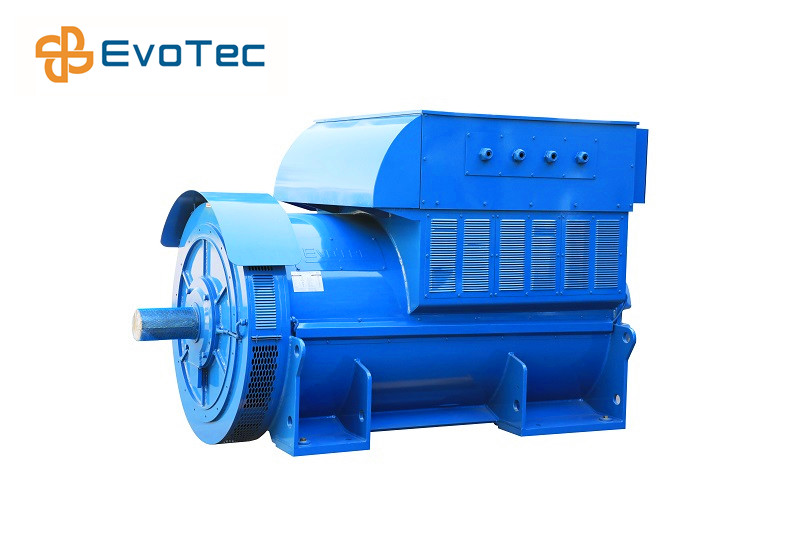

High Voltage AC Alternator
The high voltage AC alternator provides power ranging from 400KW to 1000KW and capacity from 500KVA to 1250KVA. It is designed with IP23 to IP55 degree of protection and F/H insulation class.
Technical Specifications
Overview
High-Performance Alternator
This high-voltage AC alternator is engineered for robust power generation in both industrial and commercial applications. Built with advanced Vacuum Pressure Impregnation (VPI) technology and Class H insulation, it ensures superior durability and protection against environmental factors like humidity and dust. Designed for reliability, the unit supports parallel operation and maintains stable performance even under non-linear loads.
Compliance & Standards
- Certifications
- CEIEC 60034-1GB755BS4999-5000NEMA MG 1.22
Performance
Overload Capacity
10 %
Overload
- Three-Phase Short Circuit Current
- >300% of rated current
- Parallel Operation
- Yes
Technical Specifications
Insulation Class
Class H
Interference Levels
| Parameter | Value |
|---|---|
| TIF | <50 |
| THF | <2% |
Construction Features
- Dynamically balanced rotor
- Vacuum Pressure Impregnation (VPI) for windings
- Dual coated copper wires
- Single/double layer concentric fractional pitched windings
- Protective coating against dust and humidity
