Product Overview

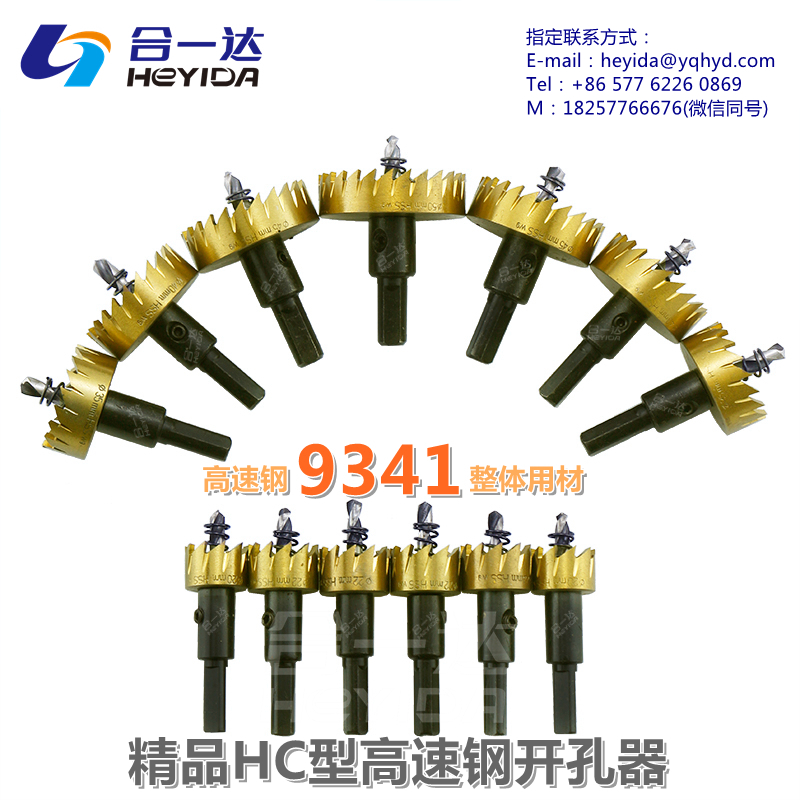

High-Speed Steel Hole Saw
Engineered for precision and durability, this high-speed steel hole saw features 9341 material construction, ensuring exceptional heat treatment stability and resistance to tooth cracking. The cutting edge is enhanced with a chip discharge groove and a titanium-plated surface, significantly extending tool life. Designed for automatic numerical control production, it offers excellent concentricity and minimal vibration, making it the ideal choice for applications requiring strict tolerance levels within 0.2mm.
Technical Specifications
Shank Diameter Configuration
| Hole Saw Size Range | Shank Diameter |
|---|---|
| 12mm - 30mm | 8mm |
| 32mm - 80mm | 10mm |
- Material
- 9341 High Speed Steel
- Surface Treatment
- Titanium Plating
- Working Depth
- 10 mm
- Total Height
- 70±2mm
- Cutting Edge Height
- 58±2mm
- Shank Type
- Triangular Shank
Performance
Performance Metrics
0.2 mm
Tolerance Requirement
10 mm
Working Depth
- Compatible Materials
- Stainless SteelCarbon SteelAluminumAluminum AlloyPlastic
Applications
Common Use Cases
- Home installation
- Security doors and windows
- Electrical switchgear
- Stainless steel installation
