Technical Specifications
Product Overview
High-Performance HSS Saw Blades
These circular saw blades are manufactured from high-speed steel (HSS), specifically the DM05 grade, ensuring exceptional durability and a long service life. Designed for precision metal cutting, they feature precision-ground teeth that deliver clean and accurate results. With a wide range of sizes and tooth configurations available, these blades are suitable for a variety of industrial sawing machines.
Technical Specifications

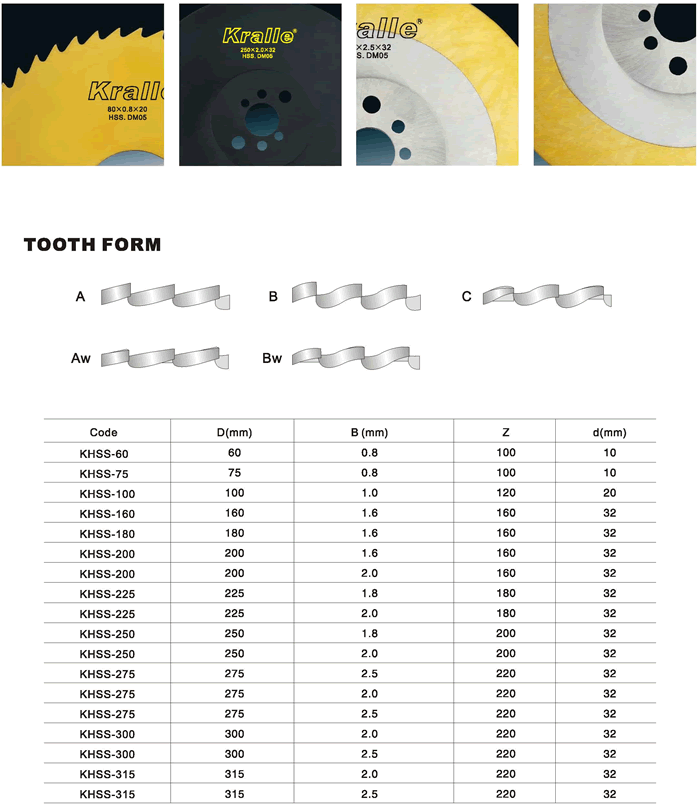

Available Tooth Forms
ABCAwBw
Size Range
60 mm
Minimum Diameter
315 mm
Maximum Diameter
- Material Composition
- HSSDM05
Size & Compatibility Table
Standard Blade Dimensions
| Model Code | Diameter (mm) | Thickness (mm) | Teeth (Z) | Bore (mm) |
|---|---|---|---|---|
| KHSS-60 | 60 | 0.8 | 100 | 10 |
| KHSS-100 | 100 | 1 | 120 | 20 |
| KHSS-160 | 160 | 1.6 | 160 | 32 |
| KHSS-200 | 200 | 1.6 | 160 | 32 |
| KHSS-250 | 250 | 2 | 200 | 32 |
| KHSS-315 | 315 | 2.5 | 220 | 32 |
