Technical Specifications
Overview

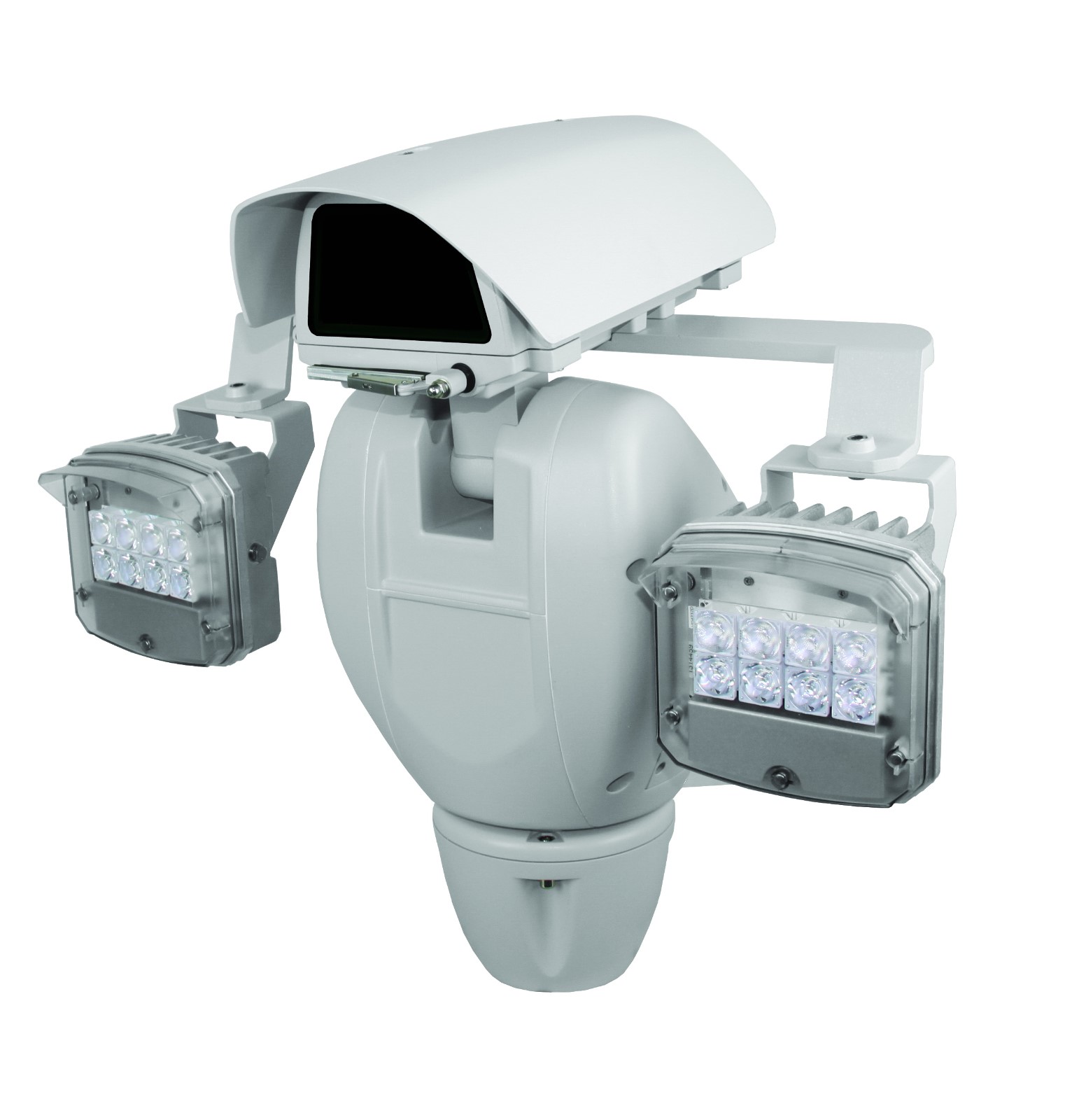

High-Performance PTZ Surveillance
This high-speed PTZ camera is engineered for professional security environments, featuring a high-performance 1/1.8" CMOS sensor that delivers exceptional image clarity with wide dynamic range and noise reduction. Designed for versatility, it offers rapid 360-degree horizontal and vertical pan-tilt movement with precise preset accuracy. With robust IP66-rated protection and integrated long-range infrared illumination, this camera provides reliable, comprehensive surveillance in both indoor and outdoor settings.
Optical Performance
Infrared Range
150 m
IR Distance
250 m
Max IR Distance
- Image Sensor
- 1/1.8" CMOS
- Available Resolutions
- 2MP3MP4MP5MP
Mechanical & Movement
- Horizontal Rotation
- 360°
- Vertical Rotation
- -90° to +40°
- Rotation Speed
- 0.1° - 100°/s
- Preset Accuracy
- 0.02 °
Automation & Intelligence
- Scanning Groups
- 5
- Speed Memory Tracking Groups
- 17
Environmental & Power
Protection Rating
IP66
- Power Input
- AC24VDC24V
- Standby Power Consumption
- 15 W
Connectivity
Network Methods
- Mobile Phone
- WEB Interface
- Client Software
Supported Protocols
Onvif 2.2
