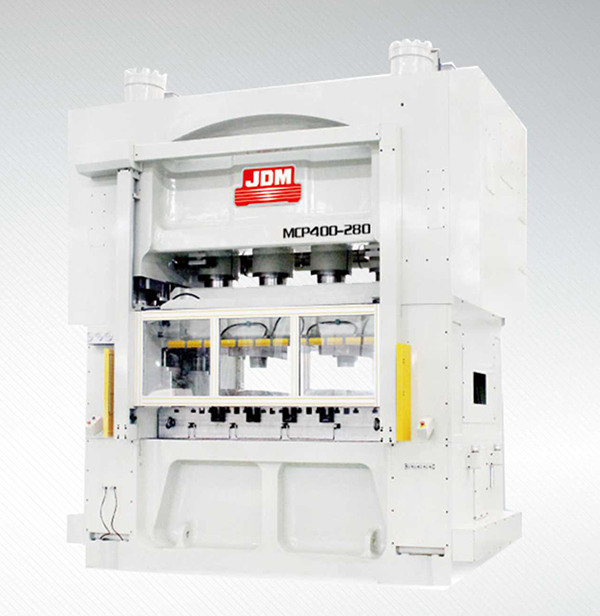

High-Speed Precision Press with Wide Mesa
This high-speed precision press features a wide mesa for enhanced stability. The MCP400 model is engineered for accuracy and speed in demanding industrial environments.
Technical Specifications
Overview
High-Speed Precision Press Series
The MCP400 series is an ultra-precision, high-speed press engineered for demanding industrial manufacturing. Featuring a wide mesa design, these machines deliver exceptional stiffness and dynamic accuracy, making them ideal for high-speed precision stamping of high-hardness materials. With multiple model variants and robust construction, they provide the throughput and reliability required for modern high-efficiency production lines.
Key Features
Engineering Highlights
- Four-columned top cylinder structure
- Double-drive technology with slider multi-point force
- High-rigidity cast pre-stress machine body
- Low inertia clutch brake
- Constant temperature lubricated cooling system
- Straight column + octagonal precision guide
Technical Specifications
Performance Metrics
4,000 kN
Capacity
300 spm
Max Pressing Speed
70 kW
Total Power
Model Specifications Comparison
| Feature | MCP400-280 | MCP400-330 | MCP400-370 |
|---|---|---|---|
| Slide Size (mm) | 2800x1000 | 3300x1000 | 3700x1000 |
| Table Area (mm) | 2800x1200 | 3300x1200 | 3700x1200 |
| Opening Width (mm) | 2850 | 3350 | 3750 |
Operational Capabilities

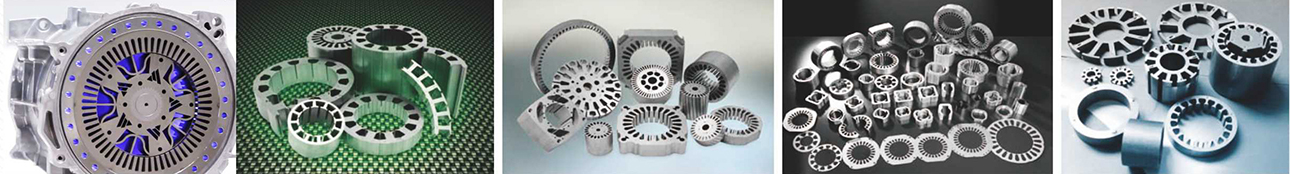

- Processes & Materials
- High-speed stampingFormingBlanking0.2-0.35mm High-hardness materialMotor core riveting
