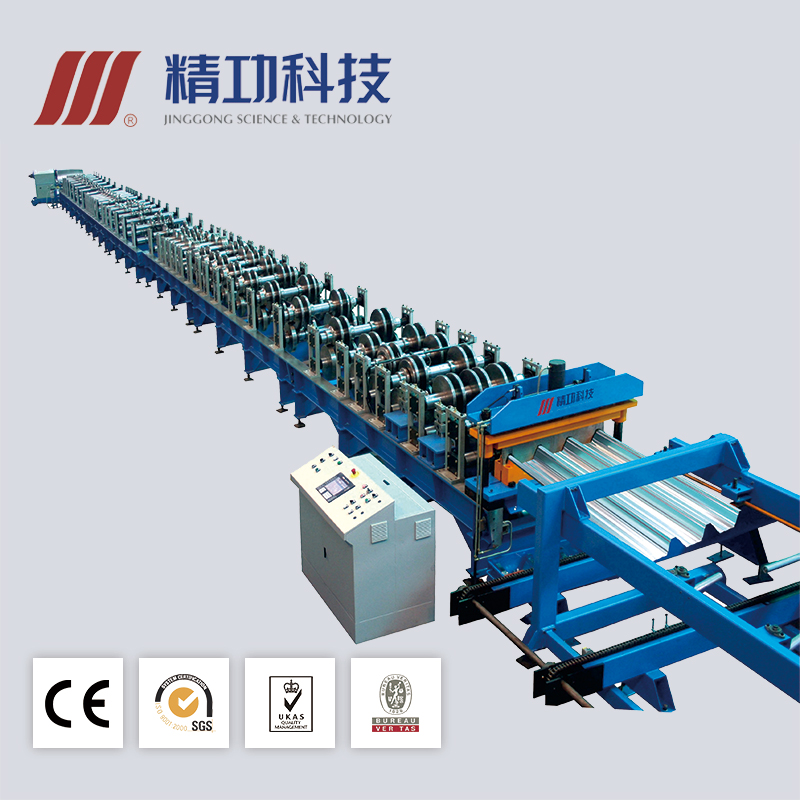

High Speed Metal Roll Forming Machine
The high-speed metal roll forming machine efficiently shapes metal sheets into desired profiles. It utilizes a series of rollers to gradually bend the metal, ensuring precision and consistency.
Technical Specifications
Overview
High-Performance Roll Forming Solution
This high-speed roll forming machine is engineered for fully automated metal processing, integrating cold forming, punching, and stacking into a single continuous line. Designed for precision and efficiency, it supports production speeds up to 60 meters per minute while minimizing material waste through advanced pre-cutting equipment. The system features industrial-grade automation controls and encoder-based length measurement to ensure consistent output across various metal profiles.
Performance Metrics
Maximum Production Speed
60 m/min
Max Speed
Technical Specifications
Automation Features
- Full automatic decoiling
- Automated cold forming
- Automatic cold punching
- Encoder-based length measurement
- Automatic cutting to length
- Automatic stacking and counting
Construction & Design
- Independence guide post supporting wall plate
- Inside transmission chain
- Ion-nitrided and polished rollers
- Flat sheet pre-cutting equipment
Certifications
- Quality Certifications
- CEISO 9001-2000UKAS Quality ManagementBureau Veritas
