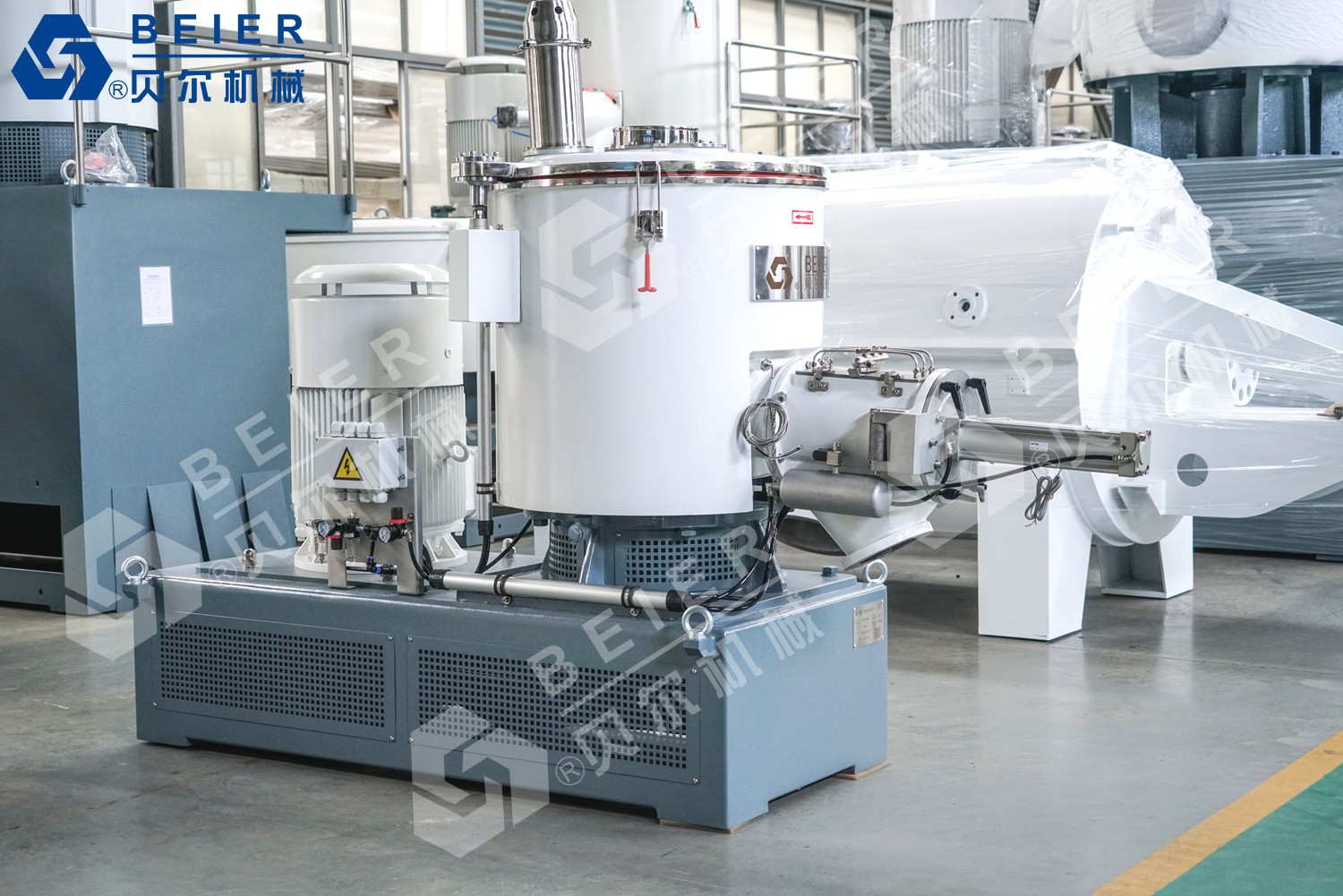

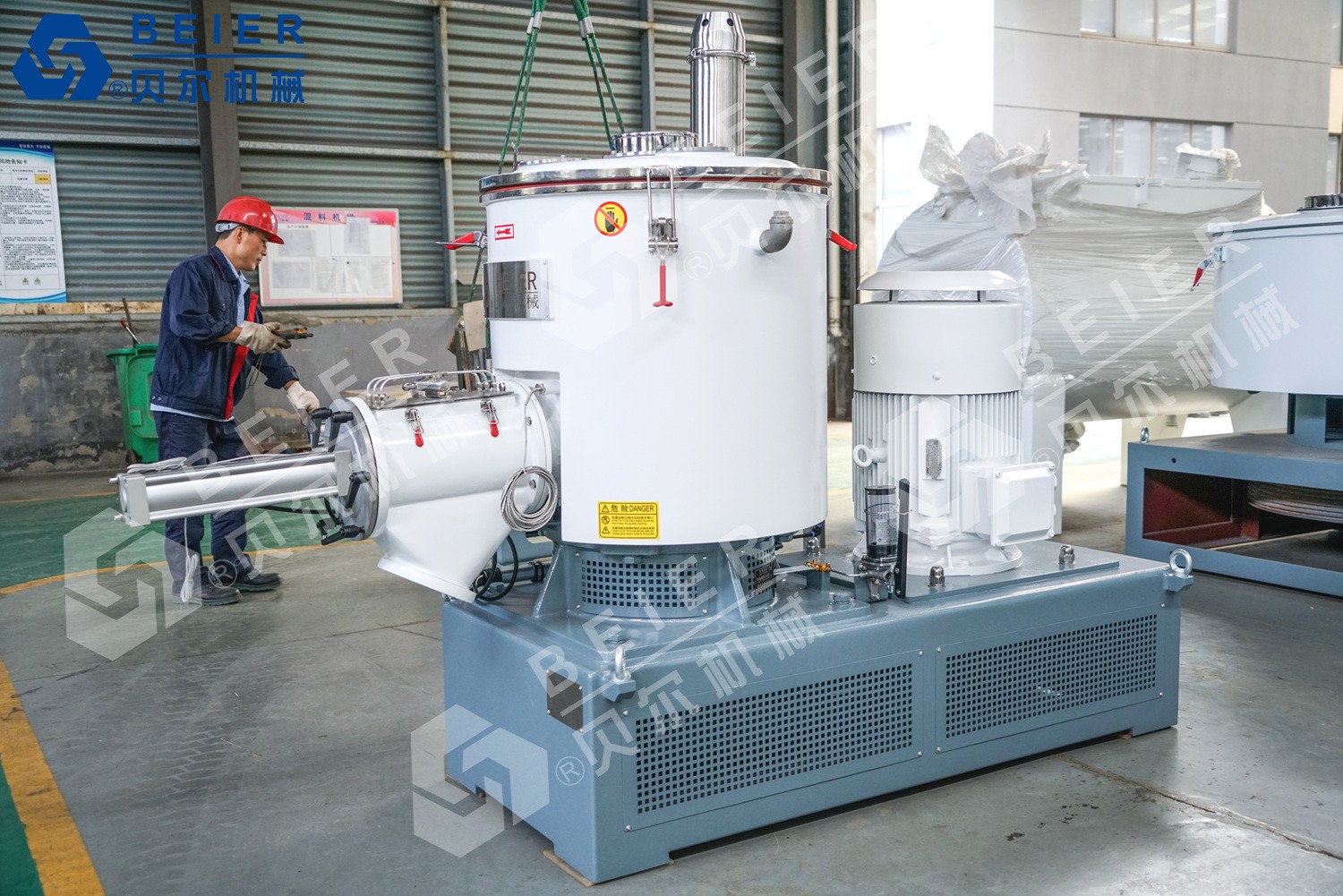

High Speed Hot Mixer 50L-800L
SHR series mixers are used for mixing color concentrates, PVC compounds, and other plastic and rubber materials. They are excellent for mixing color and additives in plastics, rubber, food-stuffs and chemicals.
Technical Specifications
Product Overview
High-Speed Hot Mixer Series
The SHR Series High-Speed Mixers are engineered for efficient compounding, blending, and pre-heating of materials in the plastics, rubber, and chemical industries. These units feature robust stainless steel construction for durability and corrosion resistance, combined with high-performance mixing impellers to ensure homogeneous results. With precise temperature control and integrated safety features like overload protection, these mixers provide reliable, consistent performance for demanding industrial applications.
Technical Specifications
Model Specifications
| Model | Capacity (L) | Motor (kW) | Speed (rpm) | Output (kg/h) |
|---|---|---|---|---|
| SHR-50A | 50 | 7/11 | 750/1500 | 82 |
| SHR-100A | 100 | 14/22 | 650/1300 | 165 |
| SHR-200A | 200 | 30/42 | 475/950 | 330 |
| SHR-300A | 300 | 40/55 | 475/950 | 495 |
| SHR-500A | 500 | 47/67 | 430/860 | 825 |
| SHR-800A | 800 | 83/110 | 370/740 | 1,320 |
| SHR-200C | 200 | 30/42 | 650/1300 | 330 |
| SHR-300C | 300 | 47/67 | 475/950 | 495 |
| SHR-500C | 500 | 83/110 | 500/1000 | 825 |
Operational Features
Safety Features
- Overload protection
- Emergency stop mechanisms
- Heating Methods
- Self-FrictionElectric
- Discharge Methods
- PneumaticHandSelf-Friction
